Storm IP65 4 Key Die Cast Zinc Keypad IP65

Storm IP65 4 Key Die Cast Zinc Keypad IP65 is a robust and vandal-resistant keypad designed for public and outdoor environments. Featuring a durable die cast zinc housing and actuator, this keypad is fully sealed to IP65 standards ensuring protection against dust and water ingress.

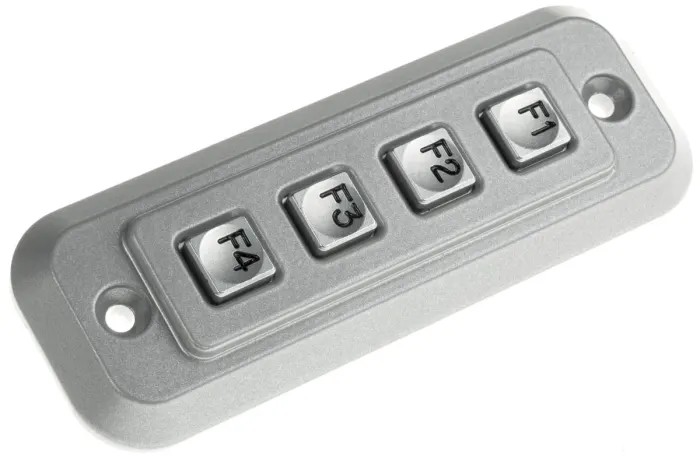

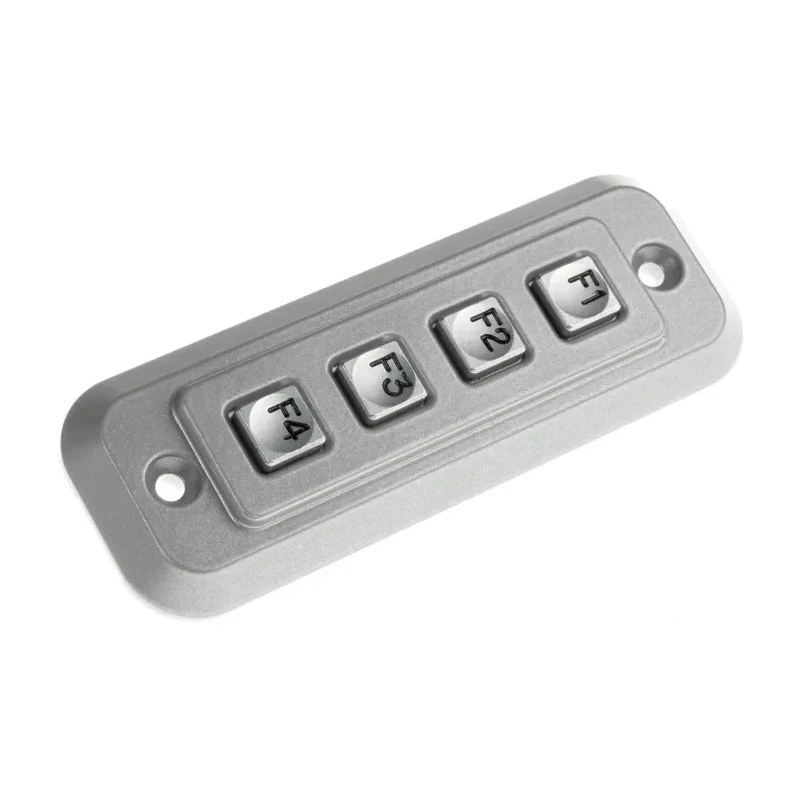

It supports a 4 x 1 key layout without membrane operation, providing reliable and tactile key response. The metal keytops are engraved with clear characters using gold on nickel plated FR4 contact PCB technology to guarantee consistent electrical contact.

Operating in extreme temperatures from -40°C to 100°C, the keypad is engineered to perform in harsh environments such as industrial automation, electrical panels, outdoor kiosks, and security systems. Its contact rating is 50mA at 24V DC with a contact resistance of 100Ω, dielectric strength of 500Vac, and insulation resistance of 50MΩ for electrical safety and performance.

The mechanical life per key exceeds 4 million operations, ensuring long-term durability. The keypad requires a panel cutout of 42.5mm by 118.5mm for installation. Additional accessories such as a back box and privacy shroud are available, supporting flexible mounting and privacy needs.

This product complies with RoHS and CE standards, made in the United Kingdom, making it ideal for demanding industrial, laboratory, construction, and public access applications where high reliability and environmental protection are required.

The keypad features a 4 x 1 key layout without membrane operation for reliable touch response. Constructed with a die cast zinc housing and actuator for excellent strength and vandal resistance. Complies with IP65 rating, making it fully sealed and suitable for exposed outdoor environments.

Guaranteed mechanical life of over 4 million operations per key for long-lasting performance. Designed to operate in a wide temperature range from -40°C to 100°C for versatility in harsh conditions. Metal keytops have engraved characters with gold on nickel plated PCB for superior contact reliability.

Contact rating is 50mA at 24V DC, with contact resistance of 100Ω ensuring consistent conductivity. Robust insulation properties with dielectric strength of 500Vac and insulation resistance of 50MΩ. Panel cutout dimensions are 42.5mm width by 118.5mm height for easy installation.

Back box and privacy shroud available as accessories for enhanced installation options. Explore more in the Keypad Switches category at EnvMart for advanced industrial and electrical switch solutions.
