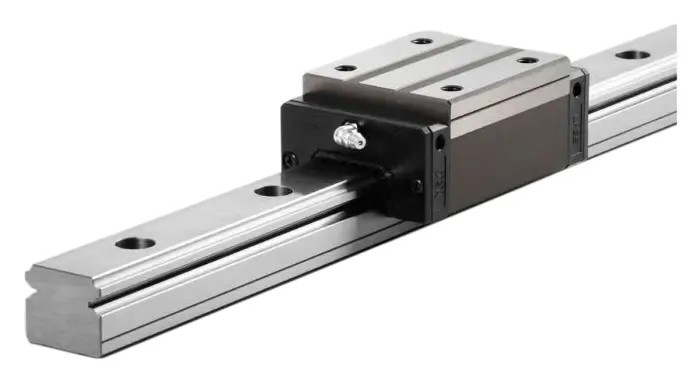

NSK Compact Linear Guide Block NAH20ANCE01KCZ N Series 69.8mm x 44mm Carriage 18800N Dynamic Load NAH20ANCE01KCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | NSK |
| Model | NAH20ANCE01KCZ |
| Series | N |
| Standards/Approvals | ISO14728-2, ISO14728-1 |
| Static Load Rating | 32500N |
| Dynamic Load Rating | 18800N |
| Carriage Length | 69.8mm |
| Carriage Width | 44mm |
| NSK Guide Block LAH20ANZ-K, LHBrand | NSK |
| NSK Guide Block NAH20ANCE01PCZ N/P R 85 N Series, 18800 N Dynamic LoadBrand | NSK |
Key Features
- The guide block features an improved groove design to double life expectancy by increasing contact area between ball and rail slide.
- It has 1.3 times the dynamic load rating compared to previous LS and LH ranges.
- Installation dimensions are fully compatible with existing LH and LS ranges for easy upgrades.
- Ball recirculation path is redesigned for high speed suitability and noise reduction up to 3dB.
- Equipped optionally with NSK’s long-term maintenance free K1 lubrication system.
- Meets ISO14728-1 and ISO14728-2 standards for quality and performance.
- Typical applications include machine tools, robotics, semiconductor manufacturing, automotive production, CT scanners, and automation systems.
Product Description
NSK NAH20ANCE01KCZ Compact Linear Guide Block from the N Series offers superior linear motion performance with a carriage length of 69.8mm and carriage width of 44mm, delivering a dynamic load rating of 18800N and static load rating of 32500N. This guide block incorporates innovative design enhancements to extend service life and improve operational efficiency.
The new groove design significantly increases the contact surface between the ball and the rail slide, doubling the life expectancy over previous models. The dynamic load rating is 1.3 times greater than the older LS and LH ranges while maintaining identical installation dimensions, allowing seamless compatibility with existing systems.
The optimized ball recirculation path supports high-speed applications and reduces noise levels by up to 3 decibels, making it suitable for sensitive environments. Additionally, NSK's advanced K1 lubrication system is available with this guide block, combining mineral oil and polyolefin resin to provide long-term maintenance-free operation.
Conforming to ISO14728-1 and ISO14728-2 standards, the NAH20ANCE01KCZ is ideal for industrial use in machine tools, robotics, semiconductor production, automotive assembly lines, CT scanners, measuring instruments, automation applications, and train platform doors.
The guide block features an improved groove design to double life expectancy by increasing contact area between ball and rail slide. It has 1.3 times the dynamic load rating compared to previous LS and LH ranges. Installation dimensions are fully compatible with existing LH and LS ranges for easy upgrades.
Ball recirculation path is redesigned for high speed suitability and noise reduction up to 3dB. Equipped optionally with NSK’s long-term maintenance free K1 lubrication system. Meets ISO14728-1 and ISO14728-2 standards for quality and performance.
Typical applications include machine tools, robotics, semiconductor manufacturing, automotive production, CT scanners, and automation systems. Discover more high-quality linear motion products from NSK available at EnvMart for your industrial and manufacturing needs.
Explore more products in our Linear Guide Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this guide block is 18800N.
The carriage length is 69.8mm and the carriage width is 44mm.
The static load rating is 32500N.
Yes, it has identical installation dimensions to the existing LH and LS ranges, allowing for easy upgrades.
It meets ISO14728-1 and ISO14728-2 standards for quality and performance.
The improved groove design increases the contact area between the ball and rail slide, doubling the life expectancy of the guide block.
The redesigned ball recirculation path supports high-speed applications and reduces noise levels by up to 3 decibels.
It can be equipped with NSK’s long-term maintenance-free K1 lubrication system.
Typical applications include machine tools, robotics, semiconductor manufacturing, automotive production, and automation systems.
The guide block is manufactured in India.
This guide block is part of the N Series from NSK.
The dynamic load rating is 1.3 times greater than previous LS and LH ranges, enhancing its operational efficiency.
