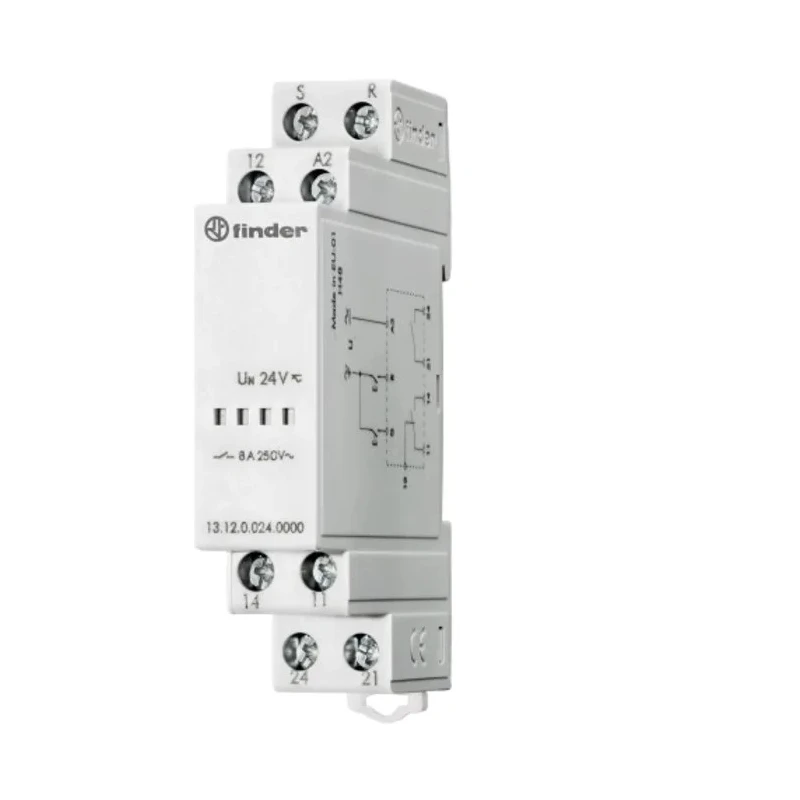

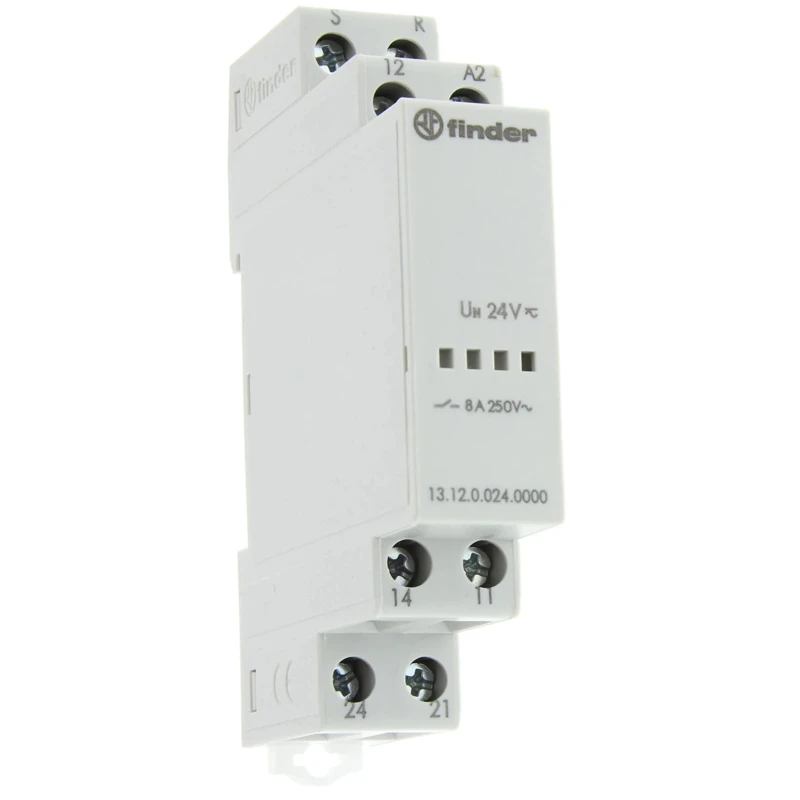

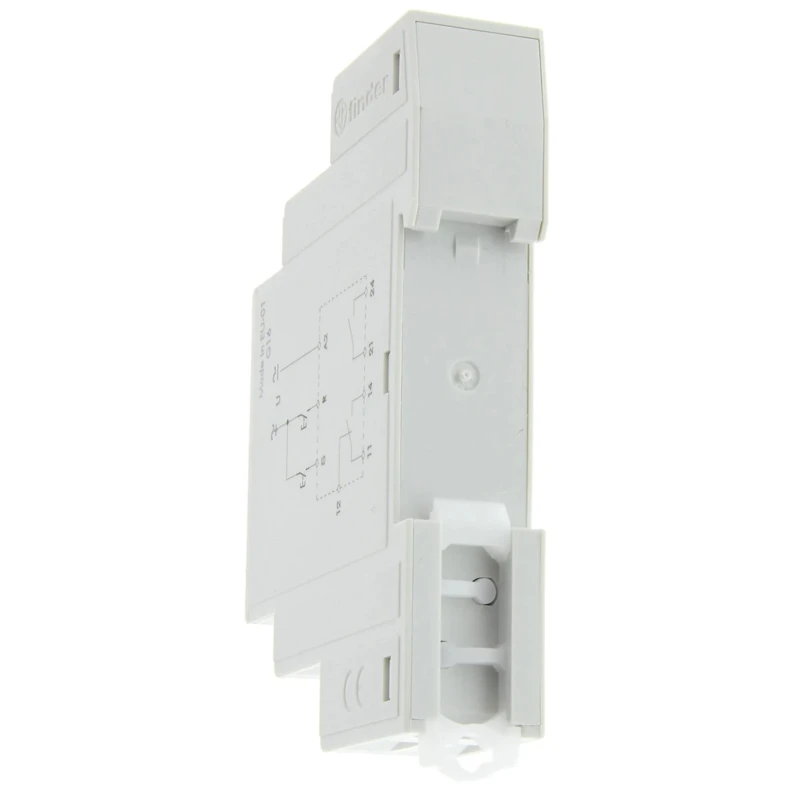

Finder DIN Rail Power Relay 24V AC/DC Coil Voltage 8A Switching Current SPDT Model 13.12.0.024.0000

The Finder 13.12.0.024.0000 DIN Rail Power Relay is engineered for industrial and electrical automation tasks requiring dependable switching. It features a coil voltage compatible with both 24V AC and DC power supplies, supporting an 8A maximum switching current with a single pole double throw (SPDT) contact arrangement. This relay is designed for easy DIN rail mounting with secure screw terminals.

Measuring 17.5mm wide, 60.8mm deep, and 88.8mm tall, the relay fits compactly within control panels. It is rated for operation within a temperature range of -10°C to +60°C, making it suitable primarily for indoor or appropriately protected environments.

The isolation voltage of 2 kV enhances electrical safety by preventing faults from propagating to connected circuits. With a rated electrical life of 100,000 cycles, this relay delivers robustness and reliability over long-term use.

Constructed with high-quality silver alloy contacts, the relay ensures enhanced conductivity and durability. It complies with CE and EAC standards, confirming its adherence to international quality and safety benchmarks.

Supports 24V AC/DC coil voltage for flexible power options. Single Pole Double Throw (SPDT) contact configuration allows versatile switching. Maximum switching current of 8 amperes for reliable load handling. Designed for DIN rail mounting with screw terminals for secure installation.

Compact dimensions: 17.5mm width, 60.8mm depth, and 88.8mm height. Maximum operating temperature of 60°C suitable for indoor environments. Isolation voltage rated at 2 kV to enhance safety and circuit protection. Rated for 100,000 electrical cycles ensuring extended relay lifespan.

Constructed with silver alloy contacts for durability and conductivity. Compliant with CE and EAC standards for quality assurance.

This relay is ideal for residential and commercial lighting control systems, office and bathroom automation, and general electrical switching applications where reliable 24V relay solutions are required. It is commonly used in industrial control panels, automation systems, and electrical distribution assemblies.

For specialized electrical and automation supplies, explore more products in the Power Relays category at EnvMart.
