Cynergy3 SSF22 Series Stainless Steel Vertical Level Switch Float Switch SSF22X100-M12X1

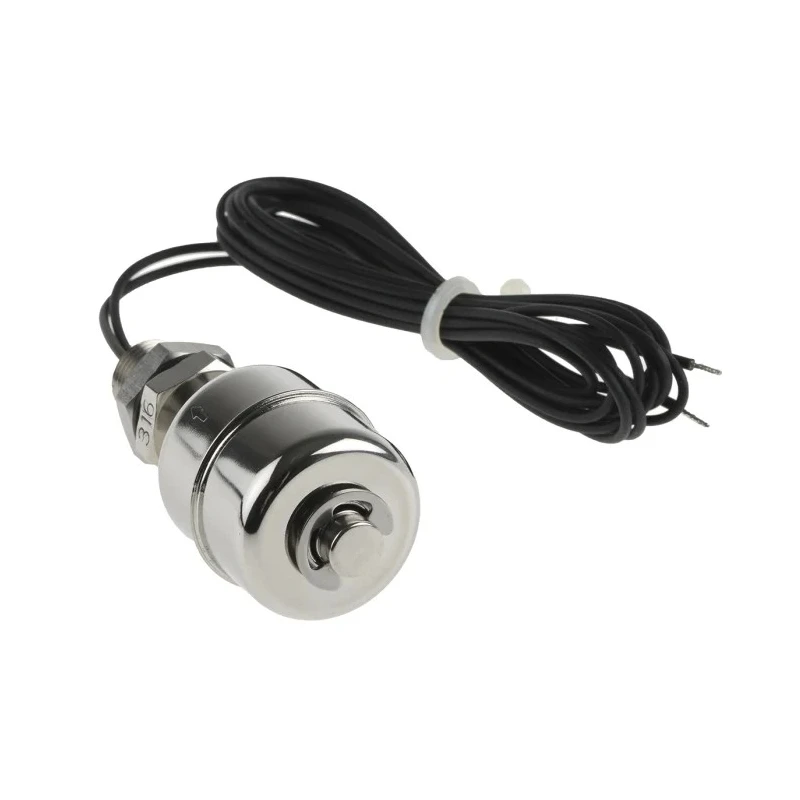

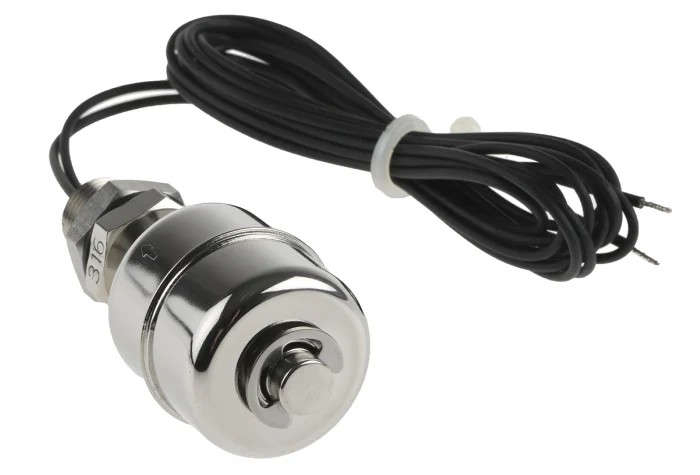

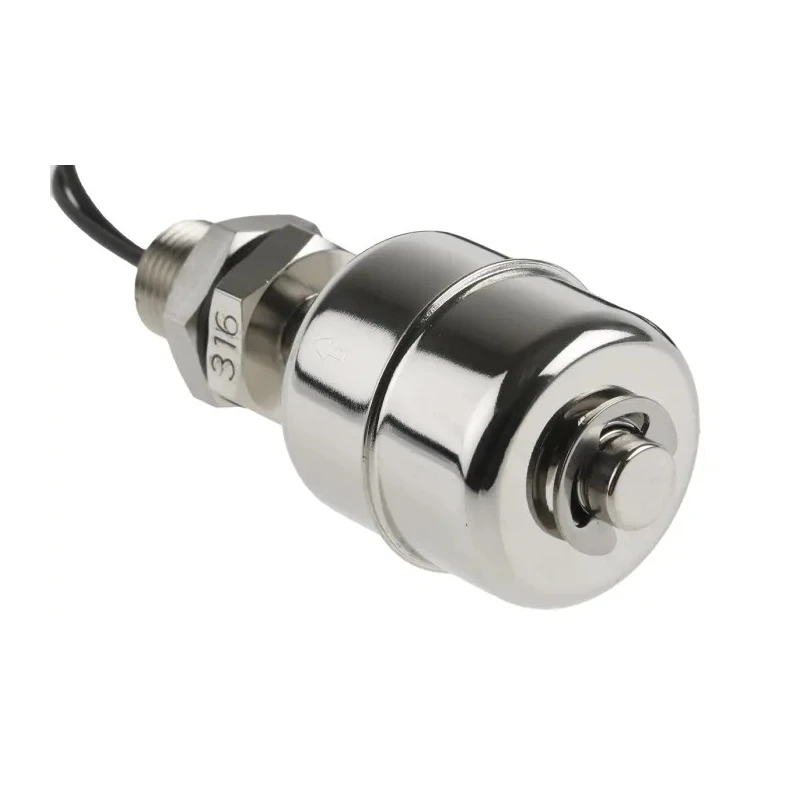

Cynergy3 SSF22X100-M12X1 is a vertical Level Switch float switch featuring a stainless steel 316L housing designed for liquid level detection and overflow prevention in tanks. This compact float switch is ideal for industrial, commercial, and water treatment applications where accurate level monitoring is essential. Its vertical mount design allows installation on the top or bottom of tanks without side access, making it suitable for confined spaces.

The float sensor operates by detecting rising or falling liquid levels using a magnetically actuated switch inside the stainless steel body. It offers a broad operating temperature range from -20°C to +120°C, ensuring functionality in harsh environments. The switch can withstand pressures up to 10 bar and supports both DC and AC voltages up to 300 volts, with a maximum current rating of 500mA.

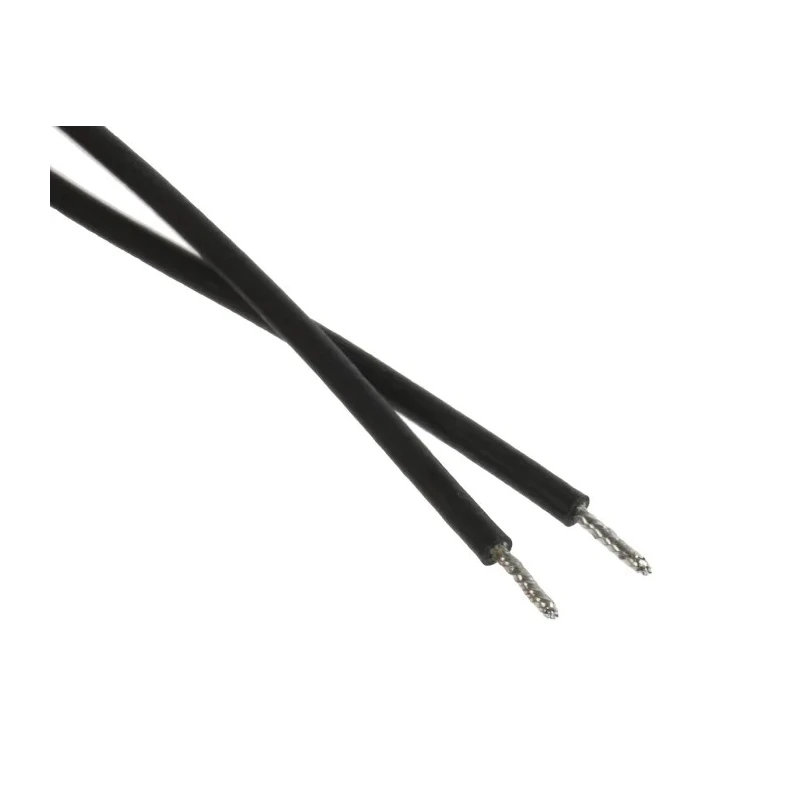

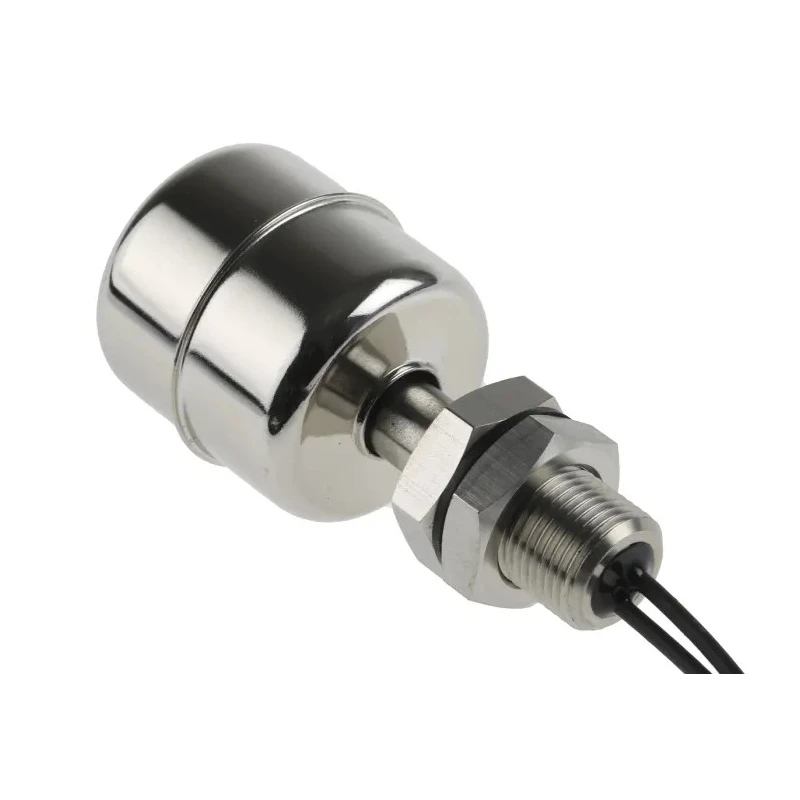

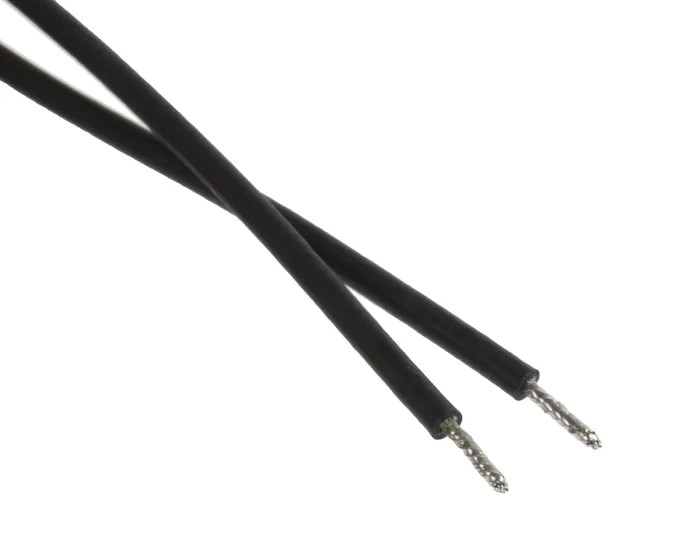

The float switch features a durable M12 x 1 thread size for secure internal mounting. A 1 meter cable length provides convenient wiring options. The stainless steel 316L housing material guarantees excellent corrosion resistance and mechanical strength, suitable for many industrial liquids.

Installation flexibility is enhanced by the ability to invert the float to reverse switch action, accommodating different tank orientations and fluid types. Although this product lacks hazardous area certification, it is ideal for non-explosive environments.

Applications include liquid level control in storage tanks, overflow protection, and automated filling or emptying systems in industrial, laboratory, manufacturing, agricultural, and water treatment setups.

Constructed with corrosion-resistant stainless steel 316L for durability. Wide temperature tolerance from -20°C to +120°C for diverse conditions. Supports AC/DC maximum voltage of 300 volts and current of 500mA. Compact vertical mounting with M12 x 1 threading for easy installation.

Pressure resistant up to 10 bar suitable for various liquids. Equipped with 1 meter cable for electrical connectivity. Reversible float action allows adaptable installation in different tanks. Ideal for industrial, commercial, and water treatment level sensing applications.
