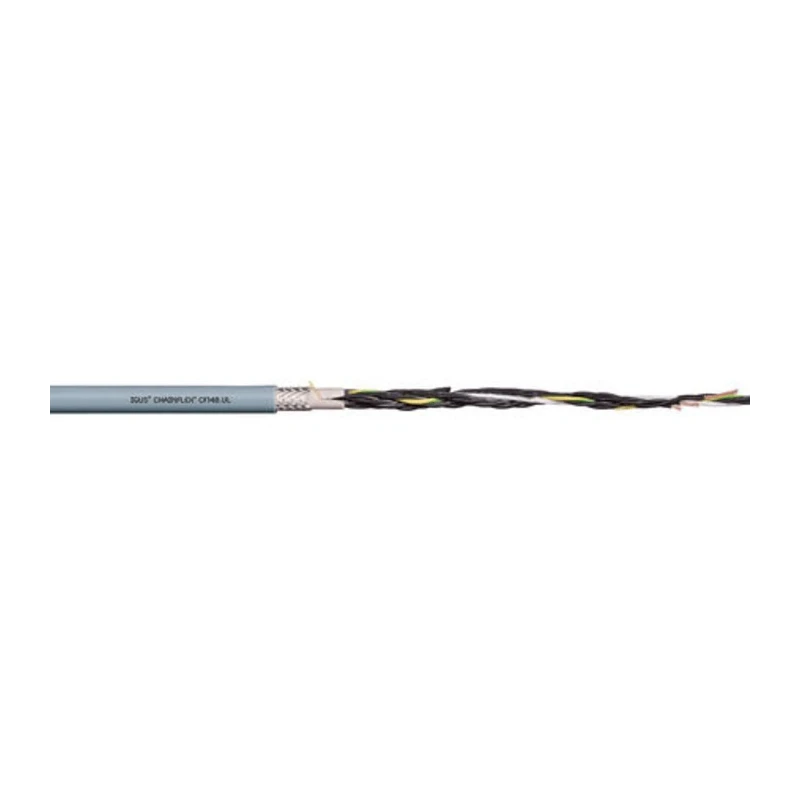

Igus Chainflex CF140.UL Screened Control Cable 3 Cores 0.5mm² 20 AWG Thermoplastic Elastomer Sheath 25m CF140.05.03.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF140.05.03.UL |
| Cable Length | 25m |
| Series | Chainflex CF140.UL |
| Outside diameter | 8mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 3 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
Key Features
- The cable features three cores, each with 0.5mm² conductor cross-section.
- Constructed with bare stranded copper conductors for reliable conductivity.
- Equipped with a grey thermoplastic elastomer jacket providing flame retardant protection.
- Screened design minimizes electromagnetic interference, suitable for sensitive control signals.
- Designed for use up to 70°C maximum operating temperature and as low as -5°C.
- Armoured for mechanical protection in demanding environments.
- Complies with CE and EN standards ensuring quality and safety.
- Cable length of 25 meters provides versatile installation options.
Product Description
Igus CF140.05.03.UL Chainflex CF140.UL is a screened Control Cable engineered for medium load requirements in industrial and automation settings. Featuring three cores with 0.5mm² bare stranded copper conductors and a durable grey thermoplastic elastomer sheath, this cable offers reliable signal transmission and enhanced mechanical protection with its armoured design.
Ideal for use in indoor applications with freely suspended travel distances or gliding operations up to 50 meters, the cable withstands extreme conditions with an operating temperature range from -5°C to 70°C. It also resists oil influences and meets stringent flame retardant regulations including IEC 60332-1-2, CEI 20-35, FT1, and VW1-1, ensuring safety in industrial environments.
With a voltage rating of 300 to 500 volts, it serves diverse industrial control tasks including automation systems, manufacturing facilities, and electrical power distribution. The screened construction effectively minimizes electromagnetic interference for sensitive control signals, improving system reliability.
The 25 meter length enables flexible installation options across control panels, machinery, and process control setups. Its compact 8mm outside diameter facilitates easy routing while maintaining durability.
The cable features three cores, each with 0.5mm² conductor cross-section. Constructed with bare stranded copper conductors for excellent conductivity. Grey thermoplastic elastomer jacket provides flame retardant and oil resistant protection.
Screened design reduces signal interference for reliable control communication. Armoured construction enhances mechanical robustness in industrial environments. Compliant with CE and EN standards ensuring high quality and safety.
Operates between -5°C and 70°C, suitable for varied temperature conditions. Voltage capacity supports 300 to 500 volts industrial applications. Flame retardant ratings meet IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 standards.
25 meter cable length is versatile for multiple industrial configurations.
This product is made in Germany, embodying precise engineering and durability. It is widely used in industrial automation, electrical power and industrial cabling, manufacturing processes, and control gear installations.
Explore more industrial-grade cables and related products at EnvMart for reliable and certified electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is 70°C.
This model has a voltage rating of 300 to 500 volts.
It features three cores, each with a cross-section of 0.5mm².
The cable is constructed with bare stranded copper conductors and has a grey thermoplastic elastomer jacket.
The outside diameter of the cable is 8mm.
It can operate in temperatures ranging from -5°C to 70°C.
This cable is screened, which helps minimize electromagnetic interference.
It complies with IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 flame retardant regulations.
The cable length is 25 meters, providing versatile installation options.
It is suitable for industrial automation, electrical power distribution, and manufacturing processes.
This product is made in Germany, ensuring precise engineering.
The cable meets CE and EN standards, ensuring quality and safety.
