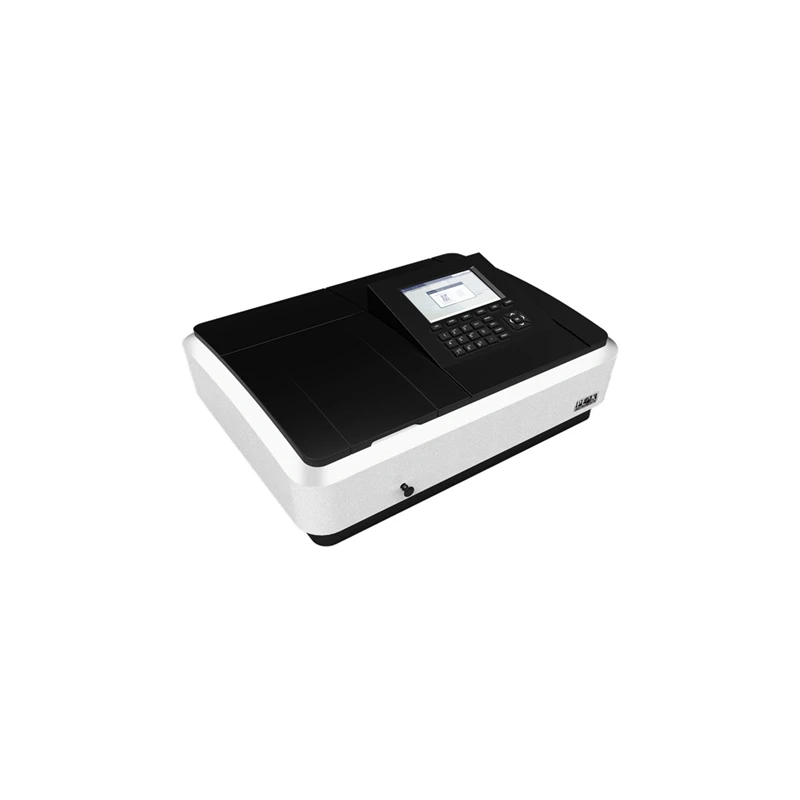

Peak Instruments X-8200A Xenon Double Beam SpectrophotometerWavelength Range 190-1100nm
Specifications
| Display | 7 inch color LCD screen |
|---|---|
| Light Source | Xenon Lamp |
| Noise | 0.002A@500nm |
| Drift | 0.002A/30min@500nm |
| Detector | Solid Silicon Photodiode |
| Model | X-8200A |
| Keypad | Silicone buttons |
| Wavelength Range | 190 - 1100nm |
| Wavelength Accuracy | +-0.6 nm |
| Optical System | Double Beam Holographic grating 1200 lines/mm |
| OUTPUT PORT | RS232 USB Drive USB HOST |
| Wavelength Repeatability | Less Than -0.2 nm |
| Photometric Range | 0-200%T -0.3-3.0A 0-9999C(0-9999F) |
| Photometric Accuracy | 0.3%T (0-100%T) 0.005A(0-0.5A) 0.01A(0.5-1A) |
| Stray Light | Less Than -0.1%T@220nm360nm |
| Power Requirements | AC 110-220V 50-60Hz |
| Baseline Flatness | +-0.002A(200-1000nm) |
| Processor | CortexM3 120Mhz |
| Photometric Repeatability | Less Than -0.2%T (0-100%T) 0.003A(0-0.5A) 0.005A(0.5-1A) |
| Slit Width | 0.5nm1nm2nm4nm |
| Dimensions & Weight | 880x690x530mm 45kg |
| Working Mode | T A C E |
| Wavelength Setting | Automatic |
| Keyboard Control | Silicone Buttons |
Key Features
- Advanced hardware and 32-bit CortexM3 processor with the clock speed 120MHz. The equipment can store 5000 pieces of data and 500 curves
- High-efficiency holographic grating of 1200 lines/mm and ultra-low stray light
- The equipment has Long-life socket type xenon lamp which can work up to 5000 hours. Socket type lamp make the replacement much easier
Product Description
Peak Instruments Xenon Double Beam Spectrophotometer Model X-8200A Wavelength Range 190-1100nm, A Xenon Double Beam Spectrophotometer is a type of analytical instrument used for measuring the absorption or transmission of light by a sample in the ultraviolet and visible regions of the electromagnetic spectrum. This type of spectrophotometer is equipped with a xenon lamp as the light source, which emits a broad spectrum of light covering a wide range of wavelengths from the ultraviolet to the near-infrared regions
- Excellent silicon photodiode can guarantee the equipment is highly sensitive and stable
- Huge sample chamber and various accessories can meet all kinds of needs
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The X-8200A spectrophotometer has a wavelength range of 190 to 1100 nm.
It uses a xenon lamp as its light source, which provides a broad spectrum of light.
The photometric range is 0-200%T, -0.3 to 3.0A, and 0 to 9999C (0 to 9999F).
The power requirements are AC 110-220V at 50-60Hz.
This model weighs 45 kg and has dimensions of 880 x 690 x 530 mm.
The wavelength accuracy is ±0.6 nm.
It is equipped with a solid silicon photodiode detector, ensuring high sensitivity and stability.
The noise level is 0.002A at 500 nm.
It can store up to 5000 pieces of data and 500 curves.
The optical system features a double beam with a holographic grating of 1200 lines/mm.
The baseline flatness is ±0.002A within the wavelength range of 200 to 1000 nm.
This model can perform transmission (T), absorbance (A), concentration (C), and energy (E) measurements.
