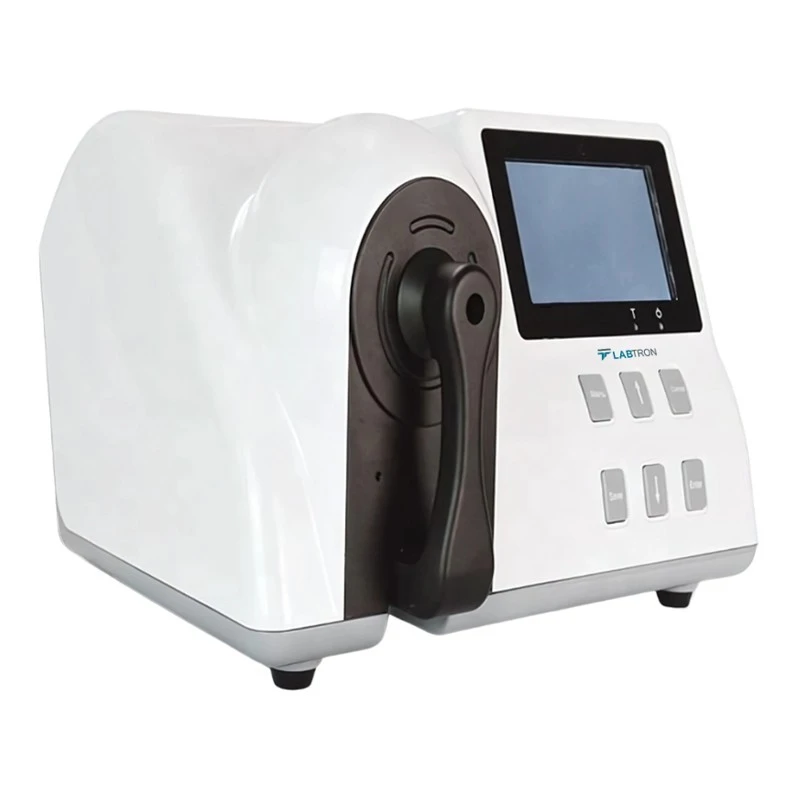

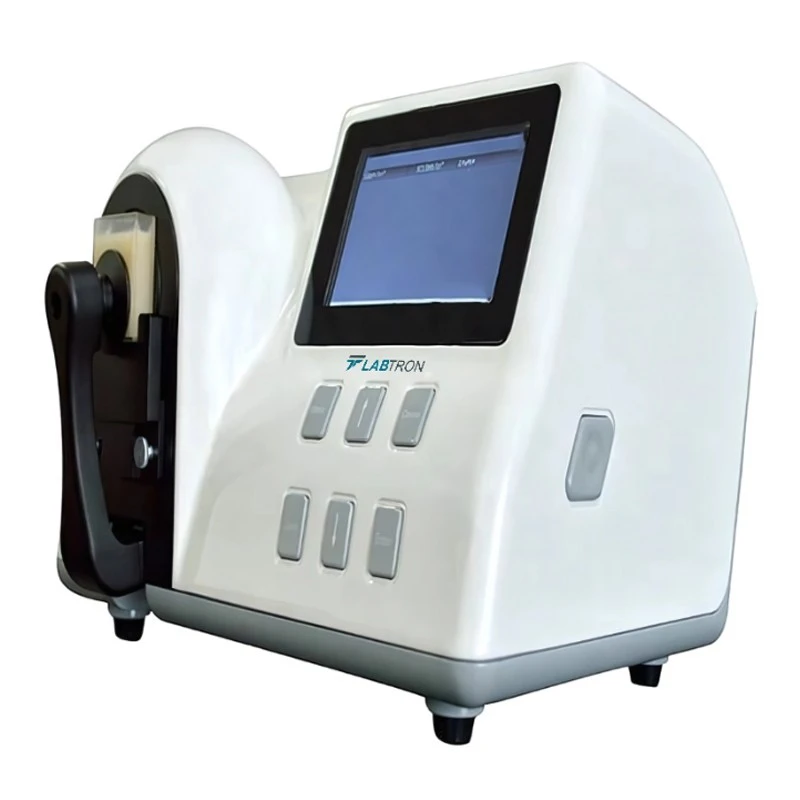

Table Top Spectrophotometer ETS-A12
Specifications
| Country of Origin | UK |
|---|---|
| Repeatability | Light splitting reflectivity — SD ≤ 0.08% / Color values — ΔE*ab ≤ 0.015 (after calibration / 30 measurements on test White board / 5s intervals) / Max — 0.03 |
| Display | 5 inch TFT touch screen |
| Sensor | Dual light path sensor array |
| Brand | Generic Brand |
| Interface | USB |
| Light Source | A / C / D50 / D65 / D75 / F1 / F2 / F3 / F4 / F5 / F6 / F7 / F8 / F9 / F10 / F11 / F12 / DLF / TL183 / TL184 / NBF / U30 / CWF |
| Model | LTS-A12 |
| Wavelength Range | 400–700 nm |
| Weight | 18 Kg |
| Storage temperature range | 25°C to 55°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Type of Product | Spectrophotometer |
| Measurement time | 2 seconds |
| Data Storage | 20000 test results |
| Dimension (L × W × H) | 583 × 330 × 304 mm |
| Size of integrated sphere | 15.2 cm / alvan diffused reflection surface coating |
| Illumination light source | CLED |
| Color difference formula | ΔEab / ΔECH / ΔEuv / ΔEcmc(2 — 1) / ΔE*cmc(1 — 1) / Color Classification |
| Color space | CIE — Lab / LCh / Luv / XYZ / Yxy / Reflectance / Hunterlab / Munsell MI / CMYK |
| Wavelength Interval | 10 nm |
| Half Spectral Width | 5 nm |
| Reflectivity Range & Resolution | 0 to 200% / 0.01% |
| Measurement Time Interval | 2 seconds |
| Work Temperature Range | 0 to 45°C / relative humidity ≤ 80% (at 35°C) / no condensation |
| Data Being Displayed | Sample color values / color difference values / graphs / pass/fail results / color error tendency / color simulation / display measurement area / history data / manual input / standard sample / generate measurement report |
| Light Source Longevity | 10 years / 3 million tests |
| Measurement Caliber | LAV — 2.54 cm (1 inch) | MAV — 1.5 cm (0.6 inch) | SAV — 0.75 cm × 1.0 cm (0.3 inch × 0.4 inch) | VSAV — 0.3 cm × 0.8 cm (0.12 inch × 0.31 inch) |
Key Features
- Dual light path spectral analysis technology
- Manual fitting of white calibration board on measurement port
- Four measurement calibers, maximum is 25.4 mm
- Large display screen for easier measurement and settings
- Flexible measurement fixtures
- Simultaneously measures SCI and SCE
- PC connection for data transmission, software, storage
- Reflection and transmission measurement
- Adjustable UV components (light source) percentage value
Product Description
Table top spectrophotometer LTS-A12 has multiple measuring calibers with largest caliber of 25.4 mm, satisfies the measurement needs of samples of different size. It is possible to measure the color data of opaque samples and transmission and opacity of transparent or semi-transparent samples. Equipped with dual light path spectral analysis technology ensures precision and long-term stability of the instrument. The 8°/diffused illumination geometric design of lightning, provides full insight of the color data.
Applications :
Table top spectrophotometer with multiple measuring calibers has applications in measurement of solid as well as liquid material at multiple calibration points.

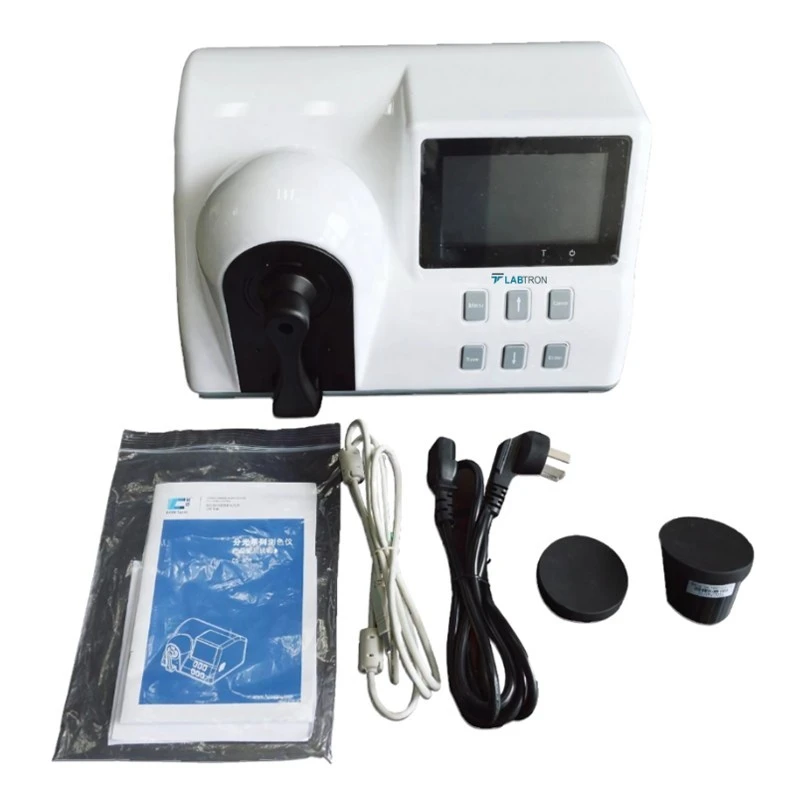

Standard Accessories :
- Power cord
- USB cable
- Driving software
- Color QC software
- Black and white calibration tile
Illumination system:d/8 (Diffused lighting / 8° observation angle) | SCS optical engine (light splitting and integration system) | ETC (real-time calibration technology) | SCI (specular reflection included) & SCE (specular reflection excluded) / simultaneous measurement,Other Colorimetric Indices:WI (Whiteness) (ASTM E313-10 / ASTM E313-73 / CIE/ISO / AATCC / Hunter / Taube / Berger / Ganz / Stensby) | YI (yellowness) (ASTM D1925 / ASTM E313-00 / ASTM E313-73) | Tint (ASTM E313 / CIE / Ganz) | Metamerism index Milm | Adhesive/changing color fastness | ISO illuminance | 8 gloss | A density | T density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wavelength range of the Table Top Spectrophotometer ETS-A12 is from 400 to 700 nm.
This model has dimensions of 583 × 330 × 304 mm and weighs 18 kg.
The dual light path sensor array allows for simultaneous measurement of specular reflection included (SCI) and excluded (SCE), enhancing measurement accuracy.
The maximum measurement caliber for this spectrophotometer is 25.4 mm.
It features a 5 inch TFT touch screen for easier measurement and settings.
The measurement time for this instrument is 2 seconds.
It can measure color data of opaque samples as well as transmission and opacity of transparent or semi-transparent samples.
This model can store up to 20,000 test results.
The work temperature range is from 0 to 45°C with a relative humidity of ≤ 80% (at 35°C) and no condensation.
It has a USB interface for data transmission and connection to a PC.
