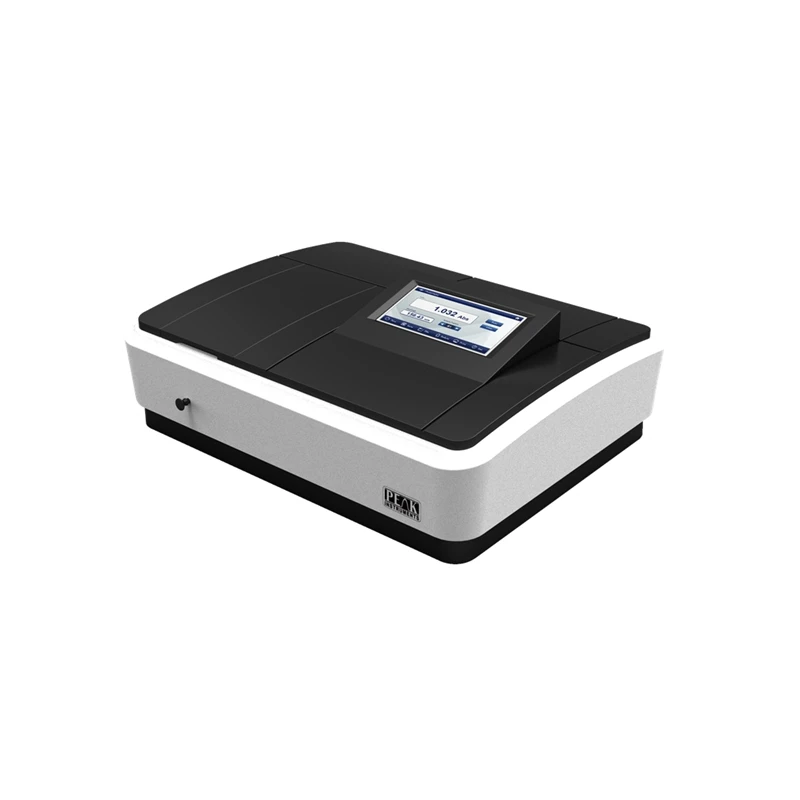

Peak Instruments T-9200S Touch Screen Double Beam Spectrophotometer Wavelength Range 190-1100nm
Specifications
| Display | 7 inch color capacitive touch screen |
|---|---|
| Light Source | Tungsten Halogen/Deuterium Lamp |
| Noise | 0.0003A@500nm |
| Drift | 0.002A/30min@500nm |
| Detector | Solid Silicon Photodiode |
| Model | T-9200S |
| Keypad | Silicone buttons |
| Wavelength Range | 190 - 1100nm |
| Wavelength Accuracy | +-0.3nm |
| Optical System | Double Beam |
| OUTPUT PORT | USB HOST/USB DRIVE/RS232 |
| Wavelength Repeatability | Less Than -0.2nm |
| Photometric Range | 0-200%T -0.3-3.0A 0-9999C(0-9999F) |
| Photometric Accuracy | 0.2%T (0-100%T) 0.002A(0-0.5A) 0.004A(0.5-1A) |
| Stray Light | Less Than -0.05%T@220nm360nm |
| Spectral Bandwidth | 1 nm |
| Power Requirements | AC 110-220V 50-60Hz |
| Baseline Flatness | +-0.002A |
| Humidity range | Less than 85% |
| Processor | CortexM3 120Mhz |
| Photometric Repeatability | Less Than -0.15%T (0-100%T) 0.001A(0-0.5A) 0.002A(0.5-1A) |
| Dimensions & Weight | 770x630x340mm 27kg |
| Working Mode | T A C E |
| Wavelength Setting | Automatic |
Key Features
- Appearance and internal structure
- Convenient and intuitive operation interface
- Excellent performance and stability
Product Description
Peak Instruments Touch Screen Double Beam Spectrophotometer Model T-9200S Wavelength Range 190-1100nm, A Touch Screen Double Beam Spectrophotometer is a type of analytical instrument that is used to measure the absorption or transmission of light by a sample in the ultraviolet and visible regions of the electromagnetic spectrum. The wavelength range of this particular instrument is 190-1100nm
- Advanced photoelectric test system
- Simple and convenient maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The T-9200S spectrophotometer has a wavelength range of 190 to 1100 nm.
It features a 7 inch color capacitive touch screen for convenient operation.
The photometric accuracy is 0.2%T for the range of 0-100%T and 0.002A for 0-0.5A.
This model requires an AC power supply of 110-220V at 50-60Hz.
It uses a Tungsten Halogen/Deuterium lamp as its light source.
The noise level is 0.0003A at 500 nm.
The dimensions are 770x630x340 mm and it weighs 27 kg.
The stray light is less than 0.05%T at 220 nm and 360 nm.
The photometric range is from 0-200%T, -0.3 to 3.0A, and 0-9999C (0-9999F).
The spectral bandwidth of this model is 1 nm.
The operating humidity range is less than 85%.
It uses a solid silicon photodiode as its detector.
