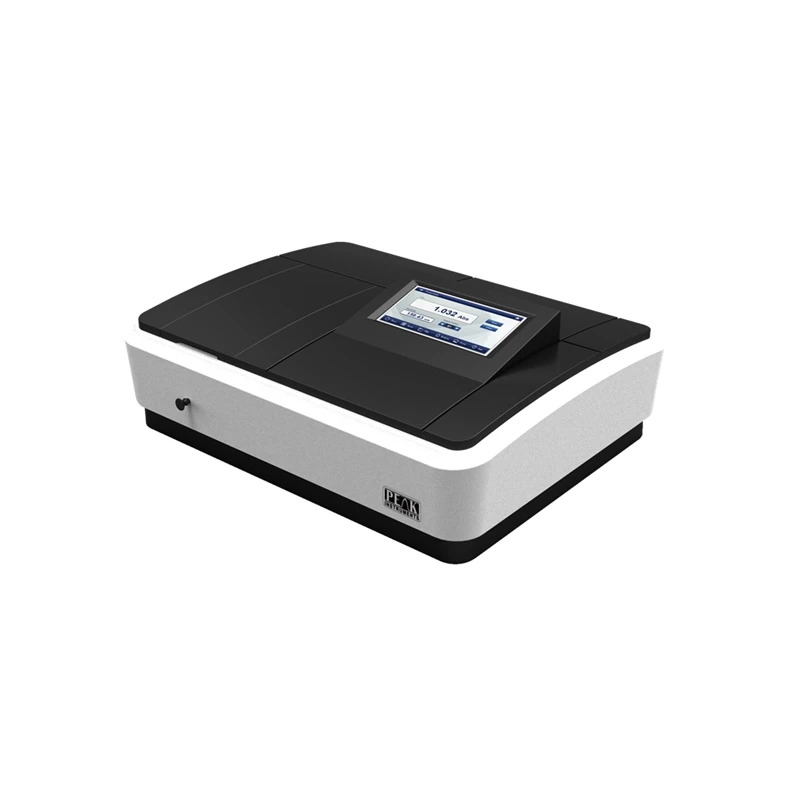

Peak Instruments T-9200A Touch Screen Double Beam Spectrophotometer Wavelength Range 190-1100nm
Specifications
| Display | 7 inch color capacitive touch screen |
|---|---|
| Light Source | Tungsten Halogen/Deuterium Lamp |
| Noise | 0.0003A@500nm |
| Drift | 0.002A/30min@500nm |
| Detector | Solid Silicon Photodiode |
| Model | T-9200A |
| Keypad | Silicone buttons |
| Wavelength Range | 190 - 1100nm |
| Wavelength Accuracy | +-0.3nm |
| Optical System | Double Beam |
| OUTPUT PORT | USB HOST/USB DRIVE/RS232 |
| Wavelength Repeatability | Less Than -0.2nm |
| Photometric Range | 0-200%T -0.3-3.0A 0-9999C(0-9999F) |
| Photometric Accuracy | 0.2%T (0-100%T) 0.002A(0-0.5A) 0.004A(0.5-1A) |
| Stray Light | Less Than -0.05%T@220nm360nm |
| Spectral Bandwidth | 0.5 1 2 4nm |
| Power Requirements | AC 110-220V 50-60Hz |
| Baseline Flatness | +-0.002A |
| Humidity range | Less than 85% |
| Processor | CortexM3 120Mhz |
| Photometric Repeatability | Less Than -0.15%T (0-100%T) 0.001A(0-0.5A) 0.002A(0.5-1A) |
| Dimensions & Weight | 940x740x510mm 27kg |
| Working Mode | T A C E |
| Wavelength Setting | Automatic |
Key Features
- Appearance and internal structure
- Convenient and intuitive operation interface
- Excellent performance and stability
Product Description
Peak Instruments Touch Screen Double Beam Spectrophotometer Model T-9200A Wavelength Range 190-1100nm, A Touch Screen Double Beam Spectrophotometer is a type of analytical instrument that is used to measure the absorption or transmission of light by a sample in the ultraviolet and visible regions of the electromagnetic spectrum. The wavelength range of this particular instrument is 190-1100nm
- Advanced photoelectric test system
- Simple and convenient maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The T-9200A has a wavelength range of 190 to 1100 nm.
It features a 7 inch color capacitive touch screen for easy operation.
The photometric range is 0-200%T, 0.3-3.0A, and 0-9999C (0-9999F).
This model requires an AC power supply of 110-220V at 50-60Hz.
It uses a Tungsten Halogen/Deuterium lamp as its light source.
The noise level is 0.0003A at 500 nm.
The wavelength accuracy is ±0.3 nm.
It weighs 27 kg and its dimensions are 940x740x510 mm.
The spectral bandwidth can be set to 0.5, 1, 2, or 4 nm.
The humidity range for operation is less than 85%.
It has USB HOST and USB DRIVE output ports.
The drift is specified as 0.002A/30min at 500 nm.
