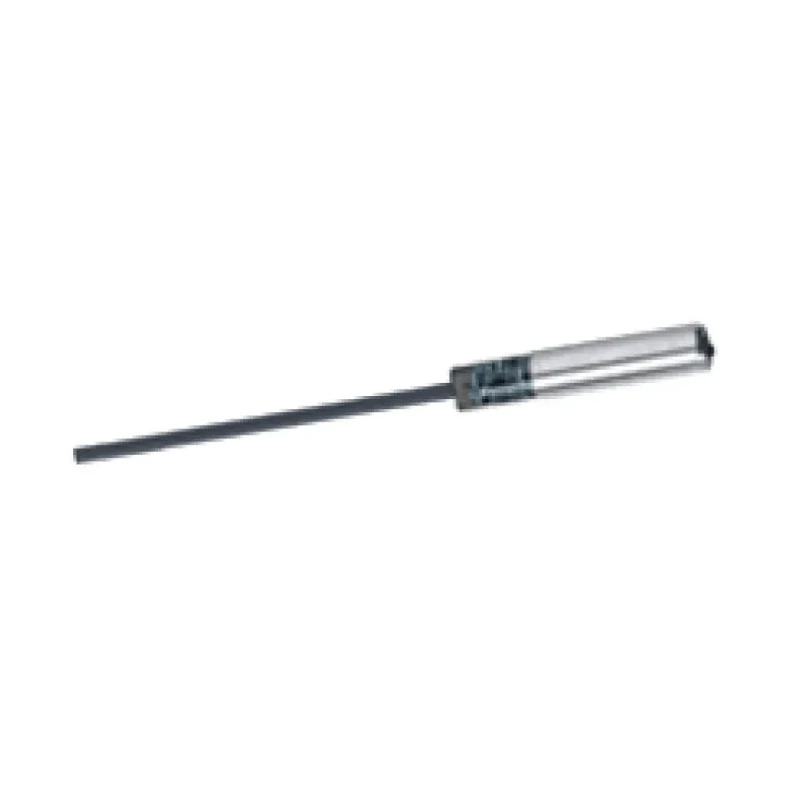

ifm electronic Diffuse Photoelectric Sensor, Barrel Style, 1 mm to 200 mm Detection Range, PNP Output, IP67 Protection OF5010
Specifications
| Country of Origin | India |
|---|---|
| Brand | ifm electronic |
| Light Source | Infrared |
| Detection range | 1 mm → 200 mm |
| Model | OF5010 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Nickel Plated Brass |
| Output type | PNP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 200mA |
| DetectIon Type | Diffuse |
| Terminal type | M12 Connector |
| Maximum dc Voltage | 36V dc |
| Standards/Approvals | cULus, UL |
| Materials Detected | Glass |
| Sensor Style | Barrel |
| Electrical design | DC PNP |
Key Features
- The sensor features a nickel plated brass housing for durability and corrosion resistance.
- It supports a maximum DC voltage of 36V and maximum current of 200 mA.
- The sensor operates in temperatures ranging from -25°C to 60°C.
- It includes short circuit, reverse polarity, and overload protection for reliable operation.
- Equipped with an infrared light source for precise detection of glass materials.
- Connection is via an M12 connector with cable mount type.
- The rugged sensor meets cULus and UL certifications and has a high ingress protection rating of IP67.
- Switching status and power LED indicators provide visual operation status.
Product Description
ifm electronic OF5010 is a high-performance diffuse photoelectric sensor designed in a barrel style with a detection range from 1 mm to 200 mm. It features PNP output and robust IP67-rated housing suitable for harsh industrial environments. The sensor's nickel plated brass construction provides enhanced durability and corrosion resistance, making it reliable for continuous use in demanding settings.
Operating at a maximum DC voltage of 36V and supporting currents up to 200 mA, this sensor incorporates several built-in safeguards including short circuit prevention, overload protection, and reverse polarity protection, ensuring stable and safe operation.
The infrared light source allows effective detection primarily of glass materials, making it suitable for a variety of sensing applications. The sensor connects via an M12 connector and features a cable mount type for ease of installation.
This product is certified to cULus and UL standards and boasts an IP67 rating, guaranteeing protection from dust ingress and water immersion to a certain depth, making it ideal for industrial automation, manufacturing, and process control environments.
Durable nickel plated brass housing ensures long sensor life. Operating temperature range from -25°C to 60°C for versatile application. Visual status indication via switching and power LEDs. Includes two lock nuts and screwdriver for secure mounting.
Non-latching protective mechanisms for system safety. Designed for detection of glass and similar materials. Suitable for electrical, manufacturing, and automation industries. Explore the extensive range of Photoelectric Sensors and automation controls available to enhance your industrial applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OF5010 has a detection range from 1 mm to 200 mm.
This model features a PNP output type.
The maximum operating temperature for the OF5010 is 60°C.
It is designed to detect glass materials effectively.
The sensor has an IP67 rating, providing protection against dust and water immersion.
It connects via an M12 connector with a cable mount type.
This model includes short circuit, overload, and reverse polarity protection.
The housing is made of nickel plated brass, which provides durability and corrosion resistance.
The minimum operating temperature is -25°C.
This sensor is certified to cULus and UL standards.
The OF5010 uses an infrared light source for detection.
The sensor includes two lock nuts and a screwdriver for secure mounting.
