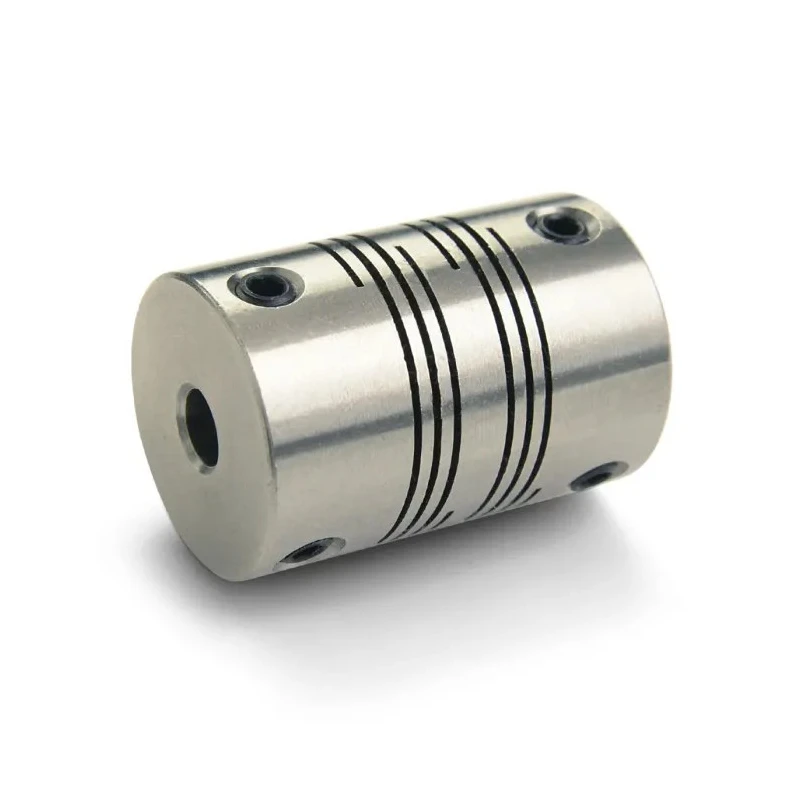

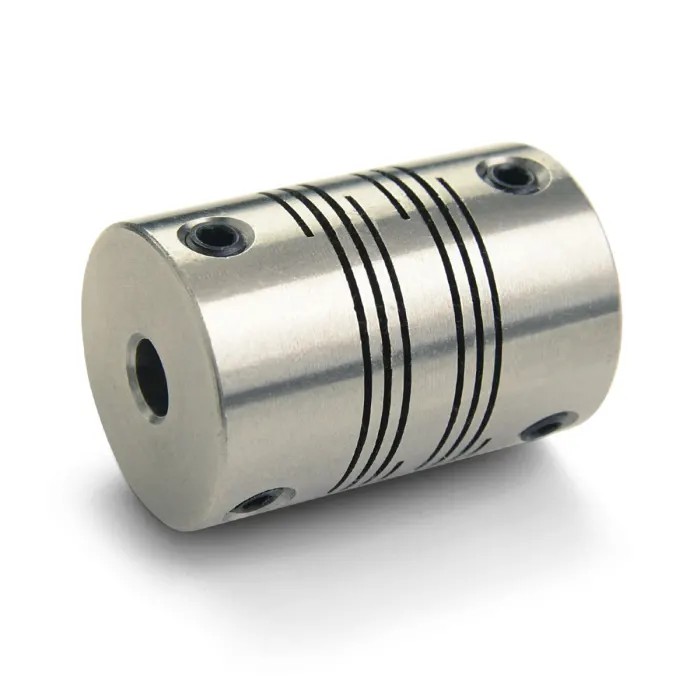

Ruland Stainless Steel Flexible Shaft Coupler 38.1 mm Outside Diameter 14 mm Bore Size 57.15 mm Length FSMR38-14-14-SS
Specifications
| Country of Origin | United States |
|---|---|
| Screw Size | M6 |
| Brand | Ruland |
| Material | Stainless Steel |
| Length | 57.15mm |
| Model | FSMR38-14-14-SS |
| Maximum Speed | 6000rpm |
| Number of Beams | 6 |
| Outside diameter | 38.1mm |
| Maximum Operating Temperature | 176°C |
| Minimum Operating Temperature | -40°C |
| Torque Rating | 12.43Nm |
| Standards/Approvals | DIN 912 12.9, REACH, RoHS3 |
| Moment of Inertia | 83.407 x 10-6 kg/m² |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.76mm |
| Misalignment - Axial | 0.38mm |
| Bore Size B | 14mm |
| S/steel set screw coupling,14x14mm boreBrand | Ruland |
Key Features
- Manufactured as a one-piece stainless steel coupling ensuring torsional rigidity and zero backlash.
- Suitable for use with encoders, stepper motors, robotics, and servo systems requiring high torque capacity.
- Allows up to 3° of angular misalignment and high-speed operation up to 6000 rpm.
- Features six beams and a set screw style fixing with M6 screws for secure shaft attachment.
- Operates reliably within a temperature range of -40°C to 176°C without need for lubrication.
- Complies with DIN 912 12.9, REACH, and RoHS3 standards, ensuring quality and environmental compliance.
- Originates from the United States with robust construction to withstand mechanical stress.
Product Description
Ruland FSMR38-14-14-SS Stainless Steel Flexible Shaft Coupler features a 38.1 mm outside diameter, 14 mm bore size, and a length of 57.15 mm, engineered for versatile mechanical power transmission at speeds up to 6000 rpm. This coupling is designed to deliver precise, torsionally rigid performance for applications such as encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, and fans.
Constructed as a one-piece stainless steel unit, it eliminates mechanical joints and potential failure points, providing zero backlash and high torque capacity up to 12.43 Nm. The flexible design allows for up to 3° of angular misalignment, 0.76 mm parallel misalignment, and 0.38 mm axial movement, accommodating shaft misalignments without deterioration of performance.
The coupling uses a screw-style fixing with six beams and M6-sized screws, ensuring secure attachment to shafts. It is tolerant to operating temperatures ranging from -40°C to 176°C and requires no lubrication, supporting reliable long-term use under varied environmental conditions.
Compliant with DIN 912 12.9, REACH, and RoHS3 standards, this coupling ensures safety and environmental considerations are met. The coupling's stainless steel material provides corrosion resistance and durability, making it suitable for industrial, mechanical, laboratory, robotics, and HVAC applications.
One-piece stainless steel design for torsional rigidity and zero backlash. Supports high-speed operation up to 6000 rpm with torque rating of 12.43 Nm. Allows up to 3° angular, 0.76 mm parallel, and 0.38 mm axial misalignments.
Screw style fixing with six beams and M6 screws for secure fit. Operates within -40°C to 176°C without lubrication. Conforms to DIN 912 12.9, REACH, and RoHS3 standards. Ideal for mechanical power transmission in robotics, pump systems, and servo applications.
Explore more mechanical power transmission components at EnvMart to support your industrial and manufacturing needs.
Explore more products in our Mechanical Power Transmission Coupler category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum speed rating of 6000 rpm, making it suitable for high-speed applications.
The torque rating for this coupler is 12.43 Nm, allowing it to handle significant torque in various applications.
It features an outside diameter of 38.1 mm, a bore size of 14 mm, and a length of 57.15 mm.
It allows for up to 3° of angular misalignment, 0.76 mm of parallel misalignment, and 0.38 mm of axial movement.
The coupler is constructed from stainless steel, providing corrosion resistance and durability for various applications.
It complies with DIN 912 12.9, REACH, and RoHS3 standards, ensuring quality and environmental compliance.
It operates reliably within a temperature range of -40°C to 176°C without the need for lubrication.
This unit uses a screw-style fixing with six beams and M6 screws to ensure a secure attachment to shafts.
It is suitable for use with encoders, stepper motors, robotics, servo systems, pumps, valves, and fans.
The moment of inertia for this model is 83.407 x 10^-6 kg/m², which is relevant for dynamic performance calculations.
It is designed as a one-piece unit to ensure torsional rigidity and zero backlash, eliminating potential failure points.
This coupler originates from the United States, ensuring adherence to local manufacturing standards.
