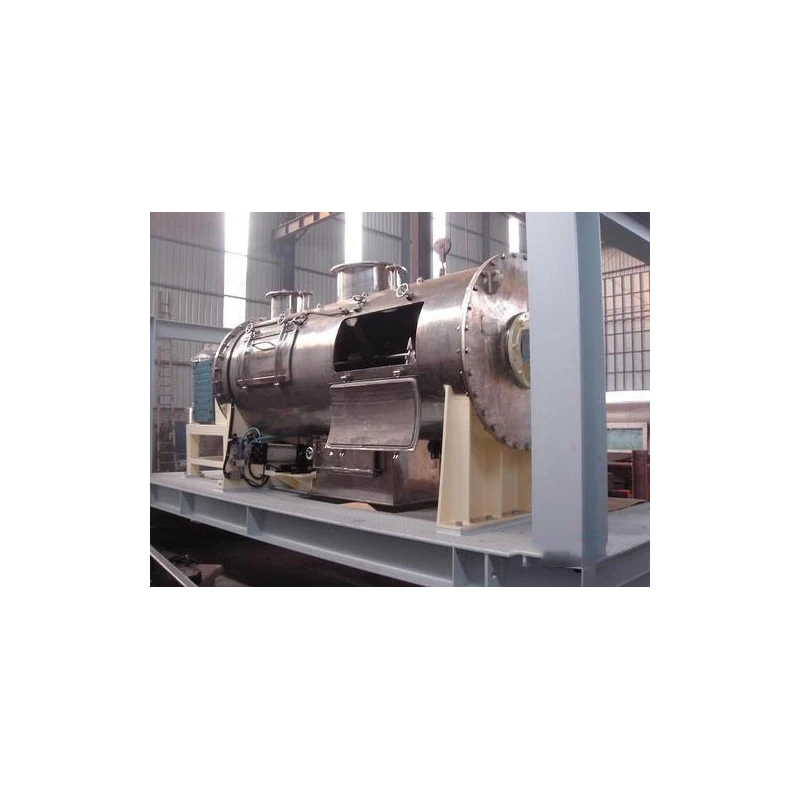

Plough Shear Mixer 5 HP

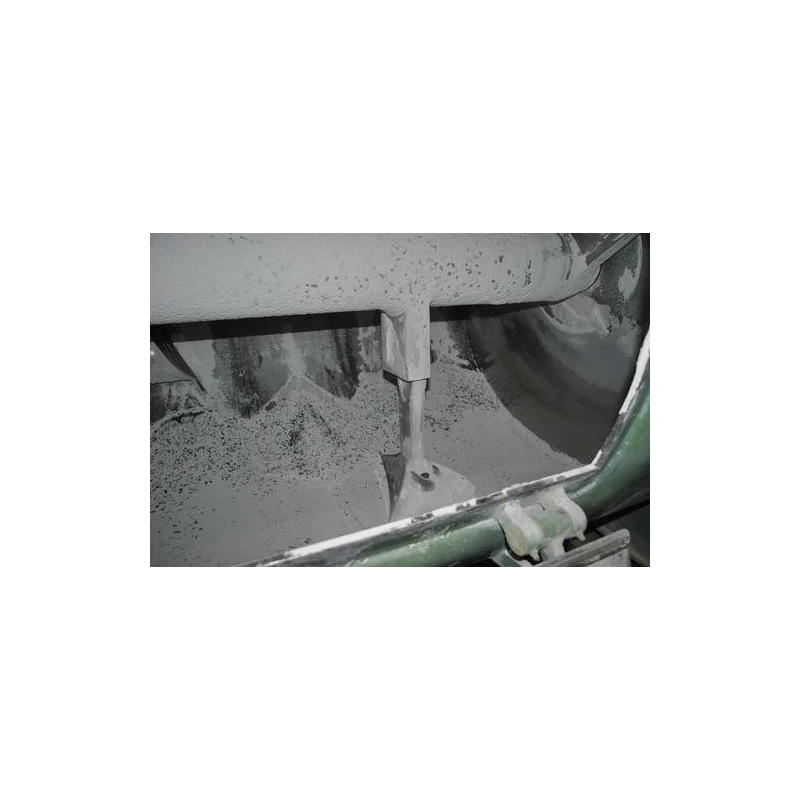

Plough Shear Mixer consists of a horizontal cylindrical container with multiple plough shaped shovels mounted on the main shaft. Bharat Process Equipment (BPE) offers a wide range of capacities from 5 liters to 20000 liters in all material grades.Design HighlightsThe feed is subjected to a whirling, three-dimensional product movement. Mixing elements are specially designed to lift the material from the inside wall of the container without squashing the particles against the wall.High-speed choppers (optional) installed to disperse agglomerations and control granulation during the mixing process in co-ordination with the mixing elements.Chopper Action Single or multiple choppers are located in the lower part of the mixing container in such a way that the chopper assembly is inserted into the wall of the container at points in between the flights of two adjacent mixing shovels.The high-speed choppers remove lumps in the raw material, chop pasty additives and prevent formation of agglomerates on liquid addition.The choppers can be switched on and off, independent of the main drive shaft. Thus, the influence of the chopper action on the product mix can be controlled.Jacket for heating, cooling.Wear resistant liner plates for abrasive products.Split design stuffing boxes, Air-purging stuffing boxes, Mechanical Seals. Spraying system for liquid injection.

• Fine quality
• Rugged
• Precise design
