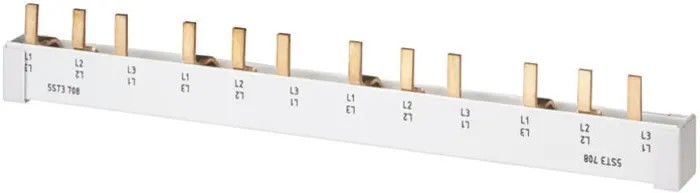

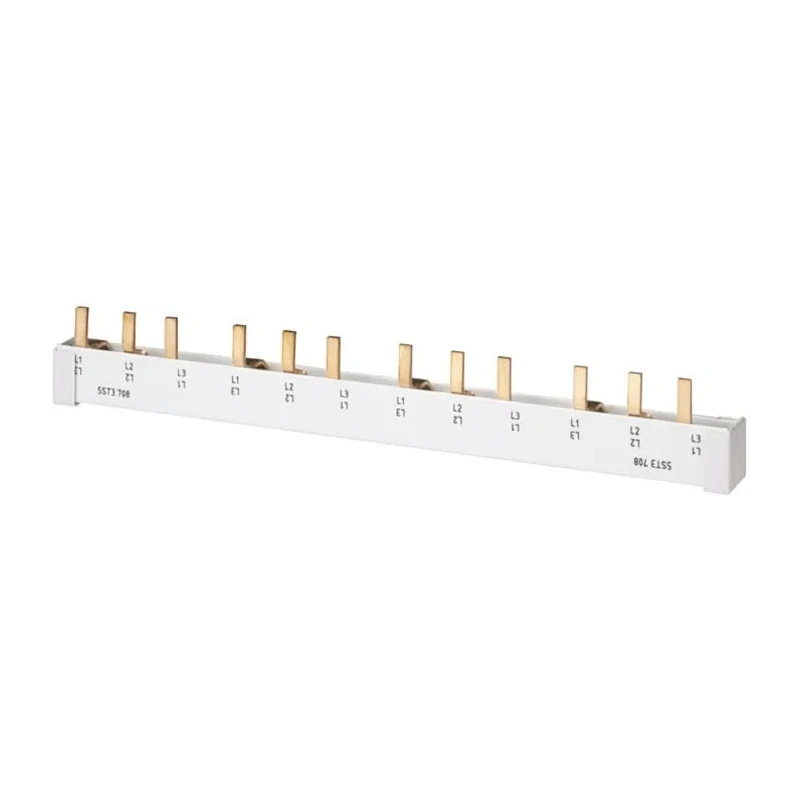

Siemens Copper SENTRON 3 Phase 63A Busbar, Rated Operational Voltage 400 V ac, 18 mm Pitch 5ST3740

Siemens 5ST3740 Copper SENTRON Busbar is a precision-engineered 3-phase busbar system designed for electrical power distribution in switchgear and distribution boards. Operating at a rated operational voltage of 400 V ac, it offers reliable current conduction with a current rating of 63A. Constructed from high-purity copper, this busbar ensures excellent electrical conductivity and durability in demanding industrial and commercial electrical setups.

The 5ST3740 busbar belongs to the SENTRON 5ST series, featuring an 18 mm pitch and lug spacing, facilitating efficient and neat connections in electrical panels. This design complies with EAC, UKCA, and CE standards, ensuring conformity with regional and international safety requirements.

Its cut-to-length design allows easy customization and installation, compatible with 1 or 3-phase line protective switches from series 5SJ6 and 5SY. The pin connection type minimizes the need for extra components, supporting stranded wires up to 35mm² without requiring additional terminals. The busbar ensures excellent accessibility for feeder cables, making maintenance and upgrades straightforward.

This busbar adapts to Type B characteristic circuit breakers providing instantaneous short circuit response suitable for circuits with moderate inrush currents, such as filament lamps and heating loads. It also supports Type C characteristic breakers suitable for circuits with higher inrush currents, including motor control and fluorescent lighting in industrial environments, preventing nuisance tripping.

Ideal for applications in electrical distribution systems within residential, commercial, and light industrial installations, the Siemens SENTRON 5ST busbar enhances electrical system reliability and safety.

Made from high-quality copper for excellent conductivity and durability. Designed for 3-phase electrical systems with a rated current of 63A. Compatible with series 5ST busbar systems for efficient cut-to-length installation.

Features 18 mm pitch and lug spacing for precise connection and accessibility. No additional connection terminals needed for stranded wires up to 35mm². Suitable for 1 or 3-phase line protective switches of series 5SJ6 and 5SY.

Provides excellent accessibility for feeder cable connections. Meets EAC, UKCA, and CE standards ensuring safety and compliance. Supports Type B and Type C circuit breaker characteristics for moderate to high inrush current applications.
