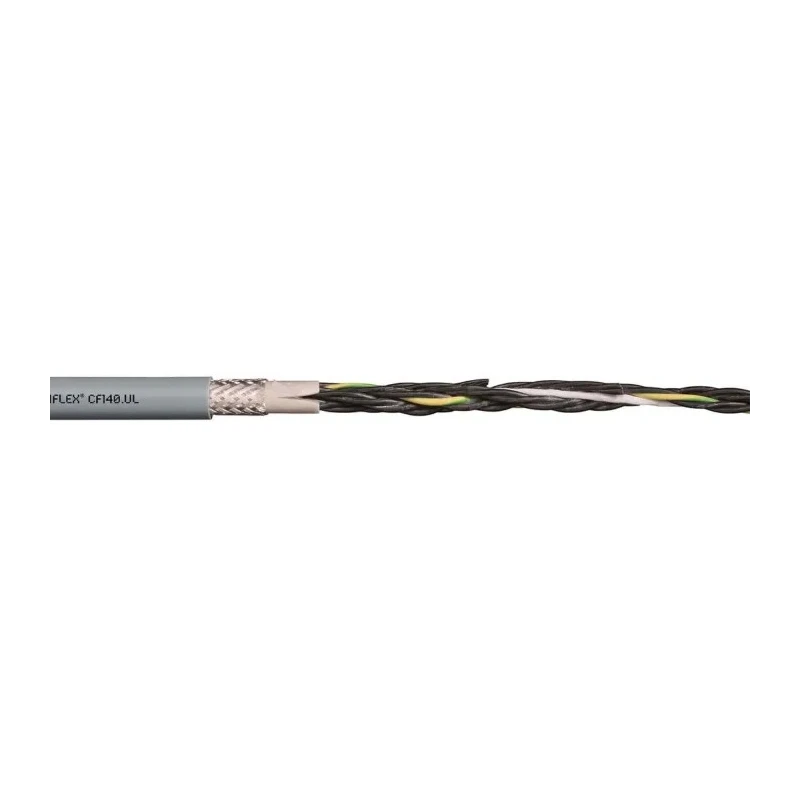

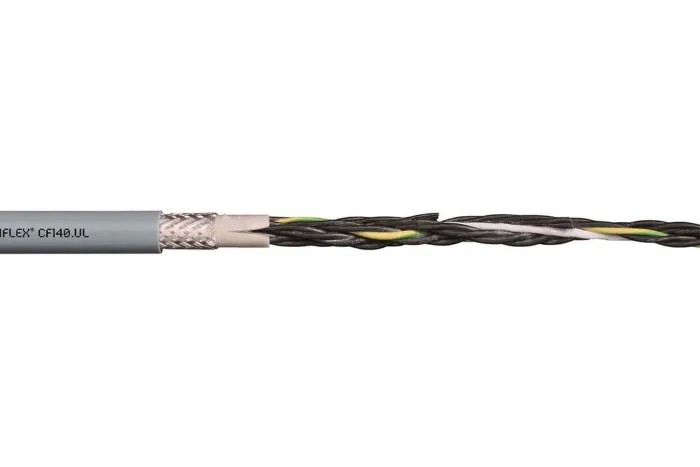

Igus Chainflex CF140.UL Control Cable, 4 Cores, 1mm² 17 AWG Screened Armoured Grey Thermoplastic Elastomer CF140.10.04.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF140.10.04.UL |
| Cable Length | 10m |
| Series | Chainflex CF140.UL |
| Outside diameter | 9mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 17AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 1mm² |
Key Features
- The cable features a stranded bare copper conductor for optimal electrical conductivity.
- Designed for medium load requirements in industrial and automation applications.
- Shielded construction reduces electrical interference and improves signal integrity.
- Outer jacket made of durable thermoplastic elastomer providing flame retardance and mechanical protection.
- Suitable for indoor use, supporting freely suspended travel distances and gliding applications up to 50 meters.
- Operating voltage rating of 500V, ensuring safe electrical performance.
- Compliance with international standards including IEC 60332-1-2, CEI 20-35, FT1, and VW1-1 flame retardant classifications.
- Operating temperature range from -5°C up to 70°C enables versatile environmental deployment.
Product Description
Igus CF140.10.04.UL control cable is a high-quality, screened and armoured cable featuring 4 cores with 1mm² conductor size (17 AWG), designed for industrial automation, electrical, and control applications.
The cable's conductor is made from stranded bare copper wires according to EN 60228 standards, ensuring efficient electrical conductivity and flexibility. The thermoplastic elastomer sheath colored grey provides robust mechanical protection and flame retardance, certified to IEC 60332-1-2 and additional standards such as CEI 20-35, FT1, and VW1-1.
This control cable is specially engineered to withstand medium load requirements and is especially suitable for indoor use where cables are subjected to free suspended travel or gliding motions up to 50 meters. Its armoured construction adds mechanical durability against impacts and abrasions commonly found in industrial settings.
The cable supports an operating voltage of 500V and can operate reliably in temperature ranges from -5°C to 70°C, providing versatility for various industrial environments. It is screened to minimize electromagnetic interference and maintain signal integrity during control and communication tasks.
The cable contains 4 cores each with a cross-sectional area of 1mm² (17 AWG). The outer sheath is made of thermoplastic elastomer which is grey colored. Armoured for enhanced mechanical protection. Shielded to ensure reduced electrical noise and improved signal quality.
Flame retardant complying with multiple international standards. Ideal for use in automation, electrical power, and industrial cable applications.
Manufactured in Japan, the Igus Chainflex CF140.UL control cable is recognized for its durability, quality, and compliance with rigorous safety standards. It is an excellent wiring solution for process control, industrial automation, and other electrical installations requiring reliable, shielded Control Cables.
Experience enhanced safety, flexibility, and performance with the Igus CF140.10.04.UL cable suited for demanding industrial environments. Browse more electrical and automation cables in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus CF140.UL control cable has an operating voltage rating of 500V.
The maximum operating temperature for this control cable is 70°C.
This model features 4 cores, each with a cross-sectional area of 1mm² (17 AWG).
The cable has a jacket made of thermoplastic elastomer and features stranded bare copper conductors for optimal conductivity.
The outer diameter of this control cable is 9mm.
The Igus CF140.UL control cable is designed for indoor use, particularly for applications involving free suspended travel and gliding motions.
The cable complies with multiple flame retardant standards including IEC 60332-1-2, CEI 20-35, FT1, and VW1-1.
The minimum operating temperature for the Igus CF140.UL control cable is -5°C.
Yes, the Igus CF140.UL control cable is screened to minimize electromagnetic interference and improve signal integrity.
This control cable is suitable for industrial automation, electrical power, and control applications.
The cable is manufactured in Japan.
The Igus CF140.UL control cable uses stranded bare copper conductors.
