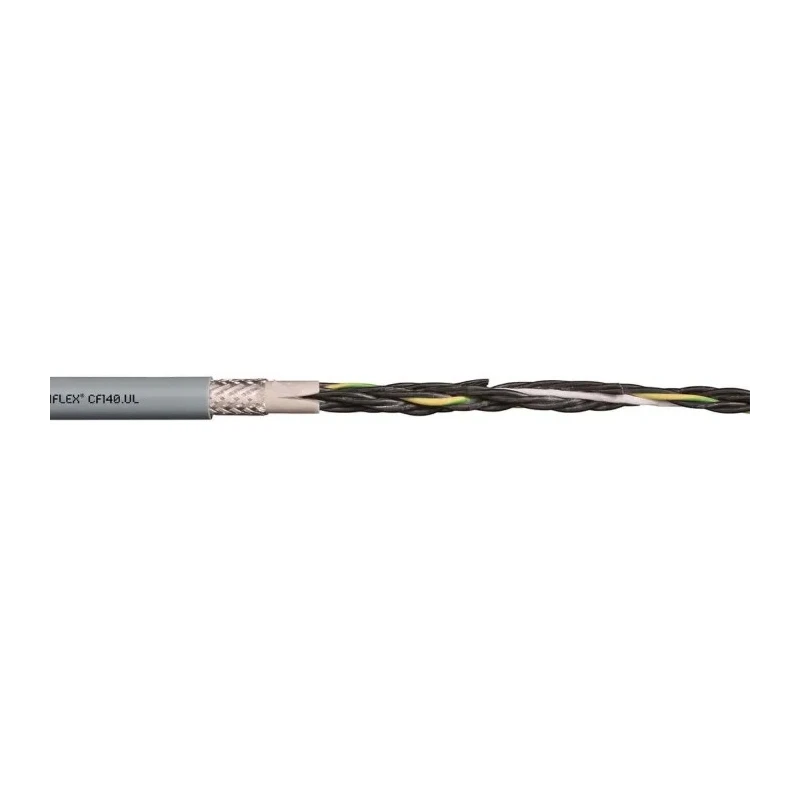

Igus Chainflex CF140.UL Screened Armoured Control Cable 3 Cores 1.5mm² 15 AWG 500V 10m Grey Thermoplastic CF140.15.03.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF140.15.03.UL |
| Cable Length | 10m |
| Series | Chainflex CF140.UL |
| Outside diameter | 9mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 3 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- The cable has a grey thermoplastic elastomer sheath for durability and flexibility.
- It is flame retardant and suitable for medium load applications.
- Constructed with fine-wire stranded bare copper conductors for excellent conductivity.
- Temperature range spans from -5°C to 70°C for versatile environmental operation.
- Meets international standards including EN and CE certifications.
- Armoured design enhances mechanical protection for industrial uses.
- Designed primarily for indoor use and freely suspended travel distances up to 50 meters.
- Complies with flame retardant requirements IEC 60332-1-2, CEI 20-35, FT1 and VW1-1.
Product Description
Igus CF140.15.03.UL Control Cable is a screened, armoured industrial-grade control cable with 3 cores of 1.5mm² (15 AWG) fine-wire stranded bare copper conductors, designed to carry 500 volts in medium load electrical and automation systems.
The grey thermoplastic elastomer sheath provides excellent chemical and mechanical protection while maintaining flexibility for cable routing and installation. This cable is primarily suited for indoor applications such as control wiring in electrical panels, automation machinery, and industrial equipment.
The CF140 series is tailored for continuous motion use, including freely suspended travel distances and gliding applications up to 50 meters, making it ideal for dynamic control environments.
It meets flame retardant standards IEC 60332-1-2, CEI 20-35, FT1, VW1-1, ensuring safety in critical industrial installations by minimizing fire spread risks. The cable operates reliably between temperatures of -5°C to 70°C without degradation, suited for typical factory and process control environments.
Its armoured construction offers enhanced mechanical protection against abrasion, cuts, and mechanical stress, which prolongs lifecycle and reduces downtime in industrial settings.
The cable has a fine-wire stranded bare copper conductor construction following EN 60228. Designed for 10-meter lengths to support efficient installation runs. Meets European EN and CE standards for quality assurance.
Manufactured in Japan to stringent quality standards, the CF140.UL is an optimal solution for electrical and automation control systems requiring robust, flame-retardant, and flexible cables.
EnvMart customers can browse additional Control Cables and related industrial electrical products to find compatible accessories and alternatives.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus Chainflex CF140.UL control cable is rated for 500 volts.
This model can operate reliably at temperatures up to 70°C.
The cable features 3 cores of 1.5mm² (15 AWG) stranded bare copper conductors.
The cable is available in a length of 10 meters.
The jacket is constructed from thermoplastic elastomer, providing flexibility and protection.
This cable is primarily designed for indoor applications and is suitable for freely suspended travel distances up to 50 meters.
It complies with international standards including EN and CE certifications, as well as flame retardant requirements IEC 60332-1-2, CEI 20-35, FT1, and VW1-1.
The outside diameter of this control cable is 9mm.
The cable uses fine-wire stranded bare copper conductors for excellent conductivity.
The cable is flame retardant, minimizing fire spread risks in critical industrial installations.
It is designed for medium load electrical and automation systems, including control wiring in electrical panels and industrial equipment.
This cable is manufactured in Japan to stringent quality standards.
