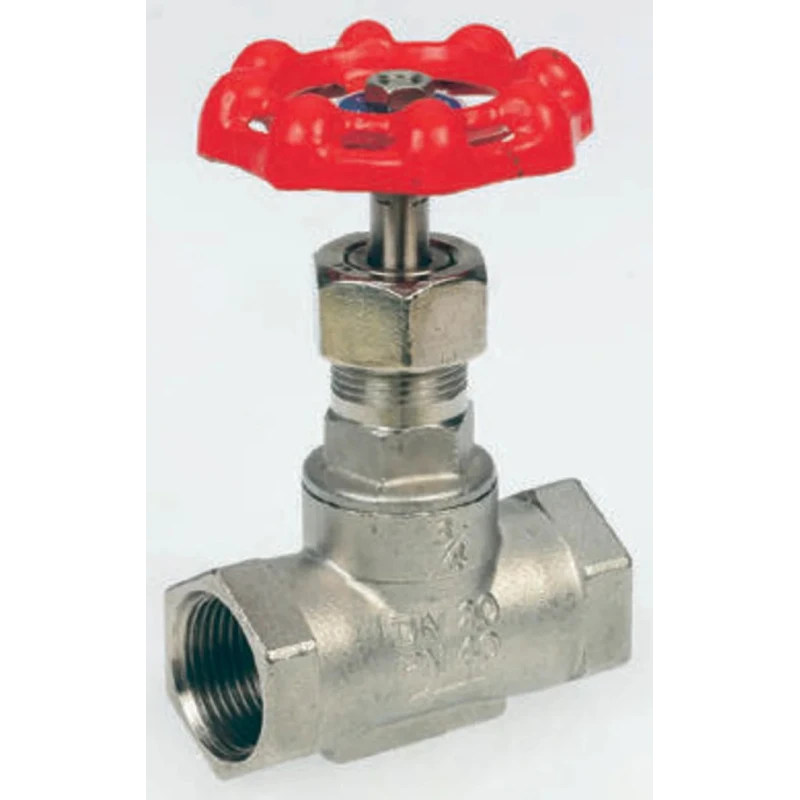

RS PRO Stainless Steel Globe Valve Threaded 32 bar 1.25 in Female G Model 499-2593

RS PRO 499-2593 Stainless Steel Globe Valve is engineered for precise flow regulation in industrial pipelines. Featuring a durable stainless steel construction and threaded 1.25 inch female G inlet and outlet ports, this globe valve handles a maximum operating pressure of 32 bar and a temperature range from -20°C to 200°C, making it well-suited for a variety of mechanical, hydraulic, and fluid power applications.

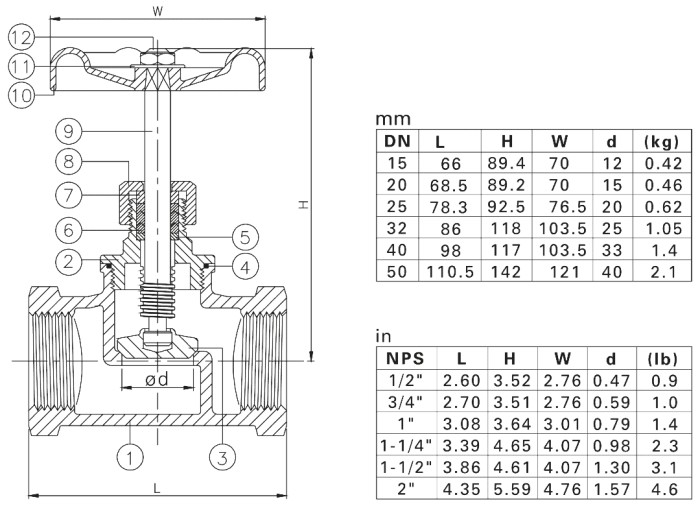

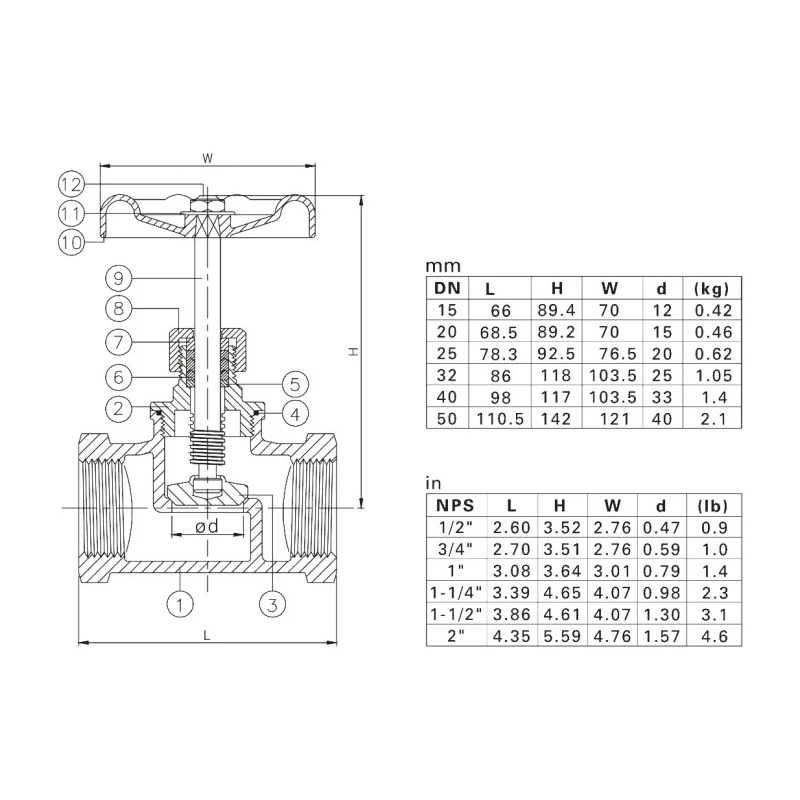

Manufactured using ASTM A351-CF8M specifications, the valve body, bonnet, and disc provide excellent corrosion resistance and long service life through investment casting technology. The sealing components use PTFE materials, ensuring leak-tight performance while the stem nut and packing components are constructed from AISI 304 stainless steel for exceptional mechanical integrity.

This globe valve adheres to multiple international thread standards including ASME B1.20.1 (NPT), DIN 2999, BS21, ISO7/1, and EN10226, enabling compatibility with diverse piping systems. Its aluminium handle and nameplate provide ergonomic operation and clear identification.

Ideal for use in industrial pipelines, water treatment plants, chemical processing, and HVAC systems, this valve supports robust flow control and regulation under demanding working conditions. The threaded design allows for straightforward installation and maintenance in commercial or industrial settings requiring reliable valve operation.

Maximum operating pressure of 32 bar for high-pressure applications. Constructed from robust stainless steel material for durability and corrosion resistance. Operates efficiently between -20°C and 200°C temperature range.

Threaded inlet and outlet connections offer easy installation and maintenance. Compliant with ASME B1.20.1 (NPT), DIN 2999, BS21, ISO7/1, and EN10226 thread standards. Features ASTM A351-CF8M investment casting body, bonnet, and disc.

Seal and packing made from reliable PTFE for leak prevention. Stem nut, gland ring, and washer manufactured from AISI 304 stainless steel. Handle and nameplate crafted from aluminum for lightweight handling. Designed for industrial, hydraulic, fluid power, and pipeline uses.

This RS PRO stainless steel globe valve is an essential component for industries requiring precise flow regulation and high durability under elevated pressure and temperature conditions. Browse EnvMart's wide range of Industrial Valves for additional solutions in pipeline flow control.
