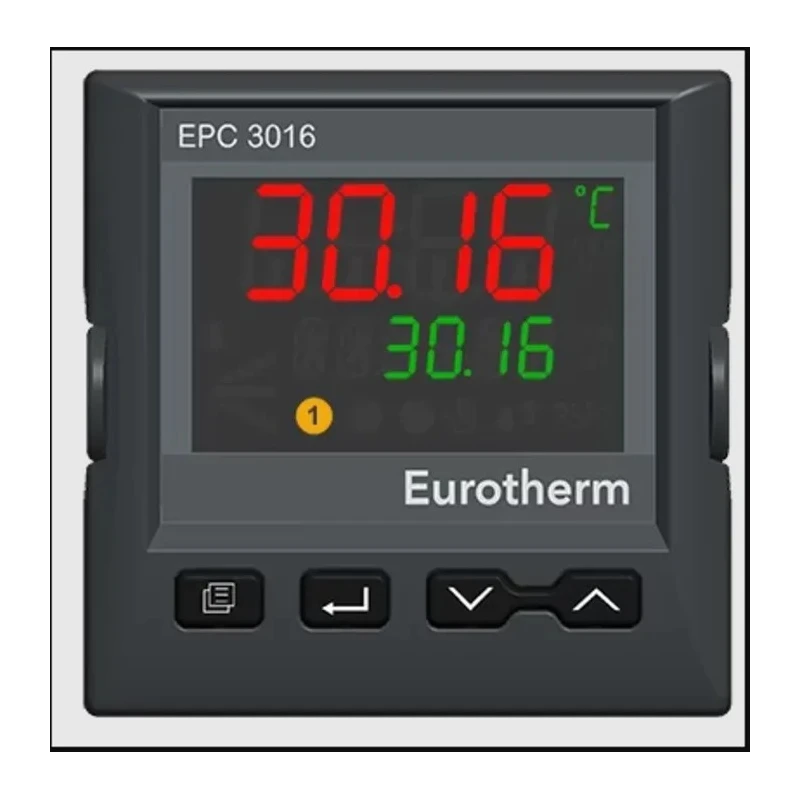

Eurotherm Panel Mount PID Controller 1 Input DC, 2 Relay 24V ac/dc PID Controller EPC3016

Eurotherm EPC3016 is a panel mount programmable single loop PID controller designed for precise control of thermal and other process applications. It features 1 DC input and 2 relay outputs compatible with a 24V ac/dc supply voltage, tailored for industrial automation and process control environments.

Equipped with an LCD display, the controller provides clear data visualization and straightforward process monitoring. The device supports a variety of input types including current, thermocouple, and voltage signals, enabling versatile sensing configurations for different industrial processes.

Its compact dimensions of 101mm length, 48mm width, and 90mm panel depth make it ideal for embedded applications on control panels. The product is rated IP65, ensuring protection against dust ingress and water splashes, suitable for harsh industrial environments.

The built-in native fast Ethernet interface with RJ45 connector facilitates integration into digitized Industry 4.0 and Industrial Internet of Things (IIoT) systems, enhancing connectivity and remote monitoring capabilities. The controller supports Modbus, Ethernet/IP, and BACnet protocols.

Additional features include enhanced PID control with a cutback function, which allows for fast response times with minimal overshoot, meeting stringent aerospace and industrial standards including AMS2750 and CQI-9. It offers up to 20 ramp or soak program profiles for flexible process shaping.

This Eurotherm product is manufactured in Poland and boasts certification for cybersecurity resilience (Achilles Level 1), and RoHS compliance, aligning with modern regulatory and operational requirements.

Applications span industrial, laboratory, HVAC, manufacturing, water treatment, and other control-intensive settings requiring precise temperature or process variable regulation. Featuring an LCD display for user-friendly interaction and programming.

Supports input types including current, thermocouple, and voltage sensors. Designed for panel mounting with IP65 rating ensuring dust and splash protection. Includes native high-speed Ethernet interface with RJ45 for Industry 4.0 applications.

Operates reliably within temperature range 0°C to 55°C and accepts 24V ac/dc supply voltage. Incorporates enhanced PID control with cutback function for rapid response and reduced overshoot. Meets RoHS compliance standards, ensuring environmentally responsible manufacturing.

Compact form factor with dimensions 101mm (L) x 48mm (W) x 90mm (Depth). Poland manufactured device with Achilles Level 1 cybersecurity resilience certification. Explore more Temperature Controllers and automation solutions within EnvMart’s comprehensive catalog.
