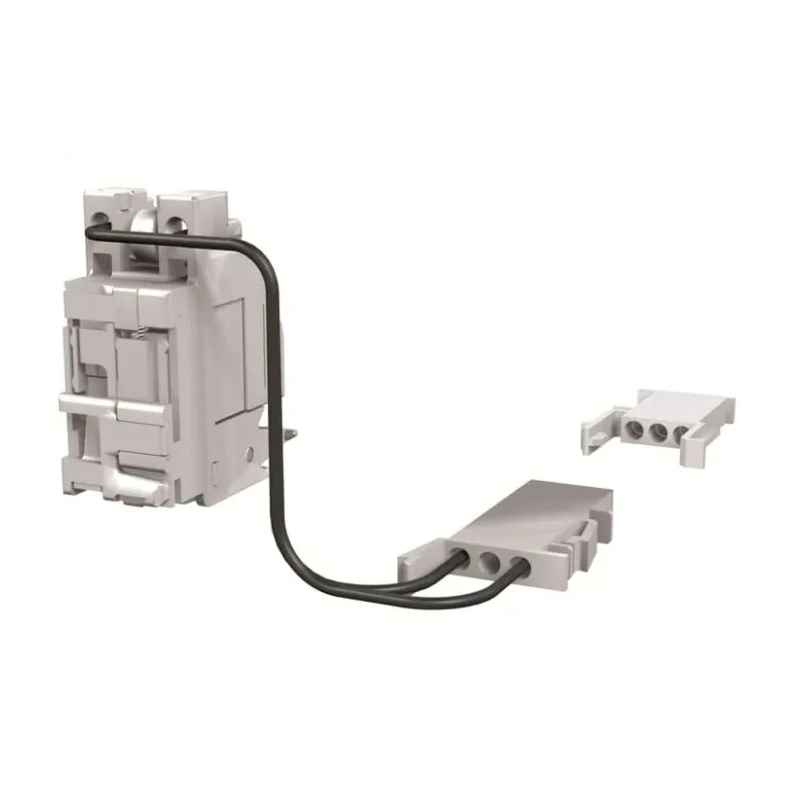

ABB Tmax XT Auxiliary Switch Kit 1SDA066330R1 SOR-C XT2-XT4 W 48-60VAC/D

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Auxiliary Switch Kit 1SDA066330R1 SOR-C XT2-XT4 W 48-60VAC/D



Category Circuit Breaker Accessories Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	60mm
Model	1SDA066330R1 SOR-C XT2-XT4 W 48-60VAC/D
Depth	140mm
Width	110mm
Standard	IEC 60947-2
Series	Tmax XT
Standards/Approvals	RoHS, IEC
Rated AC Voltage	60V ac
Rated DC Voltage	60V dc

Key Features

The kit includes a cabled shunt opening release (SOR) enabling non-permanent electrical control of circuit breaker opening.
Operation is guaranteed for voltage between 70% and 110% of the rated power supply voltage, suitable for AC and DC currents.
The SOR features a built-in limit contact for power supply shut-off when the trip unit is tripped.
Compact net dimensions of 140 x 110 x 60 mm optimize space usage in panel installations.
Compatible accessory specifically designed for use with Tmax XT2 and XT4 series circuit breakers.
Manufactured in Italy, meeting IEC 60947-2 standards and RoHS compliance.

Product Description

ABB 1SDA066330R1 SOR-C XT2-XT4 Auxiliary Switch Kit is a specialized accessory designed for Tmax XT series withdrawable circuit breakers, providing reliable auxiliary switching capabilities essential in industrial and commercial electrical systems. This auxiliary switch kit allows a shunt opening release operation via non-permanent electrical command, enhancing circuit breaker control flexibility.

The device operates effectively within a voltage range of 48 to 60 V AC/DC, ensuring optimal performance between 70% and 110% of the rated power supply voltage. The built-in limit contact function adds safety by cutting off power supply in the open position when the main trip unit is activated, preventing unintended power flow and enhancing system protection.

Compactly designed with net dimensions of 140 mm depth, 110 mm width, and 60 mm height, the kit is easy to mount and integrates neatly within control panels. Its compatibility with Tmax XT2 and XT4 series provides engineers and technicians confidence in a robust and seamless fitment to their circuit protection setup.

Manufactured under strict quality standards in Italy, the product complies with IEC 60947-2 and RoHS certification requirements, ensuring adherence to international safety and environmental norms. This auxiliary switch kit is essential for applications in electrical distribution, automation control gear, manufacturing plants, commercial buildings, and infrastructure projects requiring dependable circuit breaker accessories.

The kit includes a cabled shunt opening release (SOR) enabling non-permanent electrical control of circuit breaker opening. Operation is guaranteed for voltage between 70% and 110% of the rated power supply voltage, suitable for AC and DC currents.

The SOR features a built-in limit contact for power supply shut-off when the trip unit is tripped. Compact net dimensions of 140 x 110 x 60 mm optimize space usage in panel installations. Compatible with Tmax XT2 and XT4 series withdrawable circuit breakers.

Compliant with IEC 60947-2 and RoHS standards. Explore the ABB Tmax XT range and other high-quality Circuit Breaker Accessories available on EnvMart for comprehensive industrial electrical protection solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The auxiliary switch kit operates effectively within a voltage range of 48 to 60 V AC/DC, with guaranteed operation between 70% and 110% of the rated power supply voltage.

This model is specifically designed for use with Tmax XT2 and XT4 series circuit breakers, ensuring a reliable fitment for enhanced circuit protection.

The kit has compact net dimensions of 140 mm in depth, 110 mm in width, and 60 mm in height, optimizing space usage in panel installations.

It features a built-in limit contact that cuts off the power supply when the trip unit is tripped, preventing unintended power flow and enhancing system protection.

This auxiliary switch kit complies with IEC 60947-2 standards and is RoHS certified, ensuring adherence to international safety and environmental norms.

The cabled shunt opening release (SOR) enables non-permanent electrical control of circuit breaker opening, providing enhanced control flexibility.

The product is manufactured in Italy, adhering to strict quality standards.

It is suitable for both AC and DC currents, making it versatile for various electrical applications.

The rated AC voltage for this auxiliary switch kit is 60V AC.

The rated DC voltage for this model is 60V DC, ensuring it operates effectively within this range.

By allowing non-permanent electrical commands for circuit breaker opening, it enhances control flexibility in industrial and commercial electrical systems.

It is essential for applications in electrical distribution, automation control gear, manufacturing plants, commercial buildings, and infrastructure projects.
