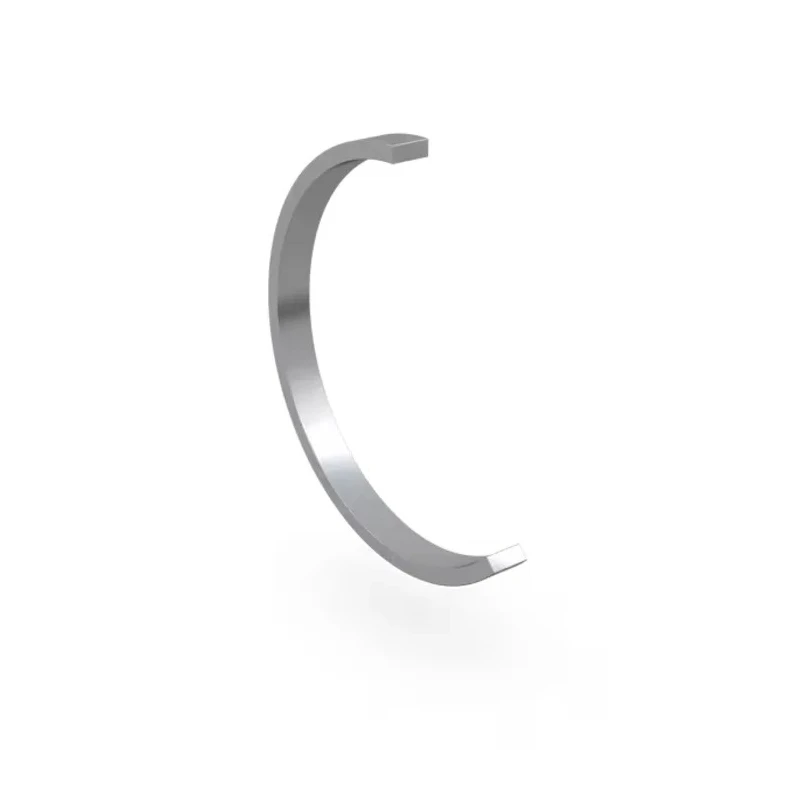

SKF Locating Ring 129 mm Inside Diameter 95 mm Centre Height 215 kN Static Load Rating FRB 5/140

SKF FRB 5/140 Locating Ring is engineered to provide reliable axial positioning of bearings and rotating assemblies in industrial applications. Featuring a 129 mm inside diameter and robust static load rating of 215 kN, this locating ring supports heavy-duty axial forces in fixed mechanical systems.

The locating ring includes a 20 mm mounting hole for secure attachment and its slim 5 mm depth ensures minimal axial intrusion. Measuring 315 mm in length and 177 mm in height, it offers ample axial span and robust engagement for long-bearing arrangements, while the 95 mm centre height simplifies alignment within housings.

Manufactured under the FRB series standards, this component is ideal for industrial applications including conveyor drive assemblies, motor and gearbox units, and automation equipment. It is also suitable for refurbishing mechanical transmission systems and aligning components in electrical switchgear drive trains.

The inside diameter of 129 mm demands mating shafts or inserts correspond precisely for optimal bearing retention and location control. This makes it an essential part for ensuring accurate assembly and operational reliability in industrial machinery.

This locating ring offers high static capacity suitable for heavy-duty axial loads. The mounting hole is 20 mm in diameter ensuring secure fixation. The low-profile 5 mm wall thickness minimizes axial space requirements.

Its extended length of 315 mm supports long-bearing arrangements. The compact centre height of 95 mm facilitates accurate alignment in housings. An overall height of 177 mm enhances robust assembly engagement. Designed for use in conveyor drives, motor units, gearboxes and industrial automation.

It facilitates electrical switchgear drive train alignment and mechanical transmission system refurbishment. Mating shafts or inserts must match the 129 mm internal diameter for proper seating.

This SKF locating ring is produced in China and supplied in new condition. It is a critical component for industrial mechanical assemblies requiring precise bearing location and high load resistance. Browse similar products in the Plummer Blocks & Pillow Blocks category for complementary industrial components and assemblies.
