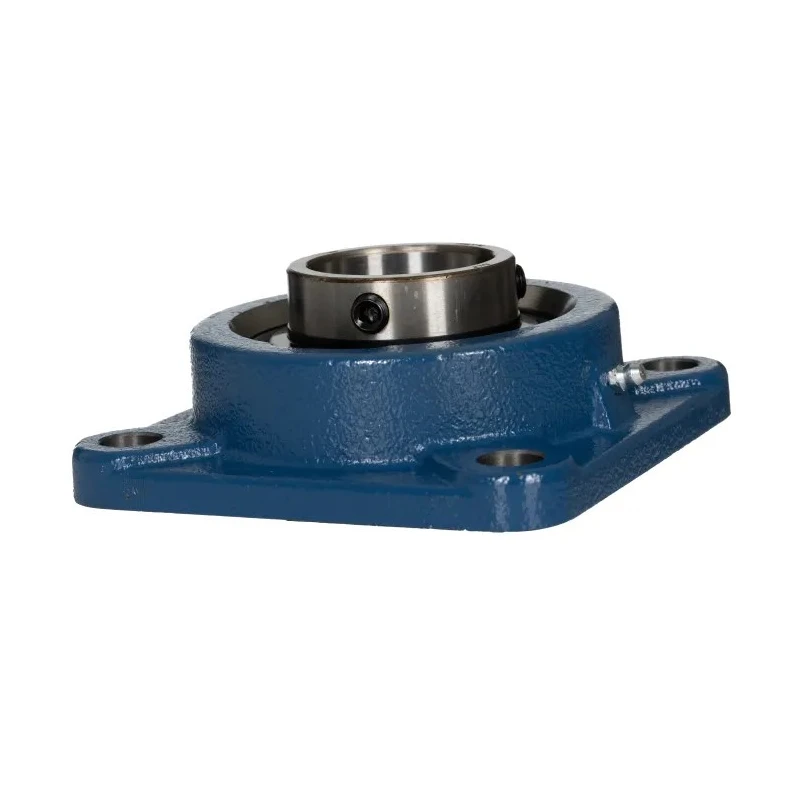

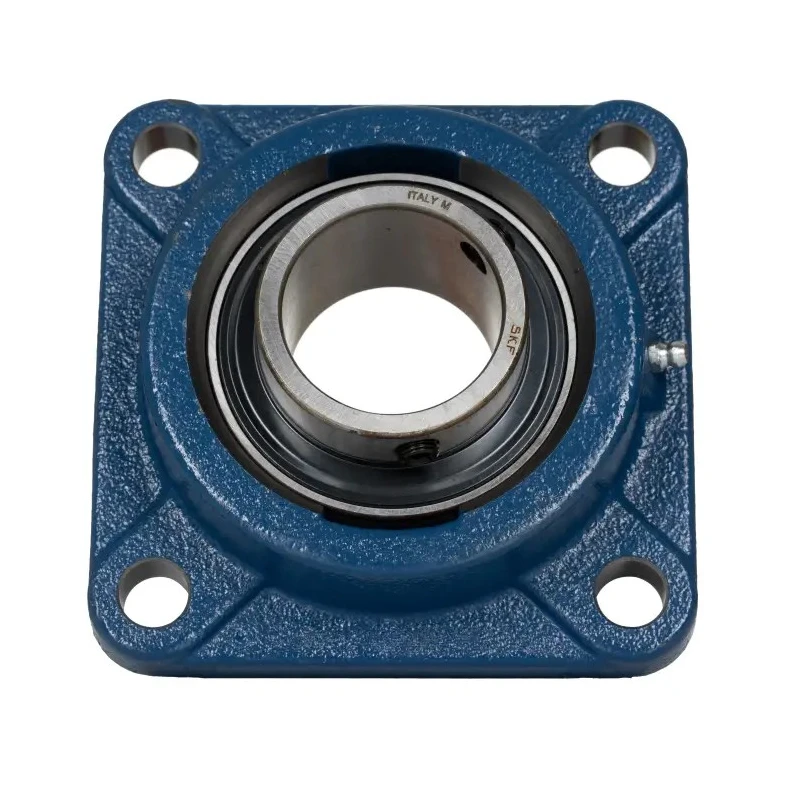

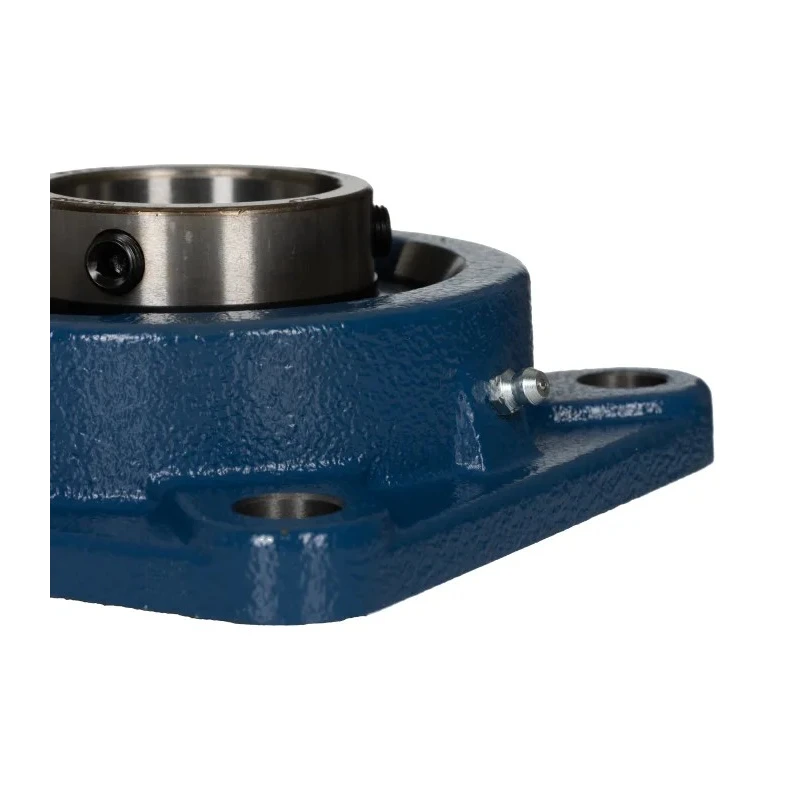

SKF Flanged Bearing Unit, Square Housing, 4 Hole Mount, 60mm Inside Diameter, Cast Iron, Set Screw Locking FYJ 60 TF

The SKF FYJ 60 TF is a high-quality flanged bearing unit designed to provide reliable and robust support for rotating shafts in industrial machinery. This bearing unit features a 60 mm inside diameter and comes with a durable cast iron square housing that offers excellent resistance to mechanical wear, impacts, and corrosion.

Equipped with 4 mounting holes and a set screw locking mechanism, installation is secure and straightforward. The open end type and cylindrical bore allow for precise shaft fitting, ensuring optimal performance under demanding conditions.

The bearing unit is engineered for high-speed operation with a limiting speed of 3400 rpm, minimizing the risk of overheating in rapid rotation applications. It supports heavy mechanical loads with a dynamic load rating of 52.7 kN and a static load rating of 36 kN, making it suitable for a wide range of industrial applications.

The mounting hole size is 19 mm, with a centre-to-centre hole distance of 143 mm, and overall unit dimensions of 175 mm length, 68.7 mm width, and 68.7 mm depth provide a compact yet strong assembly. Additional features include protective seals and flingers on both sides to shield the bearing from dirt and moisture, enhancing durability and service life.

This bearing unit comes pre-greased with a provision for relubrication through a built-in hole, allowing continued smooth operation and reduced maintenance frequency. The SKF FYJ 60 TF flange bearing is ideal for use in automotive engineering, conveyor systems, construction equipment, and power stations, offering dependable performance in rigorous industrial environments.

The unit features 4 mounting holes and a set screw locking type for firm attachment. Constructed with a durable cast iron material housing to resist mechanical wear and impacts. Designed with an open end type and cylindrical bore to accommodate precise shaft fitting.

Capable of a limiting speed of 3400 rpm, suitable for high-speed applications. Dynamic load rating of 52.7 kN and static load rating of 36 kN to handle heavy mechanical loads. Mount hole size is 19 mm and the center-to-center distance between holes is 143 mm.

Overall dimensions include length of 175 mm, width and depth of 68.7 mm each. Protected by seals and flingers on both sides to resist dirt and moisture ingress. Comes pre-greased with a relubrication hole for maintenance to ensure smooth operation.

Ideal for industrial use in automotive engineering, conveyor systems, construction equipment, and power stations. Explore the SKF range and other Bearing Units on EnvMart for reliable industrial solutions.
