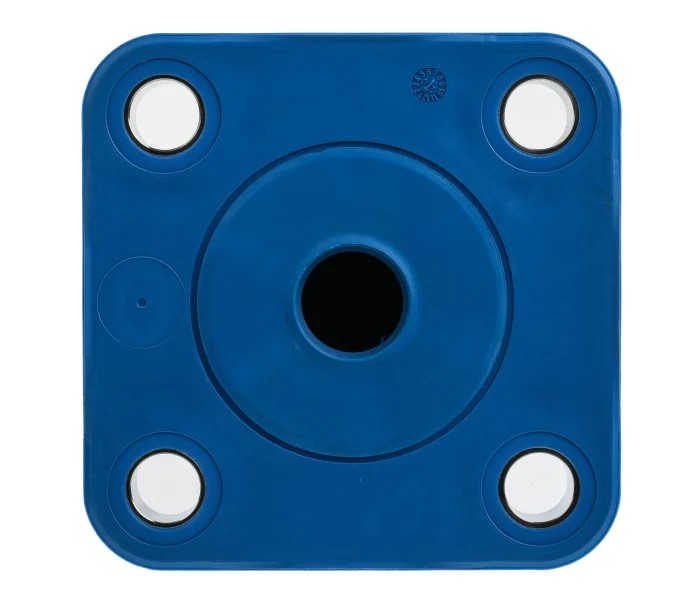

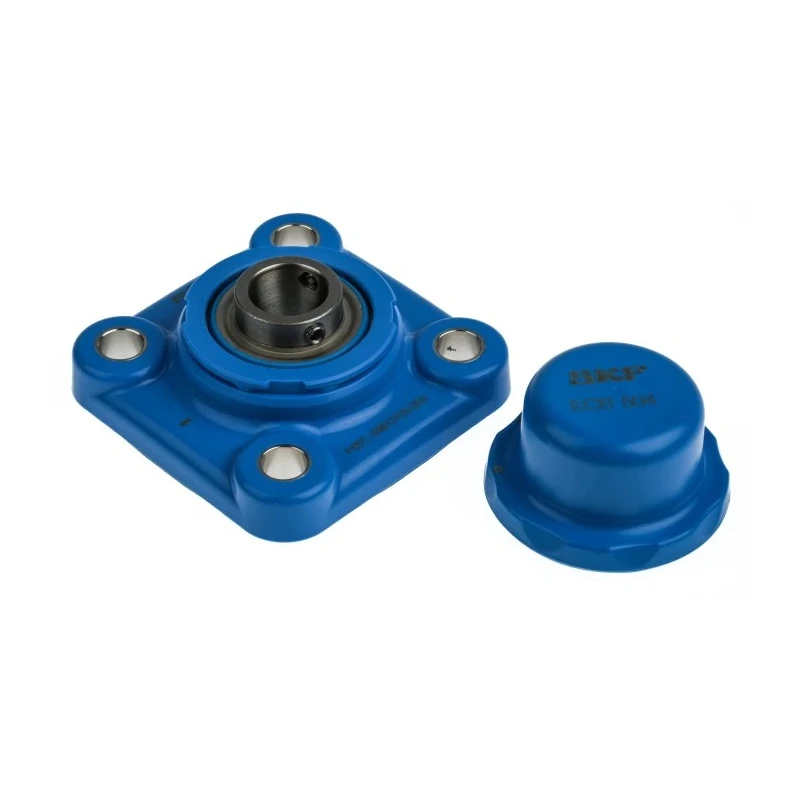

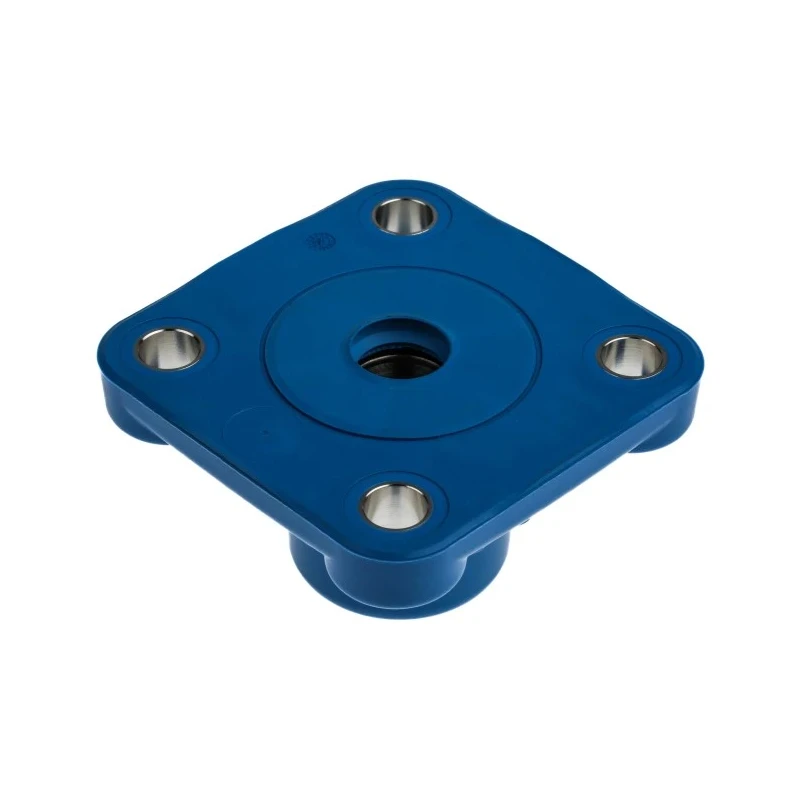

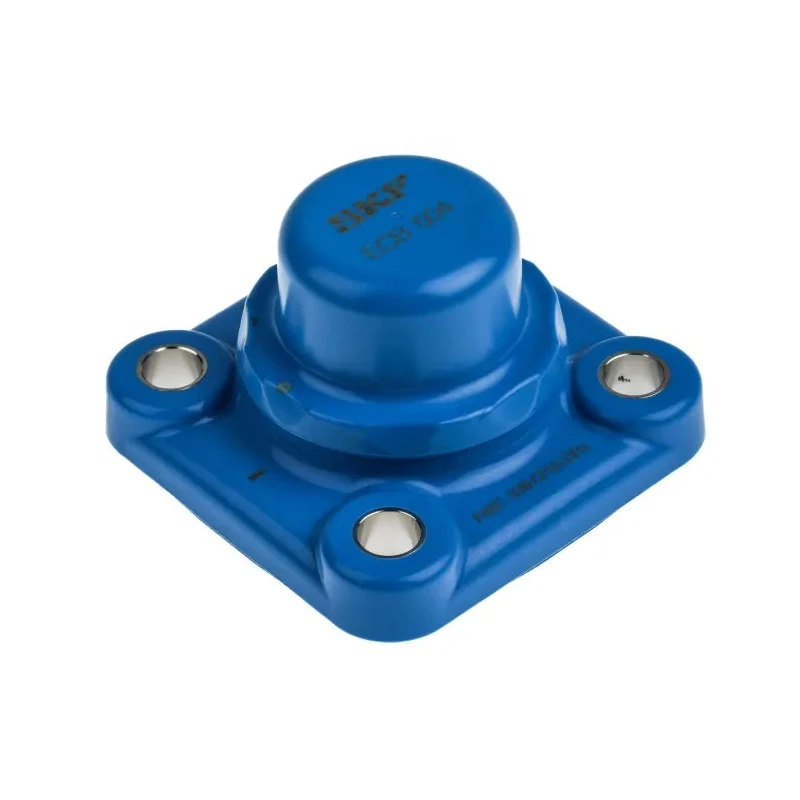

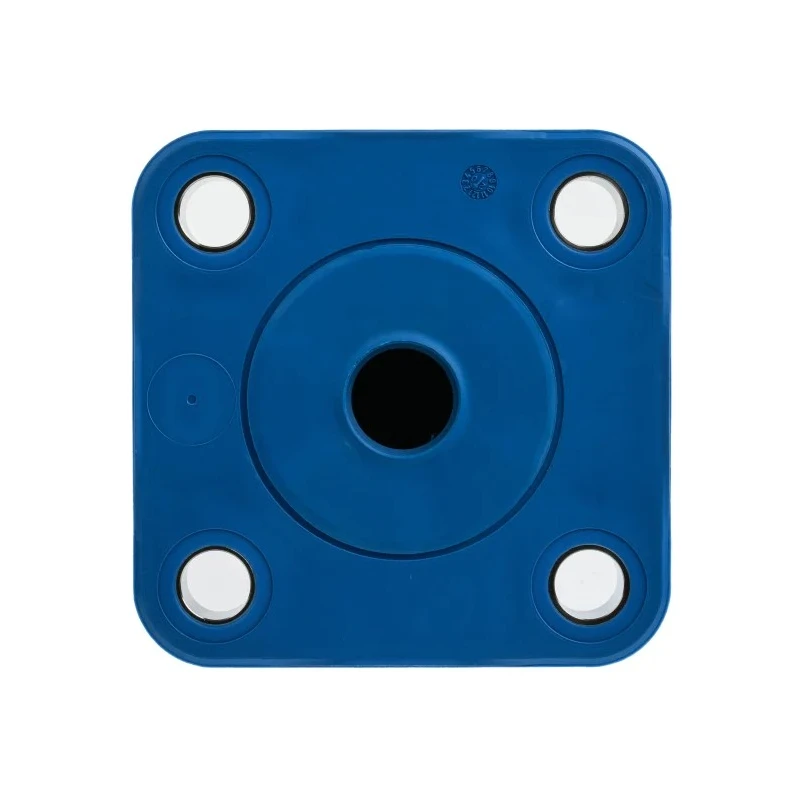

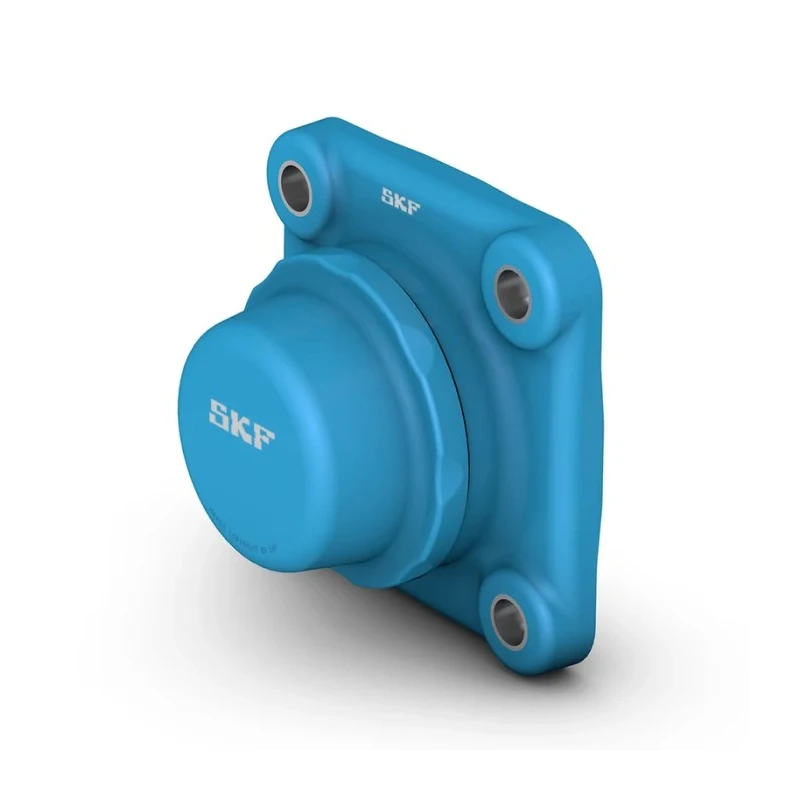

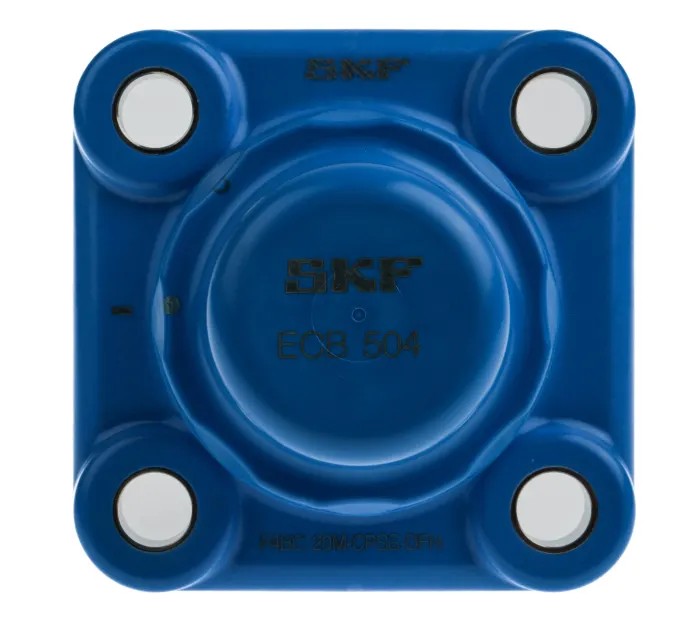

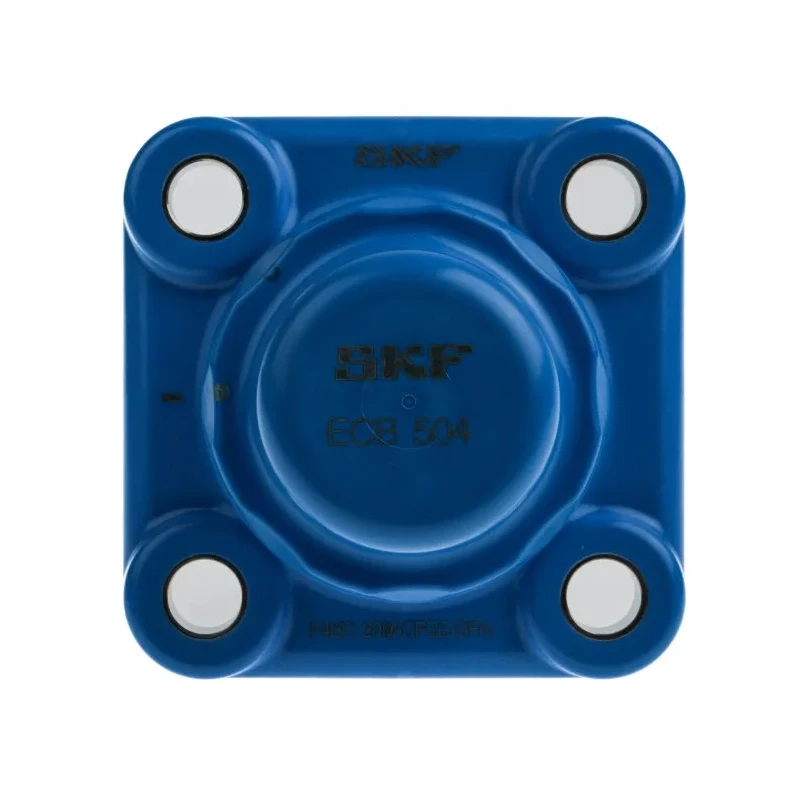

SKF Stainless Steel 4 Hole Flange Bearing Unit 20 mm ID, Set Screw Locking, SKF Food Line Series F4BC 20M-CPSS-DFH
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | SKF |
| Material | Stainless Steel |
| Length | 92mm |
| Model | F4BC 20M-CPSS-DFH |
| Depth | 54.1mm |
| Width | 54.1mm |
| Series | SKF Food Line |
| Inside Diameter | 20mm |
| Limiting Speed | 700rpm |
| Static Load Rating | 6.55kN |
| Better World Claim | Extended Product Life |
| Dynamic Load Rating | 10.8kN |
| Mount Hole Size | 11.5 mm |
| Mount Hole Centre-to-Centre | 63.5mm |
| Number of Mount Holes | 4 |
| Locking Type | Set Screw |
Key Features
- The housing is corrosion-resistant and hygienic for food environments.
- Dynamic load rating of 10.8 kN ensures suitability for heavy-duty applications.
- Static load rating of 6.55 kN supports stable operation under load.
- Four mounting holes allow secure installation with set screws.
- Compact dimensions enable installation in tight spaces.
- Limiting speed rated at 700 rpm for high-speed applications.
- Lightweight design at 0.31 kg reduces equipment strain.
- Sealed with gutter and end seals to retain lubricant and exclude contaminants.
Product Description
SKF F4BC 20M-CPSS-DFH flange bearing unit features a corrosion-resistant stainless steel housing with a 20 mm inside diameter and set screw locking mechanism. This unit is designed to support rotary shafts in industrial machines, particularly in hygienic environments such as food and beverage processing facilities.
The bearing unit is part of the SKF Food Line series, emphasizing contamination resistance and ease of cleaning. It delivers a dynamic load rating of 10.8 kN and a static load rating of 6.55 kN, making it suitable for heavy-duty and continuous operation.
Measuring 92 mm in length, 54.1 mm in both width and height, and with four mounting holes sized 11.5 mm and spaced 63.5 mm apart center-to-center, the flange bearing offers ease of installation. The limiting speed of 700 rpm accommodates high-speed rotary applications while minimizing wear.
Its lightweight of 0.31 kg reduces the strain on equipment and contributes to operational efficiency. The bearing unit is sealed with gutter seals and an end seal to retain lubricant and prevent ingress of contaminants, thus extending service life.
Applications include bottling plants, belt drives, pharmaceutical production, and medical equipment, where reliability and cleanliness are paramount. The housing is corrosion-resistant and hygienic for food environments.
Dynamic load rating of 10.8 kN ensures suitability for heavy-duty applications. Static load rating of 6.55 kN supports stable operation under load. Four mounting holes allow secure installation with set screws. Compact dimensions enable installation in tight spaces.
Limiting speed rated at 700 rpm for high-speed applications. Lightweight design at 0.31 kg reduces equipment strain. Sealed with gutter and end seals to retain lubricant and exclude contaminants. Suitable for bottling plants, belt drives, pharmaceutical and medical industries.
Selecting this SKF bearing unit supports sustainability and product longevity in industrial applications. Explore more Bearing Units and related solutions on EnvMart to enhance your operation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of the SKF F4BC 20M-CPSS-DFH bearing unit is 10.8 kN, making it suitable for heavy-duty applications.
The static load rating for this bearing unit is 6.55 kN, supporting stable operation under load.
This model has a limiting speed rated at 700 rpm, accommodating high-speed rotary applications.
The bearing unit measures 92 mm in length, 54.1 mm in width, and 54.1 mm in height.
It features four mounting holes, each sized 11.5 mm and spaced 63.5 mm apart center-to-center for secure installation.
This model utilizes a set screw locking mechanism to secure the rotary shaft.
The housing of this bearing unit is made from corrosion-resistant stainless steel, suitable for hygienic environments.
It is designed for use in bottling plants, belt drives, pharmaceutical production, and medical equipment, where reliability and cleanliness are crucial.
The weight of the SKF F4BC 20M-CPSS-DFH is 0.31 kg, which helps reduce strain on equipment.
It is sealed with gutter seals and an end seal to retain lubricant and prevent the ingress of contaminants.
This bearing unit is manufactured in Italy.
This model is part of the SKF Food Line series, emphasizing contamination resistance and ease of cleaning.
