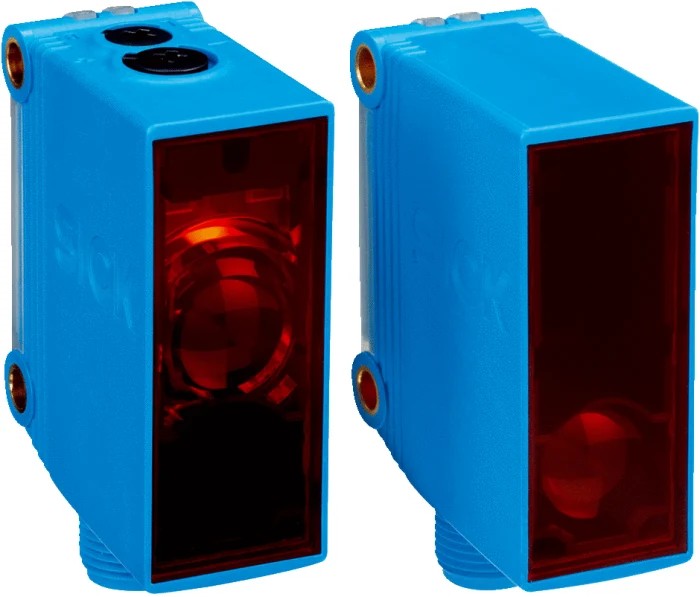

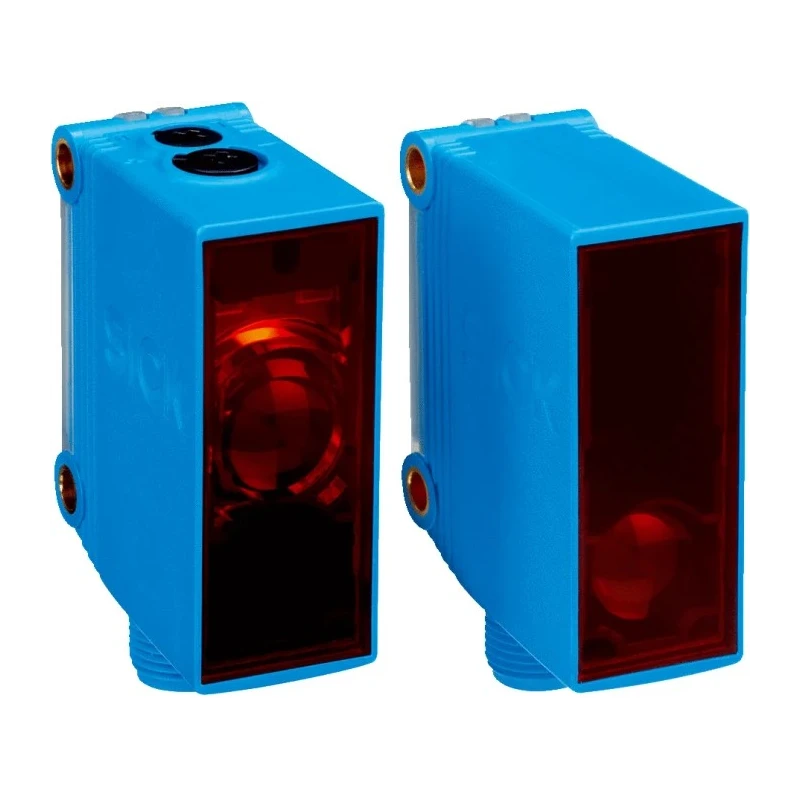

SICK Through Beam Photoelectric Sensor Block, 0 → 40 m Detection Range, PNP Output, IP67, Plastic Housing GSE10-P4221
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | Infrared |
| Detection range | 0 → 40 m |
| Model | GSE10-P4221 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Housing Material | Plastic |
| Output type | PNP |
| Series | G10 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -30°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | 4-Pin Connector |
| Interface Type | M12 Connector, 4-Pin |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | UL325, EN 60947-5-2 |
| Sensor Style | Block |
| Efficient installation | The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors |
| Wide range of accessories simplifies sensor integration | aids for assembly, connecting cables, and reflectors |
| Logistics | Storage & Conveyor, especially pallet detection |
| Loop control | loop measurement |
Key Features
- The sensor operates with a 4-pin M12 connector interface providing easy installation.
- Infrared light source offers reliable detection in various conditions.
- Robust plastic housing ensures durability and resistance to mechanical loads.
- Wide operating temperature range from -30°C to 60°C suits industrial environments.
- High response speed of 500 microseconds enables precise sensing.
- Supports voltage supply from 10 to 30 V DC with a maximum current of 100 mA.
- IP67 rated for dust-tight and water-resistant operation.
- Approved to standards UL325 and EN 60947-5-2 for industrial safety.
Product Description
SICK GSE10-P4221 Through Beam Photoelectric Sensor Block type offers precise detection up to 40 meters. It is equipped with a PNP output and housed in a durable plastic casing designed for panel mounting.
This sensor features an infrared light source and a rugged plastic housing reinforced with metal assembly holes for increased mechanical robustness. It supports a power supply from 10 to 30 V DC with a maximum current of 100 mA, and a fast response time of 500 microseconds ensures high accuracy in sensing operations.
The device is rated IP67 for dust and water resistance, enabling reliable operation in harsh industrial conditions, with operating temperature ranging from -30°C to 60°C. The G10 series sensors include the patented Q-Lock assembly system that drastically reduces installation and alignment time with an assembly rod, making it highly efficient for large-scale automated setups.
This sensor is commonly used in logistics for storage and conveyor pallet detection, machine building industries such as packaging and handling, automotive, automated car park systems, and monitoring access barriers including doors and gates. Its wide operating voltage range and high durability make it suitable for diverse industrial, commercial, and manufacturing environments.
Accessories like connecting cables and reflectors simplify integration, while compliance with UL325 and EN 60947-5-2 standards ensures safety and reliability in automation and control gear systems.
The sensor operates with a 4-pin connector and M12 interface for easy integration. Infrared light source ensures high detection precision. Robust plastic housing with metal-reinforced mounting points. Wide operating temperature ranging from -30°C to 60°C for versatile use.
Fast 500μs response time for efficient sensing and control. IP67 protection rating provides excellent dust and water resistance. Supports universal DC or AC/DC power supply with PNP outputs. Q-Lock assembly system reduces installation times significantly.
Ideal for logistics, automotive, packaging, and access control applications. Explore comprehensive sensor solutions and accessories within the electronics and electricals category at EnvMart for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GSE10-P4221 sensor has a detection range of 0 to 40 meters.
It features a PNP output type.
The response time of this sensor is 500 microseconds.
This model is rated IP67, indicating it is dust-tight and water-resistant.
The operating temperature range is from -30°C to 60°C.
It uses a 4-pin M12 connector interface for easy installation.
The housing is made of plastic, designed to withstand mechanical loads.
It is approved to UL325 and EN 60947-5-2 standards for industrial safety.
The sensor supports a maximum DC voltage of 30V and a maximum current of 100mA.
It is commonly used in logistics for storage and conveyor pallet detection, machine building, automotive, and access control applications.
The Q-Lock assembly system significantly reduces installation and alignment time, making it efficient for setting up multiple sensors.
Available accessories include connecting cables and reflectors, which aid in sensor integration.
