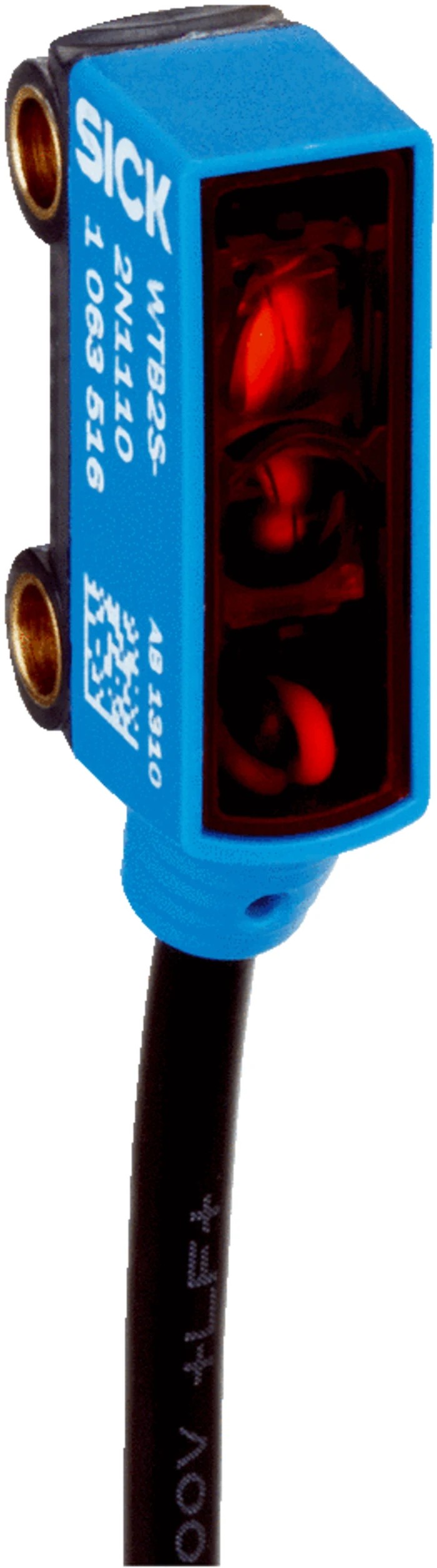

SICK Background Suppression Photoelectric Sensor Block Sensor 1 mm to 36 mm PNP IP67 WTB2S-2P3230
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 400μs |
| Light Source | Red Light |
| Detection range | 1 mm → 36 mm |
| Model | WTB2S-2P3230 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Plastic |
| Output type | PNP |
| Series | W2S-2 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| Terminal type | 4-Pin Connector |
| Interface Type | M8 |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | CE Certified, UL Certified |
| Sensor Style | Block |
| Machine design flexibility | the ultra-compact sensors offer above-average sensing distances and provide space-saving installation |
| Remote setup | sensors installed in confined spaces can be set and monitored remotely via IO-Link |
| High operational reliability | ultrablack objects are detected with a degree of reflection of 1% |
| Quick and easy commissioning | the photoelectric retro-reflective sensor with autocollimation provides a clearly visible light spot for high process reliability |
| Universal application options | wide range of models enclosed in a rugged housing |
Key Features
- Detects objects with background suppression precision from 1 mm to 36 mm distance.
- Equipped with PNP output type and 4-pin connector terminal for reliable signal transmission.
- Constructed with robust plastic housing and screw mount type for secure installation.
- Operates within a wide temperature range of -25°C to 50°C suitable for industrial environments.
- Features red light source with response time of 400µs for fast object detection.
- Designed for high operational reliability detecting objects with 1% reflectivity including ultrablack materials.
- IP67 rated for protection against dust and water ingress, allowing installation in harsh environments.
- Supports remote setup and monitoring via IO-Link for easy configuration in confined spaces.
Product Description
SICK WTB2S-2P3230 Background Suppression Photoelectric Sensor is a compact block sensor designed for precise object detection in demanding industrial environments. It operates within detection distances of 1 mm to 36 mm and offers a PNP output type with a 4-pin connector terminal. The sensor's rugged plastic housing with screw mounting ensures durability and easy installation.
This sensor features a red light source and a fast response time of 400 microseconds, allowing rapid and reliable sensing performance. It operates effectively across a temperature range from -25°C to 50°C and carries the IP67 rating, making it resistant to dust and water, suitable for harsh industrial settings.
The WTB2S-2P3230 model supports background suppression technology capable of detecting ultrablack objects with a reflectivity as low as 1%. Remote setup and monitoring via IO-Link enhance operation flexibility, particularly in confined installations.
Trusted certifications including CE and UL ensure compliance with industry standards while its ultra-compact design allows space-saving machine integration. This sensor is particularly useful in applications such as pharmaceutical industry ampule detection, solar cell inspection, smartphone module verification, and detection of small mechanical parts like pins and screws.
Detects objects with background suppression precision from 1 mm to 36 mm distance. Equipped with PNP output type and 4-pin connector terminal for reliable signal transmission. Constructed with robust plastic housing and screw mount type for secure installation.
Operates within a wide temperature range of -25°C to 50°C suitable for industrial environments. Features red light source with response time of 400µs for fast object detection. Designed for high operational reliability detecting objects with 1% reflectivity including ultrablack materials.
IP67 rated for protection against dust and water ingress, allowing installation in harsh environments. Supports remote setup and monitoring via IO-Link for easy configuration in confined spaces. CE and UL certified ensuring compliance with safety and quality standards.
Compact design facilitates space-saving machine integration and industrial automation applications.
These sensors enable advanced machine design flexibility and are ideal for various industrial sectors including manufacturing, logistics, pharmaceutical, and electronic assembly operations. Browse more industry-leading Photoelectric Sensors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a detection range of 1 mm to 36 mm, allowing for precise object detection in various applications.
The sensor features a PNP output type, which is suitable for various industrial signaling applications.
It has a response time of 400 microseconds, enabling fast and reliable object detection.
The WTB2S-2P3230 is rated IP67, which means it is protected against dust and water ingress, suitable for harsh environments.
It operates within a temperature range of -25°C to 50°C, making it suitable for various industrial applications.
The housing of this sensor is made from robust plastic, ensuring durability in industrial settings.
It uses a screw mount type for secure installation, ensuring stability during operation.
This model is equipped with a 4-pin connector terminal for reliable signal transmission.
Yes, it is designed to detect objects with a reflectivity as low as 1%, including ultrablack materials.
Yes, it supports remote setup and monitoring via IO-Link, which allows for easy configuration in confined spaces.
This sensor is CE and UL certified, ensuring compliance with safety and quality standards.
It is particularly useful in applications such as pharmaceutical industry ampule detection, solar cell inspection, and smartphone module verification.
