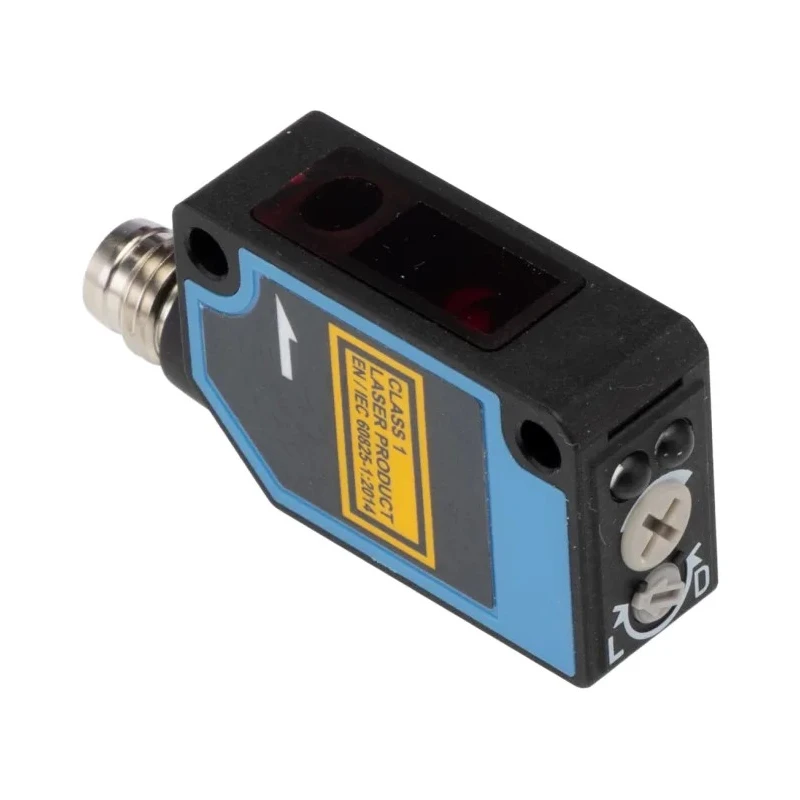

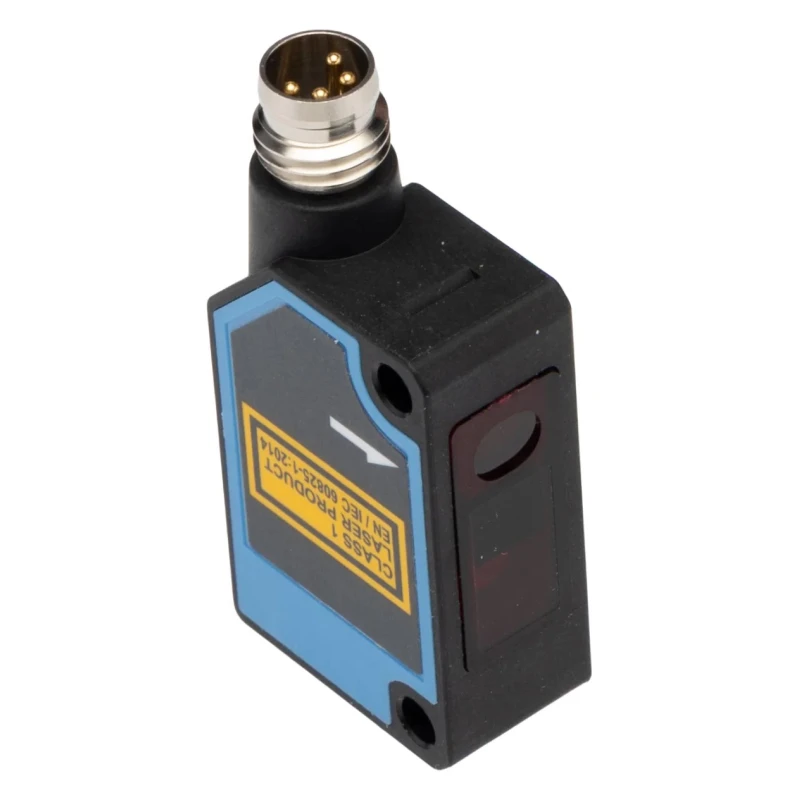

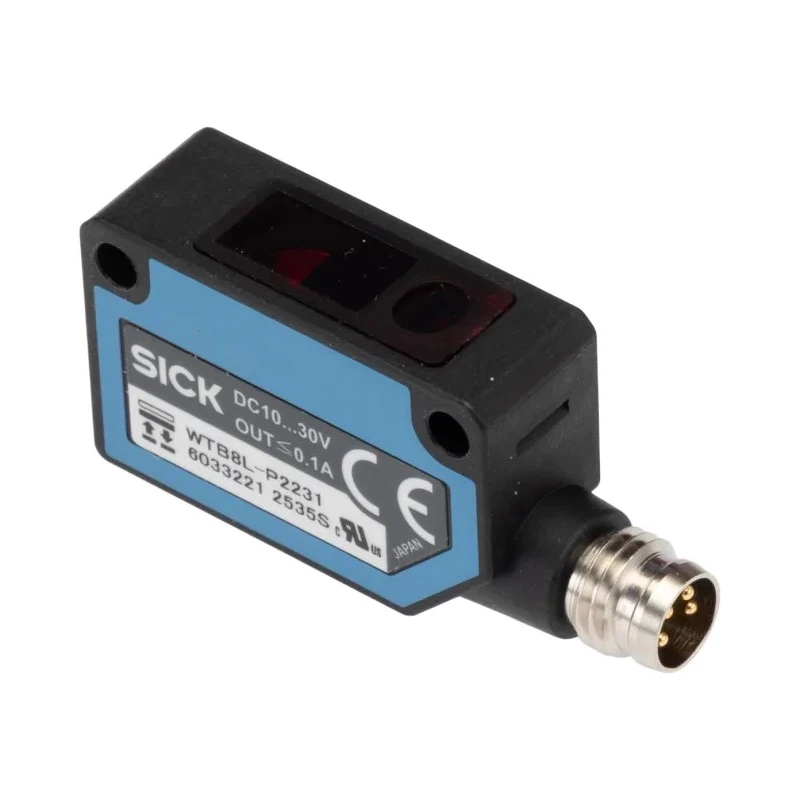

SICK Background Suppression Photoelectric Sensor Block Style 30 mm to 300 mm Detection Range PNP Output IP67 WTB8L-P2231
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SICK |
| Response time | 250μs |
| Light Source | Red Light |
| Detection range | 30 mm → 300 mm |
| Model | WTB8L-P2231 |
| IP Rating | IP67 |
| Mount Type | Bracket |
| Housing Material | Plastic |
| Output type | PNP |
| Series | W8 Laser |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 100mA |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M8 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, UL Certified |
| Materials Detected | Object Moving At High Speeds, Small Object |
| Sensor Style | Block |
| It has two LEDs | one for output switching activity and one green indicator for stability monitoring |
Key Features
- Compact block style sensor with plastic housing suitable for machine mounts.
- Utilizes visible red laser light for accurate background suppression detection.
- PNP switching output enables direct interfacing with common PLC inputs.
- Rated for 10V to 30V DC voltage operation ensuring flexible power arrangements.
- IP67 enclosure provides protection in washdown or dusty industrial environments.
- Fast response time of 250 microseconds supports detection of high-speed objects.
- Equipped with two LEDs for output switching activity and stability indication.
- Adjustment potentiometer allows precise tuning of sensing distance.
Product Description
SICK WTB8L-P2231 Background Suppression Photoelectric Sensor is a block style sensor designed for industrial automation requiring precise object detection. It features a robust plastic housing suitable for machine mount environments and operates on a DC voltage supply of 10 to 30 V. The sensor uses visible red laser light technology and supports a detection range spanning from 30 mm to 300 mm, making it ideal for various short-range sensing applications.
This sensor features a PNP output type allowing seamless integration with PLC control systems. The IP67-rated enclosure protects it against dust and water ingress, suitable for use in harsh or washdown industrial conditions. Its fast response time of 250 microseconds ensures reliable detection of high-speed moving objects or small components on conveyor belts.
An adjustable potentiometer facilitates precise setting of the sensing distance, accommodating different surface reflectivities. The device also includes two LED indicators, one for output switching activity and another green LED for stability monitoring, providing clear visual feedback during operation.
The sensor is rated for an operating temperature range from -10°C to +50°C, supporting stable performance across typical industrial environments. Installation is simplified by a bracket mount design, enhancing flexibility for integration into automated systems.
Compact block sensor with plastic housing suitable for machine mounts. Red laser light source ensures accurate background suppression detection. PNP output compatible with standard PLC inputs. Operating voltage range 10 - 30 V DC for power flexibility.
IP67 rated for protection against dust and water ingress. Fast 250µs response time supports high-speed object detection. Two LED indicators for output and stability status. Adjustment potentiometer for fine distance tuning.
Operating temperature from -10°C to +50°C for versatile use. Bracket mounting for easy installation.
This sensor is commonly used in industrial automation for counting small parts on fast conveyors, presence detection in packaging machines, and short-range object detection in assembly and pick-and-place systems. Its compact design and robust features support reliable performance in manufacturing, material handling, and quality control applications.
Explore the spectrum of Photoelectric Sensors available in the Electronics & Electricals category at EnvMart for solutions tailored to your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor spans from 30 mm to 300 mm, making it suitable for various short-range sensing applications.
It features a PNP output type, allowing for direct interfacing with common PLC inputs.
This sensor has a fast response time of 250 microseconds, which supports the detection of high-speed objects.
The sensor operates within a voltage range of 10 to 30 V DC, providing flexibility for various power arrangements.
It has an IP67 rating, ensuring protection against dust and water ingress, suitable for harsh industrial environments.
The sensor is capable of detecting small objects and objects moving at high speeds, making it ideal for fast-paced applications.
The maximum operating temperature is 50°C, allowing it to function effectively in typical industrial environments.
It features a bracket mount design, which simplifies installation and enhances flexibility for integration into automated systems.
It utilizes a visible red laser light source for accurate background suppression detection.
Yes, it is equipped with two LEDs: one for output switching activity and another green LED for stability monitoring.
The sensor features a 4-pin connector terminal type, facilitating easy electrical connections.
This model is CE Certified and UL Certified, ensuring compliance with relevant safety and performance standards.
