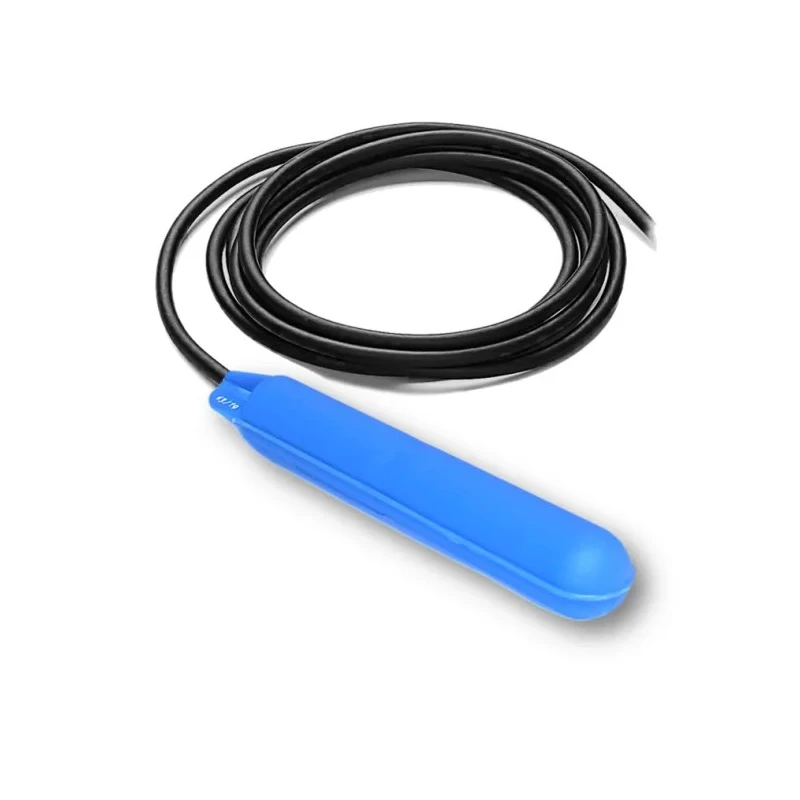

ATMI Cable Float Switch, 10 m Cable Length, SPDT Output, 250 V AC Max, 125 V DC Max TUBA1NE10M

ATMI TUBA1NE10M Cable Float Switch is a highly reliable sensor designed for precise liquid level measurement in industrial tanks and cisterns. The tubular float with a diameter of 1 inch enables it to be used in applications with restricted access points, allowing it to pass easily through narrow sidewall openings.

The device features a 10-meter cable length, which supports vertical suspension installations with external ballasts, fixed mounting on a cane, or horizontal mounting on tank sides with a gland, giving installation flexibility tailored to various industrial setups.

This float switch incorporates a mechanical SPDT switch that actuates as the float tilts with the changing liquid level, ensuring accurate and responsive signals with its ±20° switching angle. It is suitable for operation at maximum voltages of 250 V AC and 125 V DC, making it compatible with different electrical systems.

The float housing is constructed from copolymer polypropylene, offering chemical resistance and durability. Operational temperature ranges from -40°C up to 85°C with a maximum operating pressure of 5.5 bar, allowing use in diverse industrial fluid environments.

The product comes with an IP68 protection rating, ensuring water resistance even under continuous immersion conditions. Furthermore, the TUBA1NE10M is ATEX certified, making it compliant and safe for use in hazardous environments such as chemical processing or explosive atmospheres.

This Float Switch is ideal for industrial applications including water treatment facilities, HVAC systems, manufacturing plants, and agricultural liquid level detection. Its robust design and certifications ensure reliable long-term operation in demanding conditions.

The switch is designed with a small 1-inch diameter float suitable for restricted tank access. Cable length is 10 meters, allowing flexible installation configurations. Operates with a maximum AC voltage of 250 V and DC voltage of 125 V for versatile power environments.

Housing is made from durable copolymer polypropylene offering robust protection. Supports a maximum operating pressure of 5.5 bar and temperature range from -40°C to 85°C. Provides mechanical switch operation via a tilting float with a precise ±20° switching angle.

Installation options include fixed cane, vertically suspended cable with ballasts, or horizontal tank mounting. Protection rating is IP68, suitable for submersion and harsh environments. Certified for use in hazardous areas with ATEX certification.
