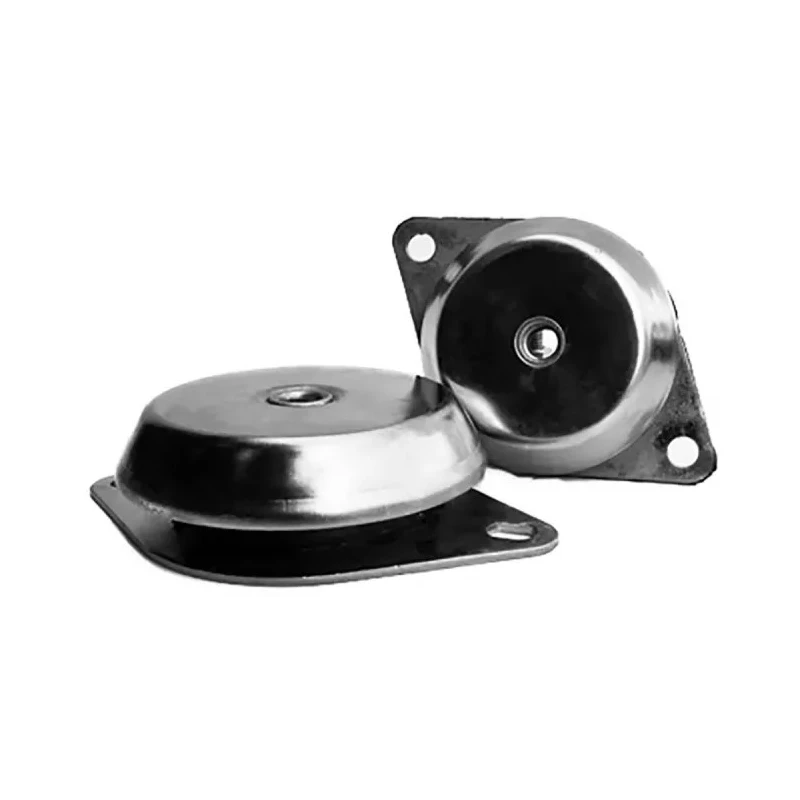

RS PRO M10 Anti-Vibration Mount Male Buffer Foot Flange Mount Rubber 45 Shore A 92 mm OD 45 mm H 189-3303

RS PRO 189-3303 Anti-Vibration Mount Male Buffer Foot is a high-performance industrial vibration isolator designed to reduce equipment vibration and noise in mechanical applications. This flange-mounted mount has dimensions of 92 mm outside diameter and 45 mm overall height, constructed with durable rubber featuring 45 Shore A hardness.

The M10 thread size provides a secure fitting to various machine parts. The mount supports a static load capacity of up to 5000 kg, making it suitable for heavy-duty industrial equipment. Its rubber element is engineered to absorb vertical loads effectively in both shear and compression, offering improved vibration isolation and equipment longevity.

Its compression deflection rating of 4 mm allows for optimal shock absorption, while the dome-shaped metal cap protects the elastomer from contaminants such as oil and fuel. The flange base enhances mounting stability and overall strength.

This mount is commonly applied in static and mobile generators, pumps, compressors, centrifugal fans, blowers, railway equipment compartments, marine engines (excluding thrust), gearboxes, and electronic control panels. Compared to spring mountings, it effectively reduces airborne noise due to its compression design and metal cap.

The RS PRO 189-3303 Anti-Vibration Mount is compliant with RoHS regulations, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007, guaranteeing environmentally friendly and electrostatic discharge safe performance.

This mount features a thread size of M10 for secure fitting. The overall height is 45 mm with a 92 mm outside diameter for compactness. It supports static loads up to 5000 kg, suitable for heavy equipment. Rubber hardness is 45 Shore A, offering good vibration damping.

Compression deflection is rated at 4 mm, enabling effective shock absorption. The flanged mount design ensures stability and ease of installation. Its dome-shaped metal cap protects the rubber element from oil and fuel contamination.

Designed to reduce airborne noise compared to traditional spring mounts. Ideal for use with generators, pumps, compressors, blowers, and marine engines. The product complies with RoHS standards and ANSI/ESD S20.20 and BS EN 61340-5-1 certifications.

This product is an essential component in industrial machine mounting applications, helping to enhance equipment durability and operational comfort. Browse more in the Anti Vibration Mount category to find compatible products and accessories.
