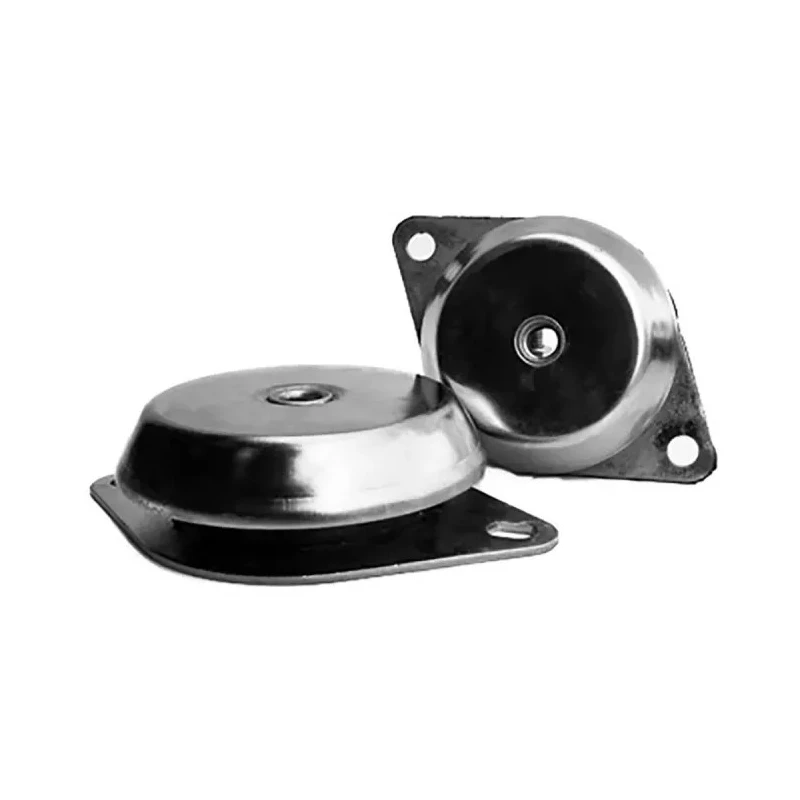

RS PRO Circular M10 Anti-Vibration Mount Male Buffer Foot 65 mm OD 35 mm H 189-3265
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Material | Rubber |
| Model | 189-3265 |
| Mount Type | Screw |
| Series | RS PRO |
| Outside diameter | 65mm |
| Thread Size | M10 |
| Overall height | 35mm |
| Static Load Rating | 5000kg |
| Anti Vibration Mount Type | Male Buffer Foot |
| Shore Hardness | 60 Shore A |
| Compression Deflection | 3.5mm |
| Foot Colour | Black |
| Foot Shape | Circular |
Key Features
- Constructed with durable rubber material for effective vibration dampening.
- Designed with a compression deflection of 3.5 mm to absorb shocks efficiently.
- Suitable for loads up to 5000 kg static load rating.
- Features 60 Shore A hardness ensuring optimum elasticity and resilience.
- Circular black foot shape providing stable mounting for various equipment.
- Includes a dome-shaped metal cap protecting the elastomer from oil and fuel splashes.
- Compact design includes inbuilt bump and rebound control to prevent equipment movement in transit.
- Mount type is screw with a standard M10 thread size for secure installation.
Product Description
RS PRO 189-3265 Circular M10 Anti-Vibration Mount is a male buffer foot type mount designed to provide superior vibration isolation in industrial, mechanical, and fluid power applications. Measuring 65 mm in outside diameter and 35 mm in total height, this mount is specifically engineered to support static loads up to 5000 kg, making it robust for heavy-duty equipment.
The main body is constructed from high-quality rubber with a Shore Hardness rating of 60 Shore A, which allows effective absorption of vibrations and shocks without compromising structural integrity. The mount features a compression deflection of 3.5 mm to allow vertical load isolation both in shear and compression modes.
The anti-vibration mount’s screw type is equipped with an M10 thread for straightforward and secure attachment in various industrial machinery and equipment. A dome-shaped metal cap covers the rubber element, safeguarding it from potential oil and fuel contamination and adding to the durability in harsh environments.
Additional built-in bump and rebound control features manage movement during transport, preventing damage to sensitive components. This mount is circular and furnished in black foot colour, ensuring compatibility with standard mounting configurations.
Common applications include use with static and mobile generators, pumps, compressors, centrifugal fans, blowers, marine engines (excluding thrust loads), and railway equipment compartments. It is also suitable for electronic control panel mounting in HVAC, manufacturing, and transportation industries.
Constructed with durable rubber material for effective vibration dampening. Compression deflection of 3.5 mm absorbs shocks efficiently. Static load rating up to 5000 kg for heavy-duty equipment. 60 Shore A hardness for elasticity and resilience.
Circular black foot shape for stable mounting. Dome-shaped metal cap protects against oil and fuel splashes. Compact design with bump and rebound control features. Screw mount with M10 thread for secure installation. Ideal for generators, pumps, compressors, and marine gearboxes.
Explore more in the Anti Vibration Mount category at EnvMart for comprehensive industrial vibration isolation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a static load rating of up to 5000 kg, making it suitable for heavy-duty applications.
The compression deflection of this mount is 3.5 mm, allowing it to absorb shocks effectively.
It is constructed from durable rubber, which provides effective vibration dampening.
The mount has a Shore hardness rating of 60 Shore A, ensuring good elasticity and resilience.
The outside diameter is 65 mm and the overall height is 35 mm.
This anti-vibration mount utilizes a screw type with a standard M10 thread for secure installation.
It is commonly used with static and mobile generators, pumps, compressors, and marine engines, among other equipment.
Yes, it includes a dome-shaped metal cap that protects the elastomer from oil and fuel splashes.
The foot shape is circular and it is finished in black color.
It features built-in bump and rebound control to prevent movement during transport, safeguarding sensitive components.
This model is part of the RS PRO series of anti-vibration mounts.
The country of origin for this anti-vibration mount is India.
