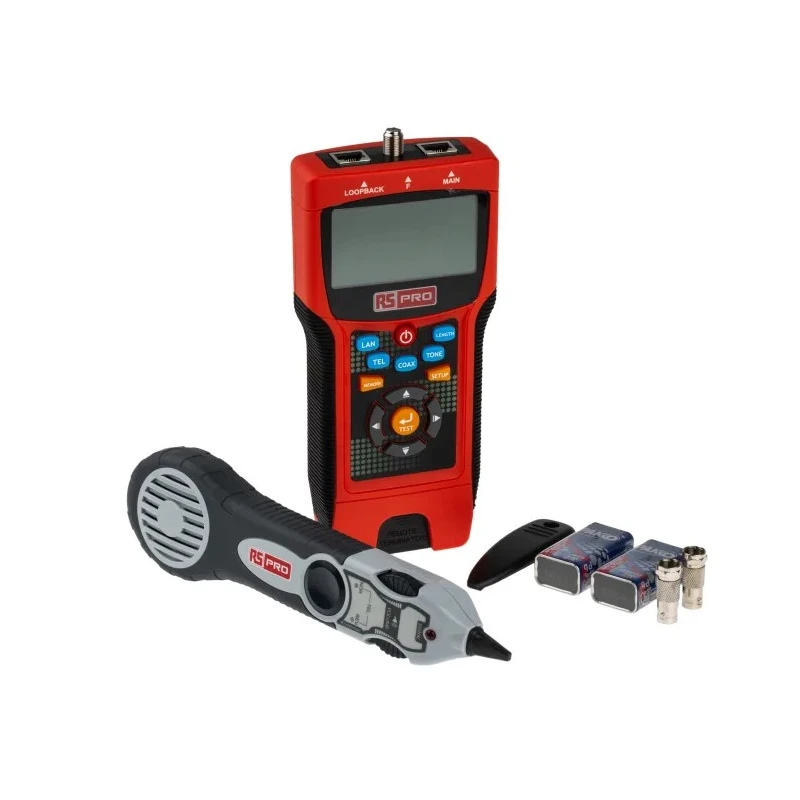

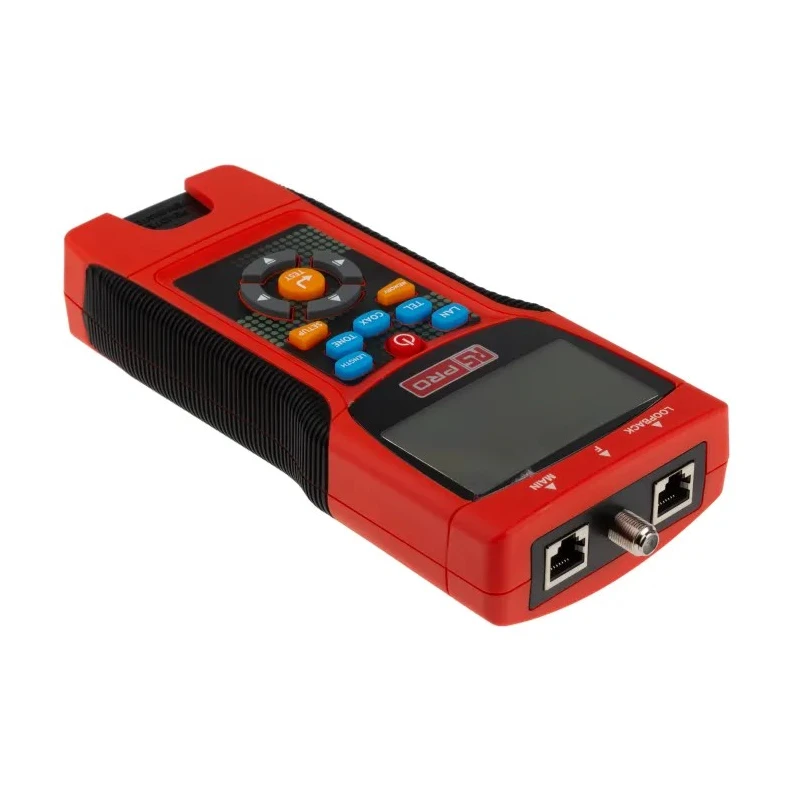

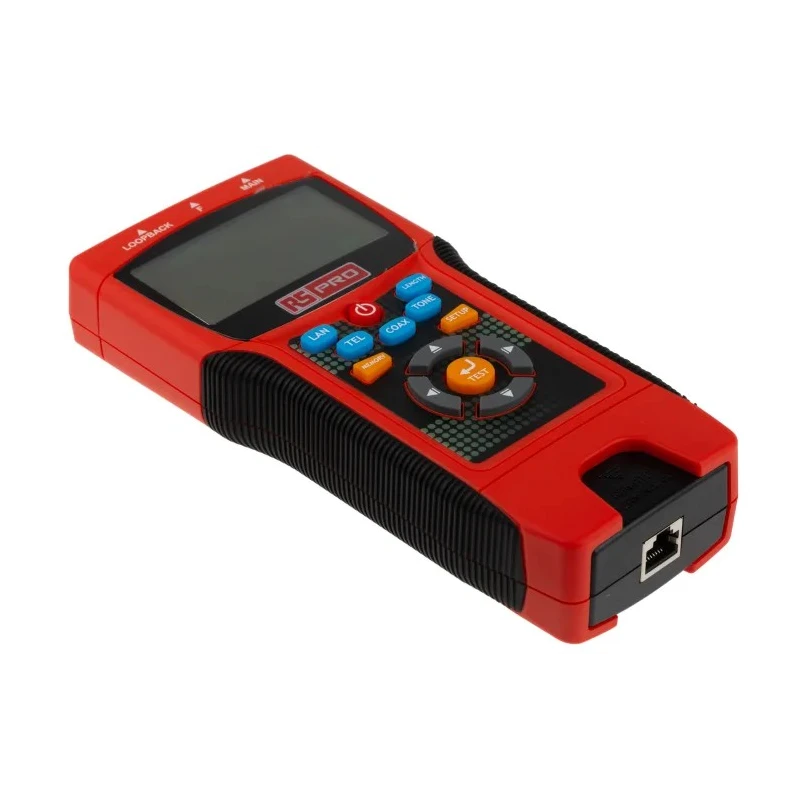

RS PRO Network Cable Tester with F Type, RJ45, RJ12 Connectors 0-50°C Operating Temperature Model 2670 146-6833
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Height | 40mm |
| Length | 230mm |
| Model | 146-6833 |
| Connector Type | F Type, RJ45, RJ12 |
| Width | 90mm |
| Maximum Operating Temperature | 50°C |
| Equipment Type | Network Tester |
| Minimum Operating Temperature | 0°C |
| Interfaces | LAN cable tester probe features adjustable volume giving you complete control, furthermore the addition of headphones is also possible via the headphone jack which is ideal for noisy |
| Standards/Approvals | CE, RoHS |
| LAN Category | Cat5, Cat6, Cat7 |
| Can test multiple cables such as | UTP, STP, Cat5E, Cat6, Cat6A and Coaxial cables |
| Crimping tool | 829-6527 |
| RJ45 Connectors | 331-6386 |
| RJ11 Connectors | 331-6342 |
| Cinch Cable Tester BNC, RJ45, RJ11Brand | Cinch |
Key Features
- Can test multiple cable types including UTP, STP, Cat5E, Cat6, Cat6A and Coaxial cables.
- Includes a toner probe for efficient cable testing and tracing.
- Identifies open, short, cross, and split wiring faults with high accuracy.
- Features an easy-to-read LCD backlit display for clear results.
- Memory mode stores up to 8 test results.
- Measures cable length with Time Domain Reflectometry.
- Powered by a 9V battery and includes low battery indicator.
- Adjustable volume with headphone jack for noisy environments.
Product Description
RS PRO 2670 Network Cable Tester is a professional-grade network testing tool designed for comprehensive diagnostics of LAN cables including F Type, RJ45, and RJ12 connectors. It supports a wide range of cables such as UTP, STP, Cat5E, Cat6, Cat6A, and Coaxial, making it suitable for diverse network environments.

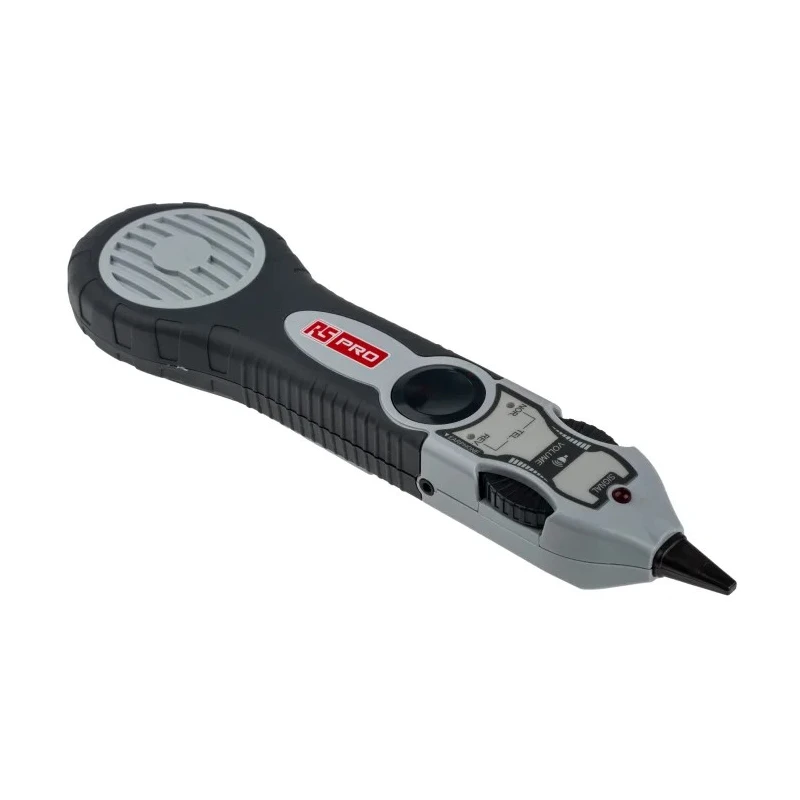

This network tester features an intuitive LCD backlit display, providing clear and immediate feedback on cable integrity, wiring faults including open, short, cross, and split wires. The included LAN cable tracer probe allows non-destructive cable identification and tracing within cable groups, facilitating efficient troubleshooting.
The device measures cable length using advanced Time Domain Reflectometry (TDR), enabling precise location of cable faults. Memory mode stores up to 8 test results, allowing users to manage multiple cable tests effectively. It is powered by a single 9V battery and includes a low battery indicator for timely replacement.
Additional user-friendly features include adjustable volume controls and a headphone jack, which is especially useful in noisy industrial or construction site environments. Its compact dimensions of 230mm length, 90mm width, and 40mm height make it portable and easy to handle.
Can test multiple cable types including UTP, STP, Cat5E, Cat6, Cat6A and Coaxial cables. Includes a toner probe for efficient cable testing and tracing. Identifies open, short, cross, and split wiring faults with high accuracy.
Features an easy-to-read LCD backlit display for clear results. Memory mode stores up to 8 test results. Measures cable length with Time Domain Reflectometry. Powered by a 9V battery and includes low battery indicator. Adjustable volume with headphone jack for noisy environments.
Compact and portable dimensions.
This tester is ideal for industrial, commercial, and residential network installations, maintenance, and troubleshooting. It supports standards CE and RoHS compliance and is made in Taiwan, Province Of China.
Explore more advanced Network Cable Testers and measurement instruments in EnvMart's comprehensive catalog to suit all professional requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can test multiple cable types including UTP, STP, Cat5E, Cat6, Cat6A, and Coaxial cables.
It is compatible with F Type, RJ45, and RJ12 connectors.
The operating temperature range is from 0°C to 50°C.
It measures cable length using Time Domain Reflectometry (TDR), allowing for precise location of cable faults.
The tester features an easy-to-read LCD backlit display for clear results.
The memory mode can store up to 8 test results, allowing for effective management of multiple tests.
It includes a toner probe for efficient cable testing and tracing.
It is powered by a single 9V battery and includes a low battery indicator.
The dimensions are 230mm in length, 90mm in width, and 40mm in height.
This tester complies with CE and RoHS standards.
Yes, it features adjustable volume controls and a headphone jack for use in noisy environments.
It is manufactured in Taiwan, Province Of China.
