MikroElektronika Rotary O Control Knob MikroBus Click Board MIKROE-2380

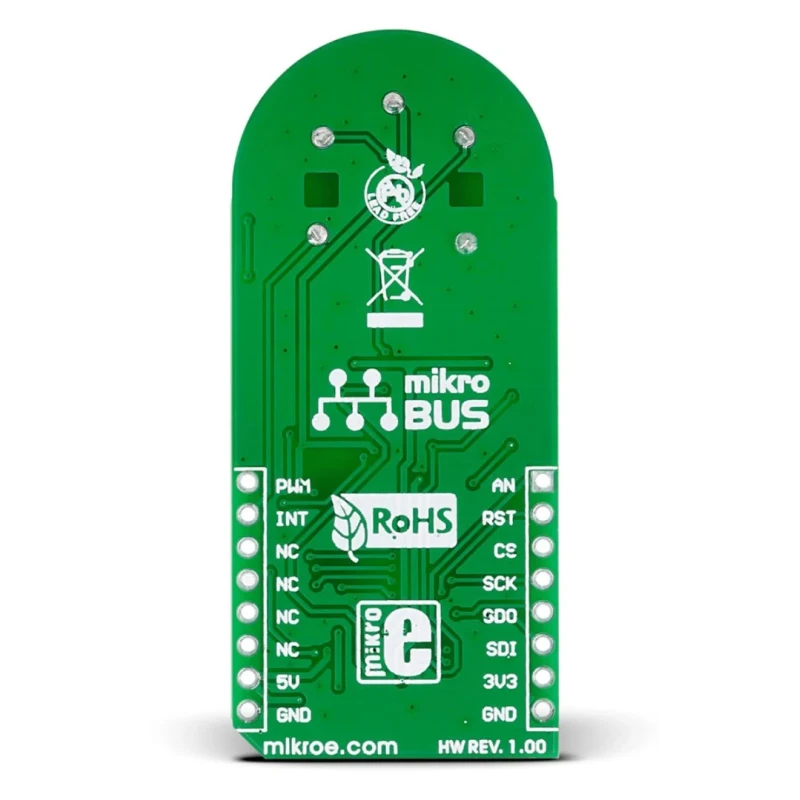

MikroElektronika MIKROE-2380 Rotary O Control Knob MikroBus Click Board is a specialized development kit designed for microcontroller applications requiring precise user input via a rotary encoder and LED indicators. Powered by 3.3V or 5V, it seamlessly interfaces through the mikroBUS SPI standard, allowing integration with a wide range of development boards.

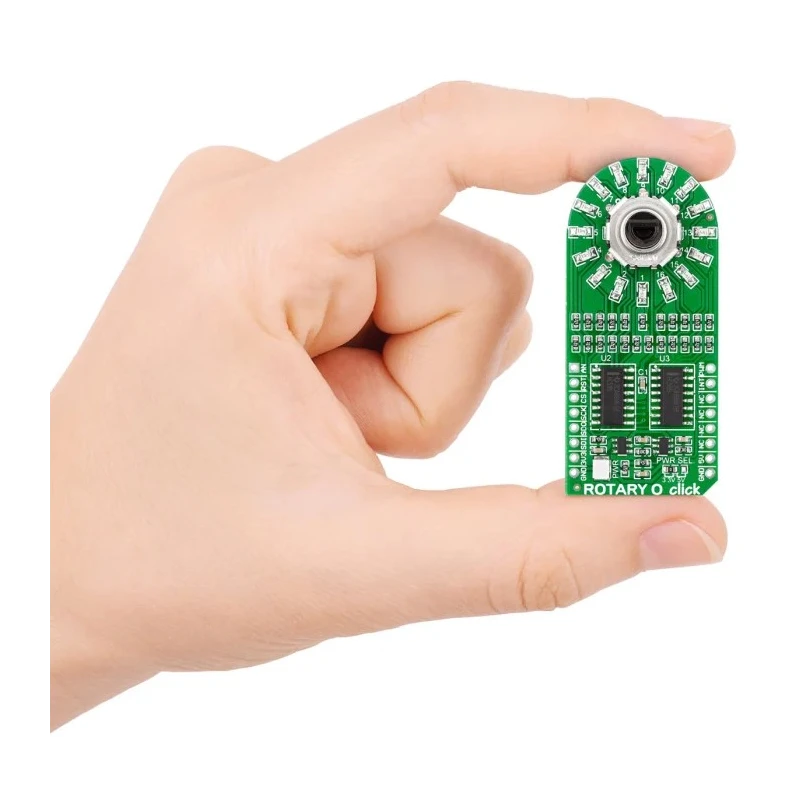

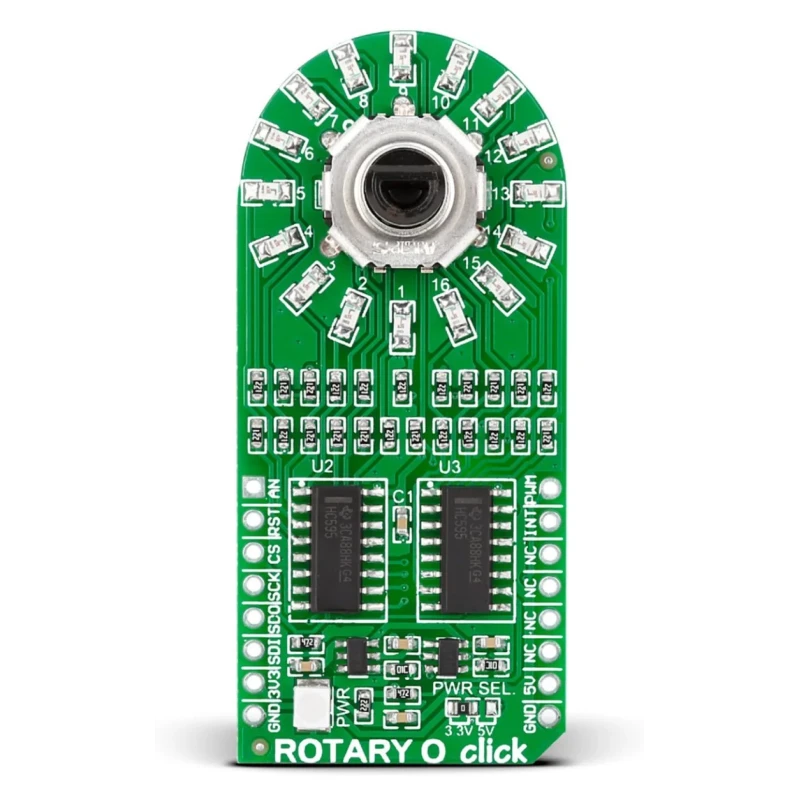

At the core of this click board lies the Alps EC12D 15-pulse incremental rotary encoder, which provides smooth and precise rotary input with a positive detent action, ensuring reliable tactile feedback. Surrounding the encoder is a ring of 16 vibrant coloured LEDs that enhance user interface visibility and feedback, especially useful in audio-video control scenarios. Additionally, the encoder incorporates a push switch that is easily read via an interrupt line, enabling multifunctional input options.

This click board is compliant with RoHS standards, reflecting its adherence to environmental and safety regulations. It ships with header strips pre-soldered, facilitating quick deployment with mikroBUS-enabled microcontroller boards.

Applications for the MikroElektronika Rotary O Control Knob MikroBus Click Board extend across various industrial and educational domains, including embedded system development, HMI (Human-Machine Interface) prototyping, audio-video equipment controls, and STEM education projects.

The modular and standard-compliant design of this click board ensures developers can accelerate prototyping of control knob inputs while maintaining high reliability and performance.

The board utilizes an Alps EC12D incremental rotary encoder for precise control input. It includes 16 coloured LEDs arranged in a ring around the rotary encoder. The encoder switch comprises a push switch with positive detent rotary action.

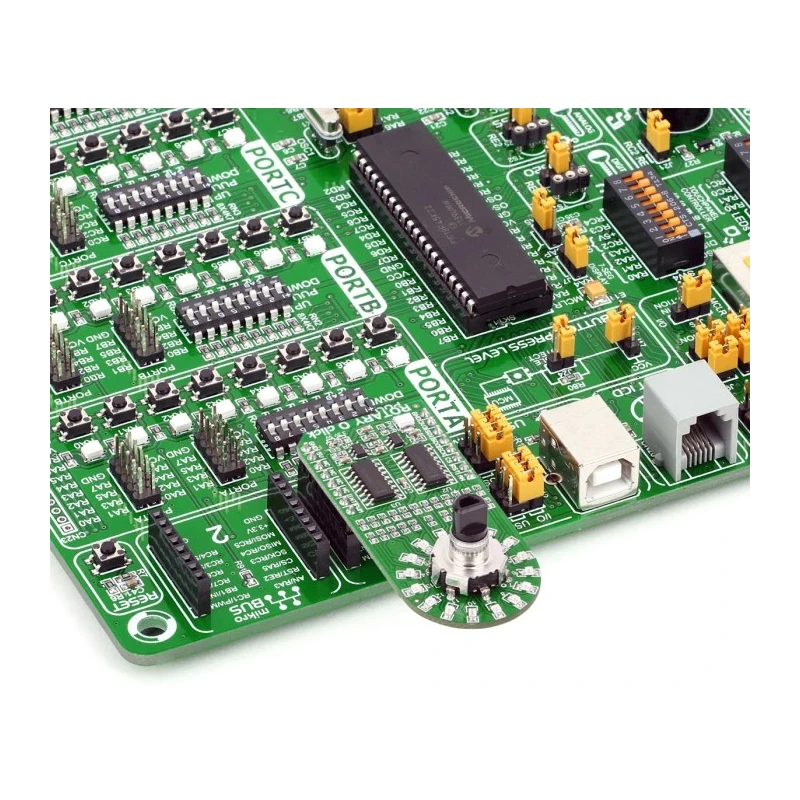

Communicates through the mikroBUS SPI interface with 3.3V or 5V power supply compatibility. Designed for easy integration with MikroElektronika mikroBUS microcontroller development boards. Ideal for adding control knobs to audio and video applications.

Compliant with RoHS standards ensuring environmental safety. Click board comes with header strips soldered for immediate use. Explore EnvMart's comprehensive collection of microcontroller Development Boards and accessories for efficient embedded system design and prototyping solutions.
