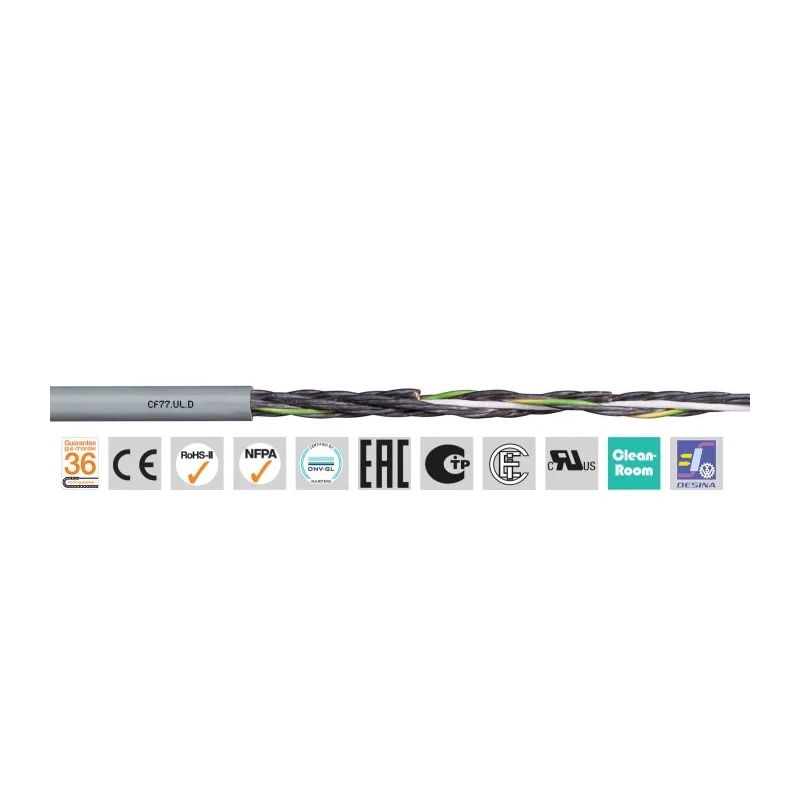

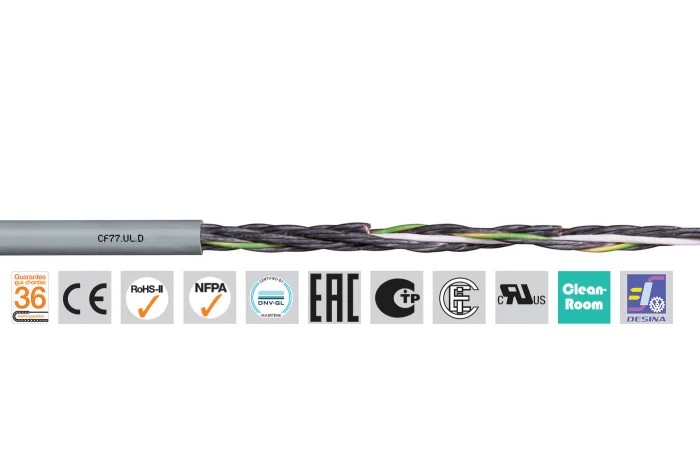

Igus chainflex CF77.UL.D Control Cable 7 Cores 1.5mm² 15 AWG Unscreened Grey Polyurethane Sheath 100m CF77.UL.15.07.D (100m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF77.UL.15.07.D (100m) |
| Cable Length | 100m |
| Series | chainflex CF77.UL.D |
| Outside diameter | 10.5mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 7 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Polyurethane |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free, Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- The cable has a robust grey polyurethane sheath providing high abrasion resistance.
- It supports a voltage rating of 500V suitable for control cable operations.
- Designed with stranded copper conductors for flexibility and conductivity.
- Operates reliably between temperatures of -50°C to 80°C for harsh environments.
- Its armoured design offers additional mechanical protection.
- Halogen-free and flame retardant properties ensure safety compliance.
- Ideal for use in echain cable carrier systems and demanding dynamic applications.
- Complies with CE and EN standards for industrial usage.
Product Description
Igus CF77.UL.15.07.D Control Cable is a high-quality industrial cable designed for control signal transmission with 7 cores each having 1.5 mm² cross-sectional area (15 AWG).
The cable has an unscreened configuration and a grey polyurethane jacket that provides excellent abrasion resistance and high oil resistance, making it suitable for both indoor and outdoor environments.
Rated for use at 500V, this armoured cable has stranded copper conductors enhancing its flexibility and conductivity for dynamic machine applications including machining units, storage and retrieval units, packaging industry machinery, and refrigeration sectors.
Its operational temperature range from -50°C to 80°C allows it to perform reliably in a wide variety of conditions. The cable is halogen-free and flame retardant according to international safety standards, ensuring reduced risk in fire-prone industrial settings.
This cable meets global norms including CE and EN certifications and is engineered with igus' patented core bundle design that guarantees a minimal bend radius and torsional resistance, ideal for use with echain® cable carriers and demanding dynamic torsion applications.
The polyurethane sheath is designed to withstand extreme mechanical and chemical challenges, including resistance to oil. Armoured construction enhances mechanical protection for industrial automation environments. The halogen-free and flame retardant design enhances safety in constrained industrial spaces.
Compliant with CE, EN, and other international standards, suitable for global applications. Tested extensively in laboratory environments to guarantee long service life in high-movement applications.
This cable is manufactured in Germany and is ideal for industrial, manufacturing, automation, and electrical control applications requiring robust, flexible, and durable cabling solutions.
Explore more in the Electronics & Electricals category for premium cables designed for performance and longevity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus CF77.UL.15.07.D Control Cable has a voltage rating of 500V, making it suitable for control cable operations.
This cable operates reliably between temperatures of -50°C and 80°C, allowing it to function in harsh environments.
The cable features 7 cores, each with a cross-sectional area of 1.5 mm² (15 AWG).
It is constructed with stranded copper conductors for flexibility and conductivity, and has a grey polyurethane sheath providing high abrasion and oil resistance.
Yes, it is designed for dynamic machine applications, including use with echain cable carrier systems and in environments requiring flexibility and durability.
The cable complies with CE and EN standards, ensuring it meets international safety and performance requirements.
The outside diameter of the Igus CF77.UL.15.07.D Control Cable is 10.5 mm.
This model is halogen-free and flame retardant, enhancing safety in industrial settings.
The cable is manufactured in Germany, ensuring adherence to high manufacturing standards.
The armoured design provides additional mechanical protection, making it suitable for industrial automation environments.
The cable uses stranded conductors, which enhance its flexibility and conductivity for various applications.
It is ideal for industrial, manufacturing, automation, and electrical control applications requiring robust and flexible cabling solutions.
