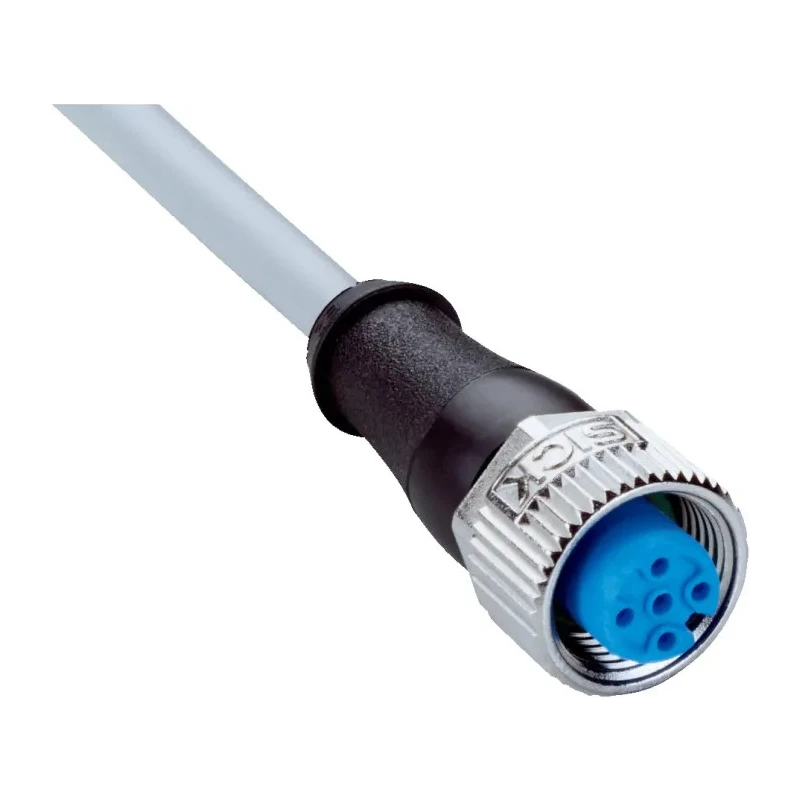

SICK Sensor Actuator Cable Female 4-Way M12 to Unterminated Grey PVC Jacket 15m YF2A14-150VB3XLEAX / 2096237

SICK YF2A14-150VB3XLEAX / 2096237 sensor actuator cable provides a reliable and durable connection solution for industrial automation systems. This 15-meter long cable features a straight female M12 connector with A-coding at one end and unterminated flying leads at the other, allowing easy field termination and installation.

The cable jacket made of grey polyvinyl chloride resists chemicals commonly found in industrial zones, enhancing robustness and longevity. It is rated up to 250V and supports currents up to 4A over its four conductors with a cross-sectional area of 0.34 mm².

This cable carries CE and UL approvals, ensuring compliance with international safety standards. Its IP67 rating provides excellent protection against dust and water ingress, suitable for washdown environments and harsh industrial conditions. The cable operates reliably in temperatures ranging from −5 °C to +80 °C and can be stored at temperatures down to −25 °C.

With an insulation resistance of 100 MΩ and a rated impulse voltage of 2.5 kV, it offers electrical safety and stable performance. The unshielded assembly is engineered to maintain performance under mechanical stress with bending radius guidelines for continuous and stationary use.

This sensor actuator cable is ideal for linking proximity sensors to programmable logic controllers (PLCs) over longer distances and facilitating actuator interface wiring with free-end termination. It is a suitable replacement or extension cable for existing M12 female to free-end sensor cabling applications.

The cable features a female 4-way M12 connector at one end and unterminated flying leads at the other end for flexible field wiring. Supports voltage up to 250V and current ratings of up to 4A for sensor and actuator signals.

Durable PVC grey jacket offers chemical resistance and protection from industrial contaminants. Rated IP67 for protection against dust, water, and washdown environments. Operates reliably between −5 °C and +80 °C with extended storage temperature range down to −25 °C.

Electrical insulation resistance is 100 MΩ with impulse voltage resistance at 2.5 kV. Unshielded construction with 0.34 mm² conductor cross-section for standard sensor wiring. Designed for industrial automation use with proximity sensors, PLC connections, and actuator wiring.
