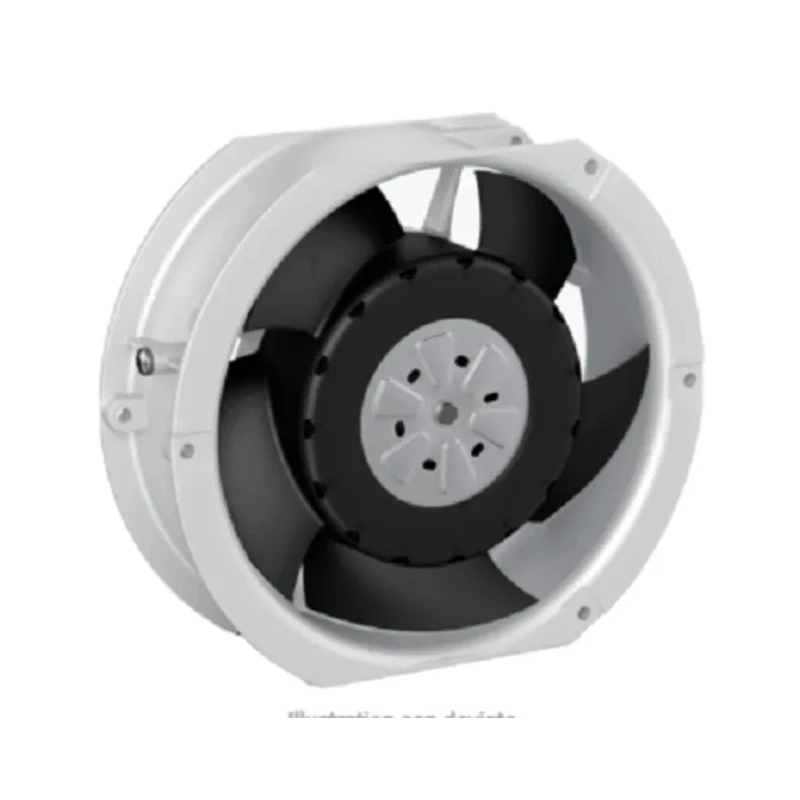

ebm-papst AxiForce 80 Series Axial Fan 48V DC 98W 650 m³/h Airflow AF172-000059 48V P/2 8.300

ebm-papst AF172-000059 48V P/2 8.300 Axial Fan is a high-performance 48V DC axial fan designed to deliver reliable and efficient air movement for industrial and HVAC applications. With a power rating of 98W and maximum current of 2.05A, this fan achieves an air flow of 650 cubic meters per hour while maintaining a low noise level of only 5 dB, making it ideal for environments where noise reduction is crucial.

The fan features a robust aluminium housing and a plastic (PA) impeller that ensures longevity and optimal airflow dynamics. Its ball bearing mechanism guarantees smooth rotation and extended operational life. The AxiForce 80 series frame has a circular design with dimensions of 172 mm height, 150 mm width, and 51 mm depth, facilitating easy integration into various industrial setups.

This axial fan employs a three-phase motor concept for smooth rotation, reducing extra heat generation in the rotor and stator. It supports PWM control input, enabling precise speed regulation tailored to application needs. The airflow direction is designed as exhaust over struts, with a counter clockwise rotational direction when observed facing the rotor.

Suitable for industrial, HVAC, manufacturing, and automation sectors, this axial fan offers dependable performance for cooling, ventilation, and air conditioning systems. It complies with standard industrial requirements though it carries no specific approvals or certifications.

Operates on 48V DC supply with power consumption of 98W. Maximum current of 2.05A ensures optimized electrical performance. Provides high air flow rated at 650 cubic meters per hour. Noise level is very low at 5 dB for quiet operation.

Compact dimensions: Height 172 mm, Width 150 mm, Depth 51 mm. Constructed with aluminium housing for durability and plastic (PA) impeller for efficient airflow. Features ball bearing type for smooth and long-lasting operation.

Fan frame is circular and designed in the AxiForce 80 series. Includes PWM control input for precise speed modulation. Airflow direction is exhaust over struts, rotating counter clockwise when viewed towards rotor. Discover a wide range of Axial Fans and other industrial cooling solutions at EnvMart for diverse technical and commercial applications.
