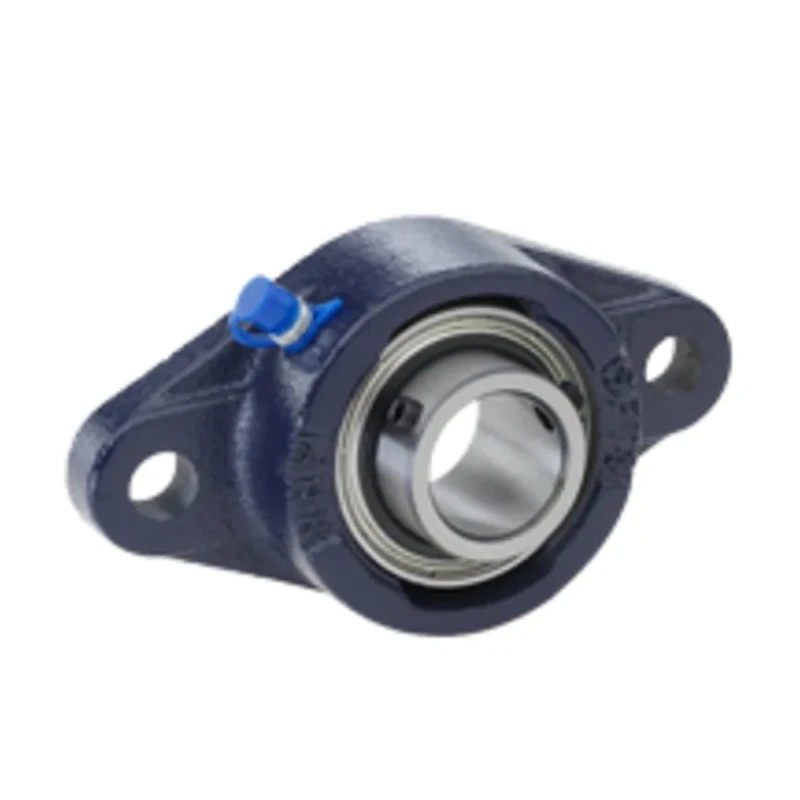

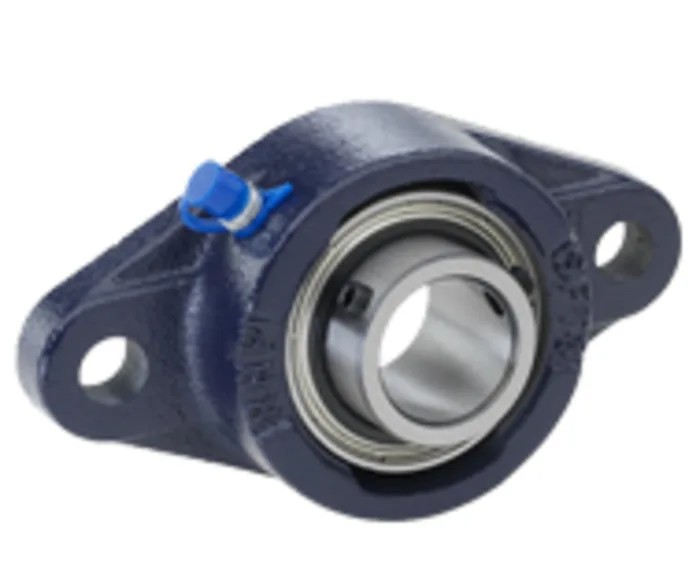

NSK-RHP 2 Hole Taper Bearing Unit 15 mm Inside Diameter Cast Iron Self-Lube Flange SFT15 R

NSK-RHP SFT15 is a 2 Hole Taper Bearing Unit designed for shafts with a 15 mm inside diameter. Manufactured from cast iron, this self-lubricating bearing unit offers robustness and longevity for demanding industrial environments.

This two-bolt flange bearing unit is easy to fit and remove without damage, facilitating maintenance and replacement. It features a taper bore to ensure a secure fit and accommodate initial misalignment through its spherical bearing insert. The unit includes nitrile/fabric seals and a C3 internal radial clearance, enhancing protection against contaminants and extending bearing life.

The bearing unit supports a static load rating of 122000N and a dynamic load rating of 157000N, handling heavy mechanical stresses effectively. With a limiting speed of up to 7000 rpm, it is suitable for applications in mechanical machinery, fluid power systems, and manufacturing equipment.

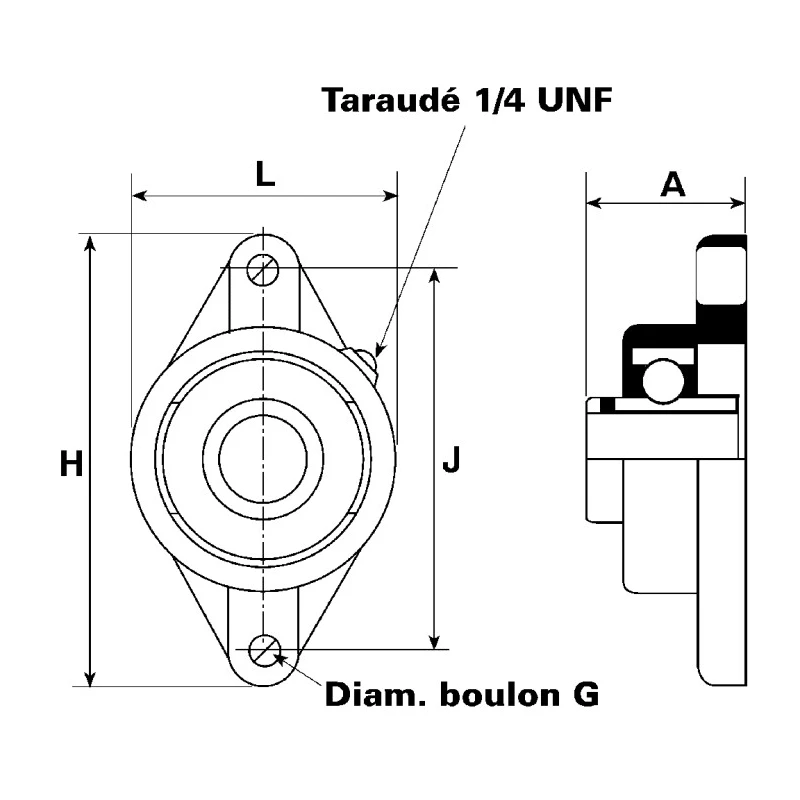

Dimensions of the unit include a length of 98.5 mm, width of 52.5 mm, and depth of 24.6 mm, with mount hole specifications of 10 mm diameter and 76.5 mm centre-to-centre spacing for secure installation. The casting complies with BS1452 standards, ensuring quality and reliability.

NSK-RHP supplies grease nipples and full fitting instructions, making this bearing unit straightforward to maintain and operate. Its sealed and robust construction makes it ideal for industrial, manufacturing, and mechanical applications requiring reliable rotating support.

Constructed from robust cast iron for long-lasting use. Includes two mounting holes with 10 mm size and 76.5 mm centre-to-centre spacing. Taper bore type to accommodate slight misalignment. Sealed with nitrile/fabric seals and C3 internal radial clearance for optimal performance.

Static load rating of 122000N and dynamic load rating of 157000N for heavy-duty applications. Limiting speed of 7000 rpm suitable for various industrial uses. Self-lube design with grease nipples and full fitting instructions supplied.

Dimensions: Length 98.5 mm, Width 52.5 mm, Depth 24.6 mm.

This NSK-RHP bearing unit is a reliable choice for rotary bearing needs in industrial tools, machinery, and fluid power systems. Browse the full NSK-RHP range and other premium Bearing Units on EnvMart for your technical requirements.
