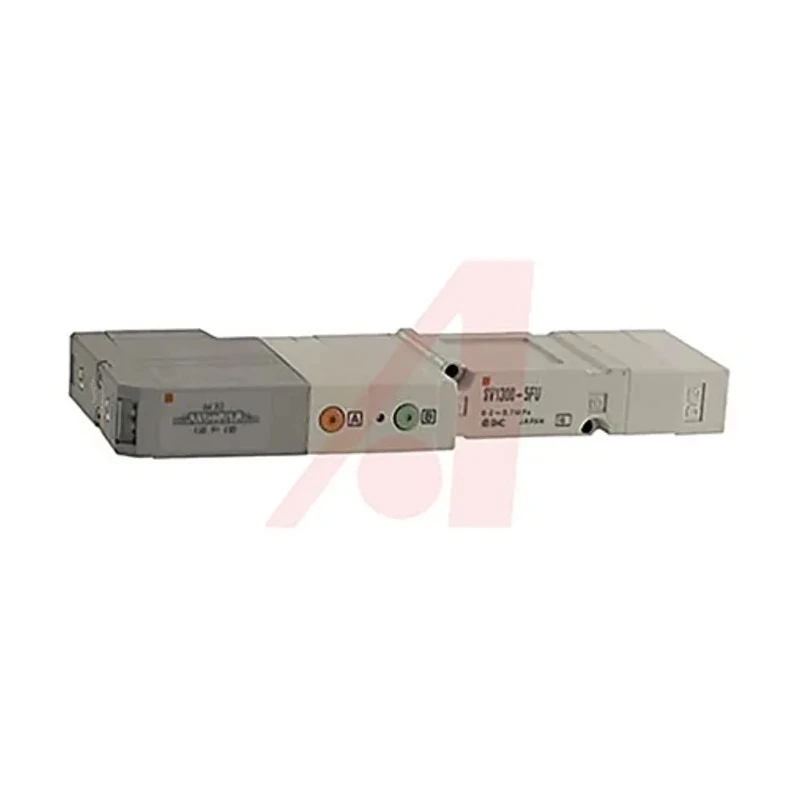

SMC Pneumatic Solenoid Valve One-Touch Fitting Direct Mount 5 Ports 24V DC Die Cast Aluminium Body SV1000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve One-Touch Fitting Direct Mount 5 Ports 24V DC Die Cast Aluminium Body SV1000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SV1000
Enclosure	IP67 (based on IEC529)
Mount Type	Direct
Series	SV1000/2000/3000/4000
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	One-Touch Fitting
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Operating pressure range	-100kPa to 0.7MPa
Actuation Type	Solenoid
Fluid	air
Maximum Flow Rate	1658L/min
Minimum Pilot Pressure	-100kPa
Ambient and fluid temperature	-10 to +50 °C
Response time (at 0.5MPa)	18ms or less

Key Features

Constructed with a durable die cast aluminium body for longevity.
Operates at a voltage of 24V DC ensuring efficient solenoid actuation.
Sealed with rubber material providing excellent sealing performance.
Supports operating pressures up to 0.7 Mpa, suitable for various pneumatic systems.
Features multiple valve functions including 2 position double check and 3/4 position options.
Designed to operate within a temperature range of -10°C to 50°C for diverse environments.
Offers a maximum flow rate of 1658 L/min for effective pneumatic control.
Equipped with IP67 enclosure rating ensuring protection against dust and water ingress.

Product Description

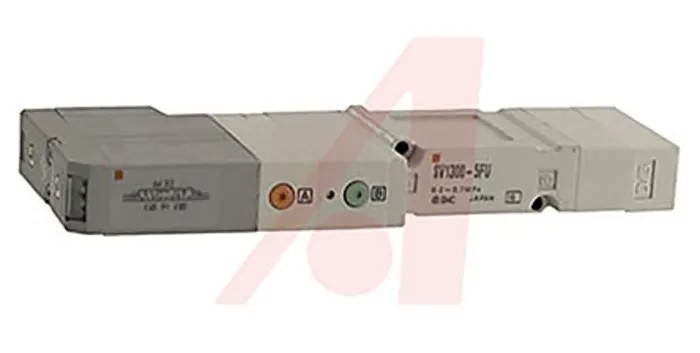

SMC SV1300R-5FU Pneumatic Solenoid Valve is part of the SV1000/2000/3000/4000 Series designed for versatile pneumatic control applications. Featuring a strong die cast aluminium body and a reliable solenoid actuation at 24V DC voltage, this valve ensures efficient operation in controlling air flow.

The valve includes a one-touch fitting port type and direct mount style for straightforward installation and manifold integration. Its rubber seal material guarantees excellent sealing performance under operating pressures up to 0.7 Mpa, suitable for demanding pneumatic systems.

Functionally, it supports multiple valve configurations such as 2 position double check, 3 position, 4 position, and single or double solenoid types. Operating temperature ranges from -10°C to 50°C, and it handles a maximum flow rate of 1658 L/min. The IP67 enclosure classification provides protection against dust and water, making it robust for industrial environments.

This solenoid valve operates with a quick response time of 18 milliseconds or less at 0.5 MPa. Its operating pressure ranges from -100 kPa to 0.7 MPa, and it is designed to work with air as the fluid medium.

Manufactured in Japan to high-quality standards, the SMC SV1300R-5FU valve is ideal for use in industrial automation, pneumatic systems in manufacturing plants, HVAC equipment, and fluid power tools requiring precise pneumatic control.

Constructed with a durable die cast aluminium body for longevity. Operates at a voltage of 24V DC ensuring efficient solenoid actuation. Sealed with rubber material providing excellent sealing performance. Supports operating pressures up to 0.7 Mpa, suitable for various pneumatic systems.

Features multiple valve functions including 2 position double check and 3/4 position options. Designed to operate within a temperature range of -10°C to 50°C for diverse environments. Offers a maximum flow rate of 1658 L/min for effective pneumatic control.

Equipped with IP67 enclosure rating ensuring protection against dust and water ingress. Manufactured in Japan, assuring high-quality engineering standards. Ideal for industrial, manufacturing, and HVAC pneumatic fluid control applications.
