Alpha Wire Ecogen Ecocable Mini Control Cable 6 Cores 0.38mm² 22 AWG Unshielded Grey Modified Polyphenylene 300V 78036 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78036 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.39mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.173 inch (4.39 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 22AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 0.16mm |
| Size of Strands | 0.16mm |
| Cable CSA | 0.38mm² |
| Conductors | 6, Black, Brown, Red, Orange, Yellow, Green |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/34 |
Key Features
- The cable features tinned copper stranded conductors for superior conductivity.
- It incorporates a halogen-free, grey mPPE jacket that is lightweight and fully recyclable.
- This cable supports a wide temperature range from -40°C to 80°C for versatile industrial use.
- Nominal diameter of 4.39mm with a jacket thickness of 0.38mm ensures durability and flexibility.
- Designed to comply with CE, CSA, and UL standards guaranteeing safety and performance.
- Ideal for industrial automation, communication systems, and electrical control applications.
- Its 6 distinct core colors facilitate easy wiring and identification.
Product Description
Alpha Wire 78036 SL005 Ecogen Ecocable Mini Control Cable is an unshielded, 6 core control cable that features a high-quality stranded tin copper conductor and a grey modified polyphenylene ether (mPPE) jacket. Rated for 300 V and 30 meters in length, this cable is designed for demanding industrial environments.

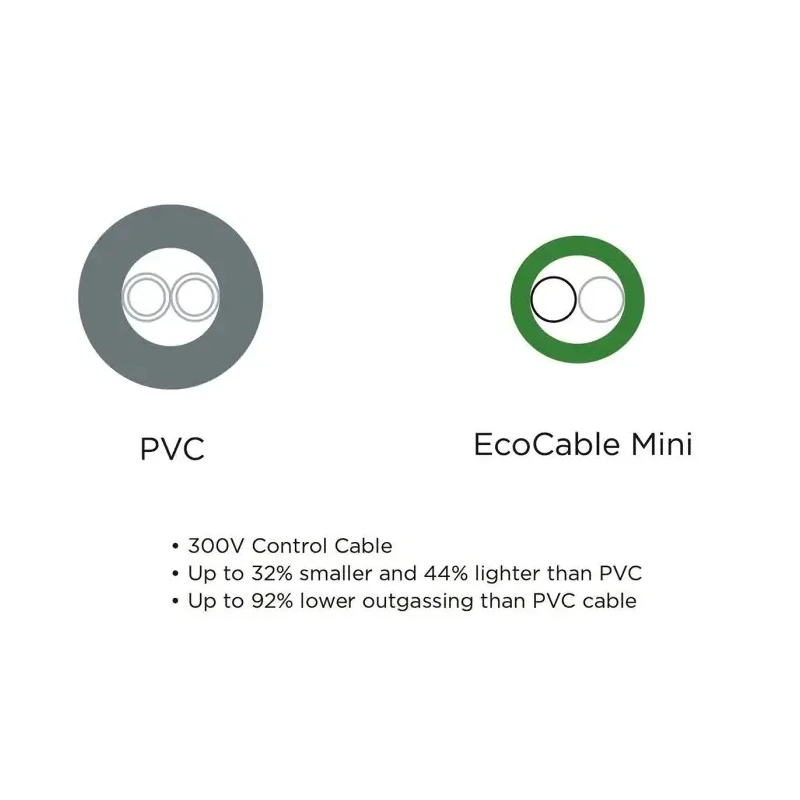

The EcoCable Mini range is celebrated for its environmental benefits, incorporating mPPE insulation and jacket materials that provide excellent dielectric properties, reducing cable wall thickness and weight by up to 65% compared to conventional PVC cables. This makes it easier to handle and install without sacrificing performance.
Operating temperature ranges from -40°C to 80°C, and the cable exhibits halogen-free fire behavior, enhancing safety in industrial settings. The stranded conductor is 22 AWG (0.38 mm²) with 19 strands of 0.16 mm diameter each, ensuring mechanical flexibility and reliable electrical conductivity.
Compliant with CE, CSA, and UL certifications, the cable is suitable for use in industrial automation, telecommunication circuits, radio transmitters, and NFPA 79-compliant machinery safeguarding electrical and fire hazards.
The cable cores are color-coded (Black, Brown, Red, Orange, Yellow, Green) for simplified identification and wiring. The nominal diameter is approximately 4.39 mm with a jacket thickness of 0.38 mm, supporting compact installations where space is limited.
The cable is unshielded but optimized for low outgassing and zero halogen emissions. The 100% recyclable mPPE jacket supports sustainability goals in manufacturing and operational practices. This cable delivers stable performance under fluctuating and extreme temperature conditions.
Its lightweight design reduces handling fatigue and installation time in field applications. Ideal for control panel wiring, factory automation, and communication networks requiring reliable multiconductor cabling. Explore the wide range of Alpha Wire Control Cables and solutions at EnvMart, your source for premium industrial wiring products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 300V, making it suitable for various industrial applications.
This control cable can operate at a maximum temperature of 80°C, allowing it to function effectively in demanding environments.
It features 6 distinct cores, which are color-coded for easy identification and wiring.
The nominal diameter of the cable is approximately 4.39 mm, which supports compact installations.
The cable has tinned copper stranded conductors and a grey modified polyphenylene ether (mPPE) jacket, which is halogen-free and recyclable.
The jacket thickness of this cable is 0.38 mm, contributing to its flexibility and durability.
Yes, it complies with CE, CSA, and UL standards, ensuring safety and performance in industrial applications.
The cable can operate at a minimum temperature of -40°C, making it suitable for a wide range of environments.
The conductors are stranded with 19 strands of 0.16 mm diameter each, enhancing mechanical flexibility and conductivity.
This cable is ideal for industrial automation, communication systems, and electrical control applications.
The cable is 30 meters long, providing ample length for various installation needs.
This model is unshielded, optimized for low outgassing and zero halogen emissions, suitable for specific applications where shielding is not required.
