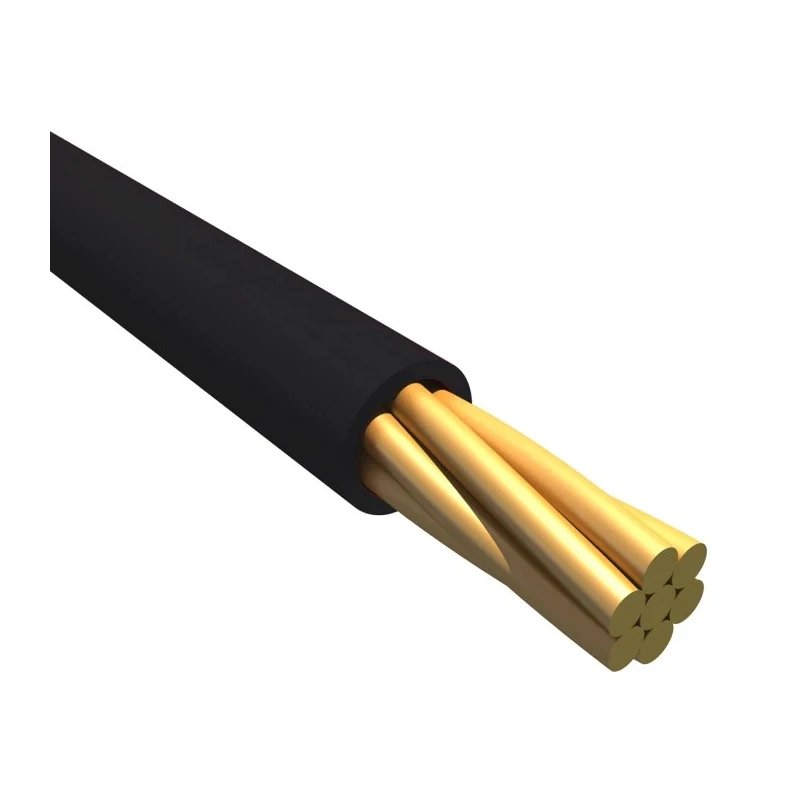

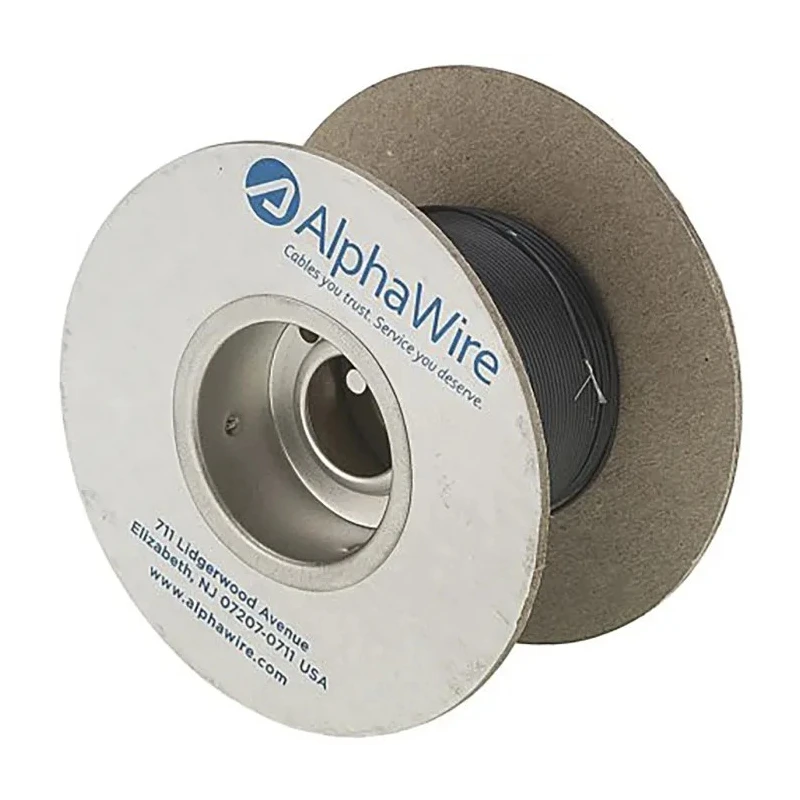

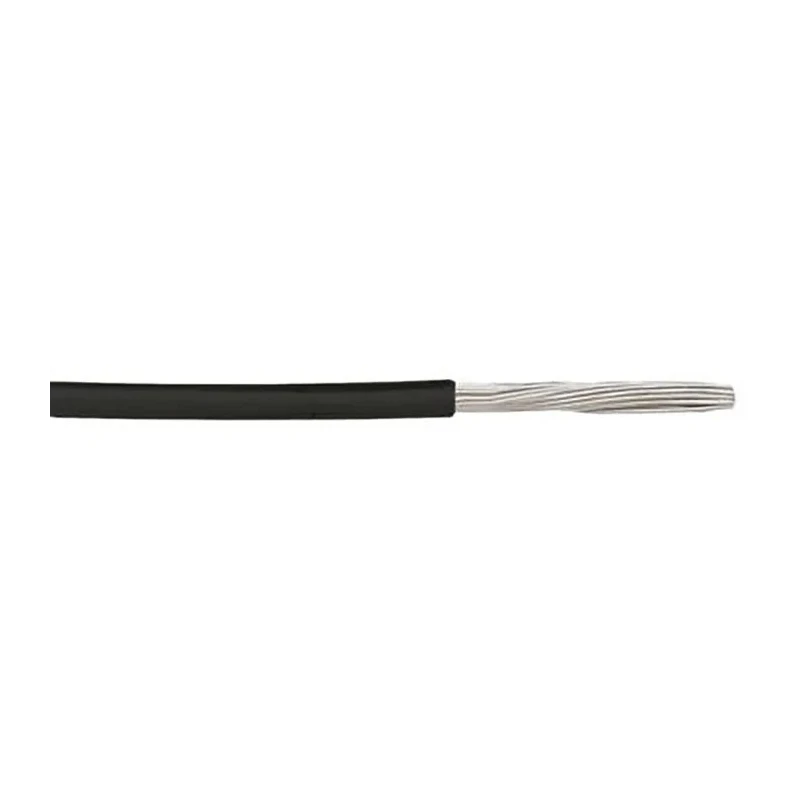

Alpha Wire Ecogen Ecowire Plus Series Black 1.1 mm² Hook Up Wire, 17 AWG, 19/0.25 mm Core Strands, 30 m, MPPE 6826 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 1.1mm² |
| Model | 6826 BK005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.68mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.066 Inch (1.68 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 17 AWG (0.96 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 17AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.25mm |
| Size of Strands | 0.25mm |
| Stranding | 19/30 (19 x 0.25) |
Key Features
- The wire has 19 strands of 0.25 mm diameter copper cores.
- MPPE insulation is lightweight, flame retardant, and environmentally friendly.
- Wide temperature range from -40°C to 110°C for versatile applications.
- Rated for 300 V voltage with an outside diameter of 1.68 mm.
- Complies with CE, ISO 6722, Reach, and RoHS standards for safety and sustainability.
- Ideal for industrial, solar, transportation, wind power, and medical equipment wiring.
- The length of the wire is 30 meters, suitable for various installation needs.
Product Description
Alpha Wire 6826 BK005 EcoWire Plus Series Hook Up Wire is a high-performance, black-coloured electrical wire with a 1.1 mm² cross-sectional area and 17 AWG size. It features 19 strands of 0.25 mm diameter copper conductor cores, totaling 30 meters in length and an outside diameter of 1.68 mm. The wire is insulated with MPPE (modified polyphenylene ether) material which is flame retardant, low smoke halogen free, and provides excellent fluid resistance, making it ideal for demanding factory environments.
This hook up wire is rated for 300 V and can operate in a wide temperature range from -40°C to 110°C, ensuring reliability under harsh industrial conditions. The EcoWire Plus insulation also contributes to lighter weight and reduced wall thickness while maintaining excellent dielectric strength compared to PVC. It contains no halogens or heavy metals, complying fully with RoHS and WEEE environmental regulations.
Applications for this wire include solar power systems, transportation wiring, wind power installations, industrial machinery, and medical equipment wiring. Its high resistance to oils, solvents, and fuels make it suitable for numerous industrial, manufacturing, and electrical automation applications.
The product complies with CE and ISO 6722 standards, ensuring quality and safety. EcoWire Plus represents a sustainable and recyclable alternative to conventional insulated wires, suitable for use in commercial and industrial electrical wiring.
The wire has 19 strands of 0.25 mm diameter copper cores. MPPE insulation is lightweight, flame retardant, and environmentally friendly. Wide temperature range from -40°C to 110°C for versatile applications. Rated for 300 V voltage with an outside diameter of 1.68 mm.
Complies with CE, ISO 6722, Reach, and RoHS standards for safety and sustainability. Ideal for industrial, solar, transportation, wind power, and medical equipment wiring. The length of the wire is 30 meters, suitable for various installation needs.
Explore more high-quality Hook Up Wires and cables in the Electronics & Electricals category at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this wire is 1.1 mm², which corresponds to a 17 AWG size.
This model can operate at a maximum temperature of 110°C.
It uses MPPE (modified polyphenylene ether) insulation, which is flame retardant and low smoke halogen free.
The wire is rated for a voltage of 300 V.
This wire has 19 strands of 0.25 mm diameter copper cores.
The length of this wire is 30 meters.
It complies with CE, ISO 6722, Reach, and RoHS standards for safety and sustainability.
The outside diameter of this wire is 1.68 mm.
The minimum operating temperature is -40°C.
This wire is suitable for applications in industrial, solar, transportation, wind power, and medical equipment wiring.
The conductor material is copper.
This wire is flame retardant and low smoke halogen free, making it suitable for demanding environments.
