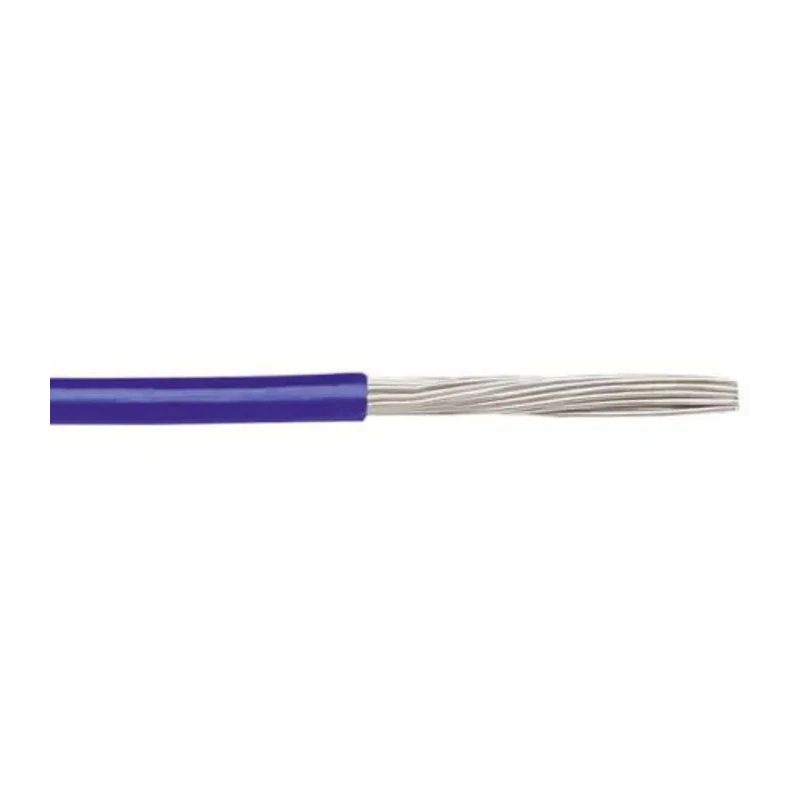

Alpha Wire Ecogen Ecowire Plus Series Blue 0.75 mm² Hook Up Wire, 18 AWG, 19x0.23 mm Strands, 30 m Length, MPPE 6825 BL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.75mm² |
| Model | 6825 BL005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.57mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.062 Inch (1.57 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 18 AWG (0.81 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Blue |
| Fire Behaviour | Excellent UV resistance, Low Smoke Zero Halogen, Superior abrasion resistance, UL VW1, VW-1 UL 1581 |
| American Wire Gauge | 18AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.23mm |
| Size of Strands | 0.23mm |
| Stranding | 19/0.0092 (19 x 0.23) |
Key Features
- Constructed with 19 strands of 0.23 mm diameter copper wire for flexibility and conductivity.
- Features blue MPPE jacket for excellent resistance to UV, abrasion, and hazardous fluids.
- 30 meters length suitable for factory and industrial applications.
- Complies with CE, ISO 6722, RoHS, and Reach standards.
- EcoWire Plus insulation provides low smoke zero halogen and is easily recyclable.
- Nominal outside diameter is 1.57 mm ensuring compact wiring solutions.
Product Description
Alpha Wire 6825 BL005 EcoWire Plus Series Blue 0.75 mm² Hook Up Wire, 18 AWG, with 19 strands of 0.23 mm diameter copper conductors, features high-quality MPPE insulation with a 30 m length. Designed for industrial and factory automation wiring, this wire offers excellent performance under demanding conditions.
The wire has a voltage rating of 300 V and operates reliably between -40°C and 110°C, making it suitable for a wide range of applications including solar, transportation, wind power, industrial, and medical sectors. The MPPE jacket provides superior UV resistance, low smoke zero halogen characteristics, and outstanding abrasion resistance conforming to UL VW1 and UL 1581 standards.
EcoWire Plus is an environmentally friendly solution containing no halogens or heavy metals, making it compliant with RoHS and Reach directives and fully recyclable. Its thinner insulation thanks to the modified polyphenylene ether technology results in reduced cable wall thickness and lightweight wiring.
The construction consists of stranded bare copper conductors sized 18 AWG (0.81 mm² cross-sectional area), with an insulation thickness of 0.008 inch (0.20 mm) and a nominal wire diameter of 0.062 inch (1.57 mm). The blue color jacket helps in easy identification and installation.
Constructed with 19 strands of 0.23 mm diameter copper wire for flexibility and conductivity. Features blue MPPE jacket for excellent resistance to UV, abrasion, and hazardous fluids. Voltage rating of 300 V with operating temperature range from -40°C to 110°C.
30 meters length suitable for factory and industrial applications. Complies with CE, ISO 6722, RoHS, and Reach standards. EcoWire Plus insulation provides low smoke zero halogen and is easily recyclable. Nominal outside diameter is 1.57 mm ensuring compact wiring solutions.
This product is ideal for industrial wiring applications requiring durable, safe, and environmentally responsible cables that withstand harsh fluids and temperature extremes. Its application suitability spans industrial automation, electrical assemblies, and renewable energy installations.
Explore more high-quality Hook Up Wires and cables in the Electronics & Electricals category at EnvMart for professional-grade electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this hook up wire is 300 V.
It operates reliably between -40°C and 110°C.
The wire has a length of 30 meters.
The nominal outside diameter is 1.57 mm.
It features MPPE insulation, which provides low smoke zero halogen characteristics and excellent resistance to UV and abrasion.
This wire is constructed with 19 strands of 0.23 mm diameter copper wire.
The conductors are made of copper, and the jacket is made of MPPE.
It complies with CE, ISO 6722, RoHS, and Reach standards.
The cross-sectional area is 0.75 mm².
It is suitable for industrial automation, electrical assemblies, and renewable energy installations.
The insulation thickness is 0.008 inch (0.20 mm).
The conductor size is 18 AWG (0.81 mm²).
