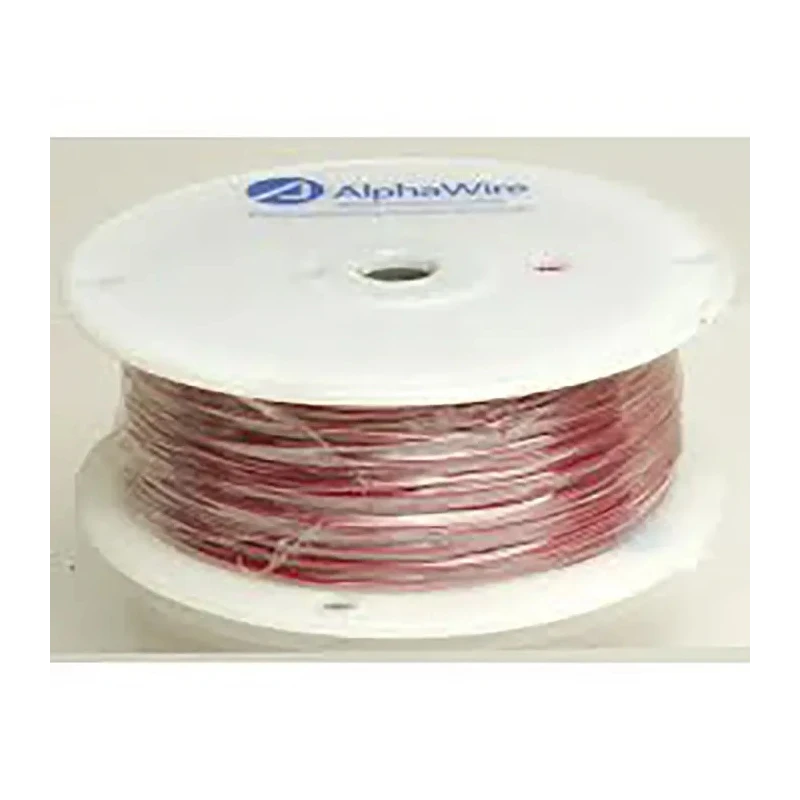

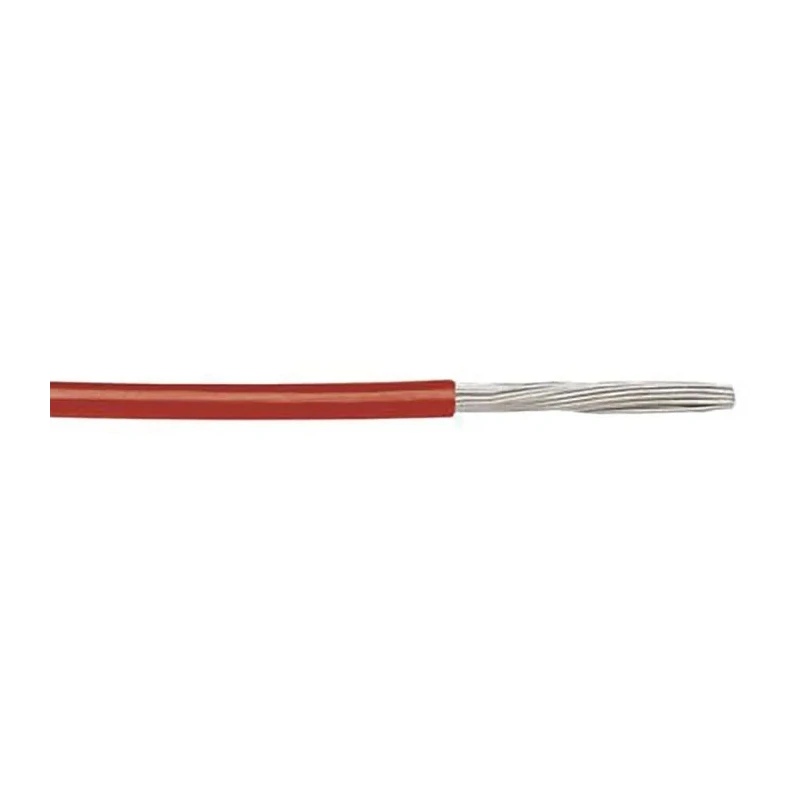

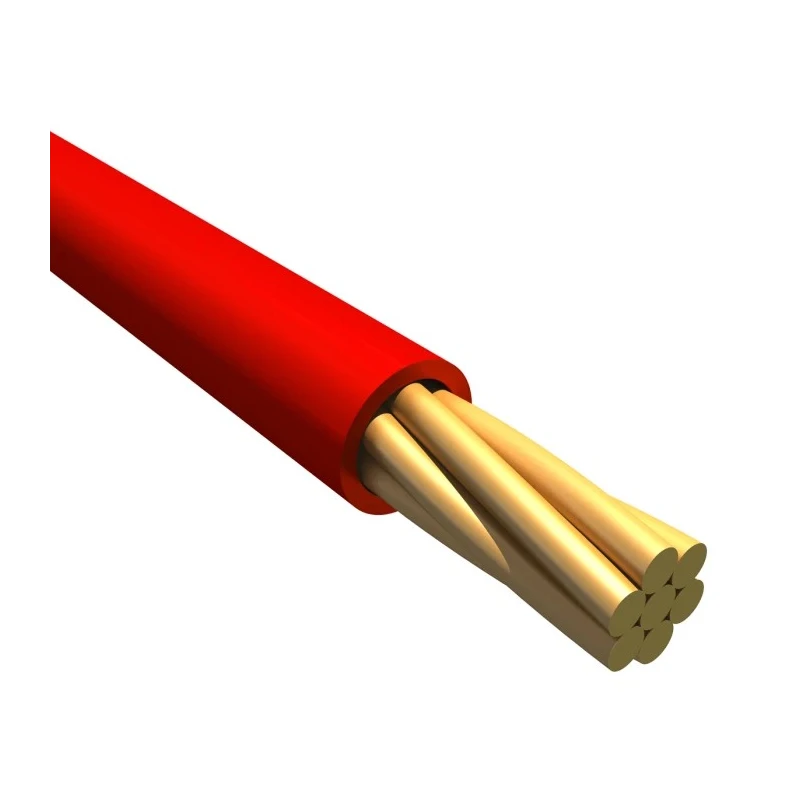

Alpha Wire EcoWire Plus 0.2 mm² Red 24 AWG Hook Up Wire 7/0.20 mm Core Strands 30 m MPPE 6822 RD005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.2mm² |
| Model | 6822 RD005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.02mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.040 Inch (1.02 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 24 AWG (0.23 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Red |
| Fire Behaviour | Flame Retardant, Low Smoke Halogen Free |
| American Wire Gauge | 24AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Stranding | 7/32 (7 x 0.20) |
Key Features
- The wire features a 0.2 mm² cross-sectional area and 24 AWG gauge.
- Constructed with stranded bare copper conductors for excellent conductivity.
- MPPE jacket material provides flame retardant, low smoke halogen-free protection.
- Rated for 300 V voltage and a temperature range of -40°C to 110°C.
- Designed for demanding industrial applications requiring fluid resistance and durability.
- EcoWire Plus insulation is lightweight, tough, and offers superior dielectric strength.
- Meets CE, ISO 6722, RoHS, and Reach compliance standards.
- Environmentally friendly, contains no halogens or heavy metals and is recyclable.
Product Description
Alpha Wire 6822 RD005 EcoWire Plus 0.2 mm² Red 24 AWG Hook Up Wire is engineered for industrial and commercial electrical wiring applications requiring reliable performance and fluid resistance. This cable provides superior electrical conductivity using stranded bare copper conductors with 7 strands of 0.20 mm diameter each, totaling a 24 American Wire Gauge (AWG) size with a 0.2 mm² cross-sectional area.
The insulation jacket is made from modified polyphenylene ether (MPPE), which is flame retardant, low smoke, and halogen-free, enhancing safety and environmental compliance.
Designed to operate in a temperature range between -40°C and +110°C and rated for 300 V, this hook-up wire is suitable for demanding factory environments, solar, transportation, wind power, industrial, and medical applications. The cable length is 30 meters with an outside diameter of approximately 1.02 mm, making it flexible yet durable.
EcoWire Plus insulation delivers improved fluid resistance and a thinner wall thickness without compromising insulation strength, enabling easy handling and installation. It is fully recyclable, free from hazardous materials, and helps meet RoHS, Reach, and WEEE regulations.
This product is CE and ISO 6722 certified, assuring compliance with international standards for thin wall and ultra-thin wall wires. The wire has stranded bare copper conductors. MPPE insulation enhances dielectric strength and reduces weight.
Temperature range suitable for extreme industrial conditions. Voltage rating ensures compatibility with standard electrical systems. Flame retardant and low smoke properties improve workplace safety. Environmentally conscious material supports sustainability goals.
Applications include solar panels, transportation wiring, industrial machinery, and medical equipment. Explore the wide range of high-quality Hook Up Wires from Alpha Wire to meet your specific technical and industrial wiring needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wire is rated for a maximum voltage of 300 V.
It can operate within a temperature range of -40°C to +110°C.
The cross-sectional area of this wire is 0.2 mm².
This model features 7 strands of 0.20 mm diameter each.
The conductors are made of stranded bare copper for excellent conductivity.
The outside diameter of the wire is approximately 1.02 mm.
The insulation is made from modified polyphenylene ether (MPPE), which is flame retardant and halogen-free.
Yes, it meets CE, ISO 6722, RoHS, and Reach compliance standards.
The wire is 30 meters long.
It is suitable for industrial machinery, solar panels, transportation wiring, and medical equipment.
The wire is flame retardant, low smoke, and halogen-free, enhancing safety.
The wire has a gauge size of 24 AWG (American Wire Gauge).
