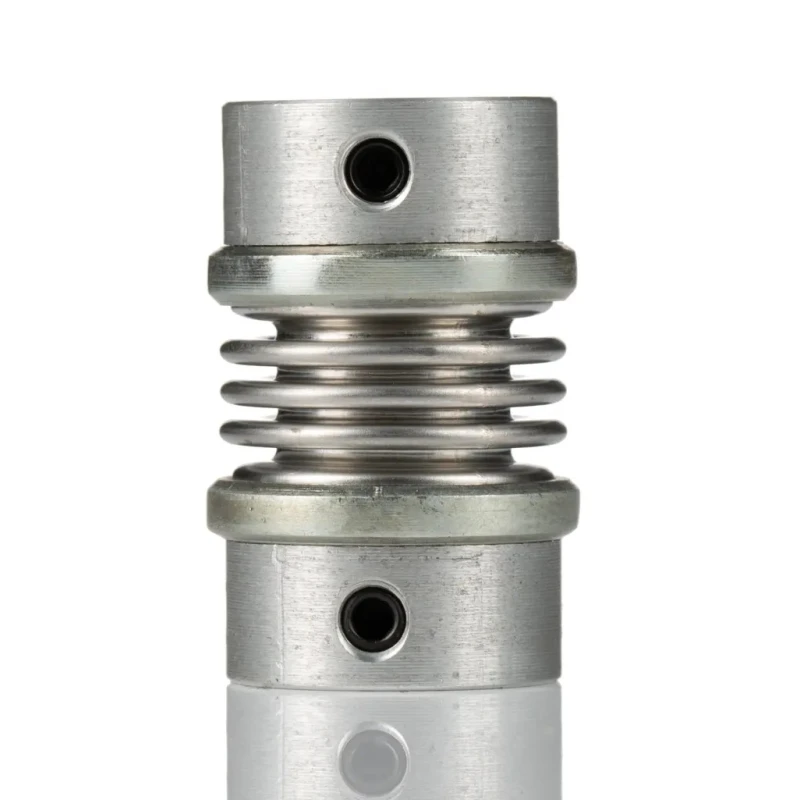

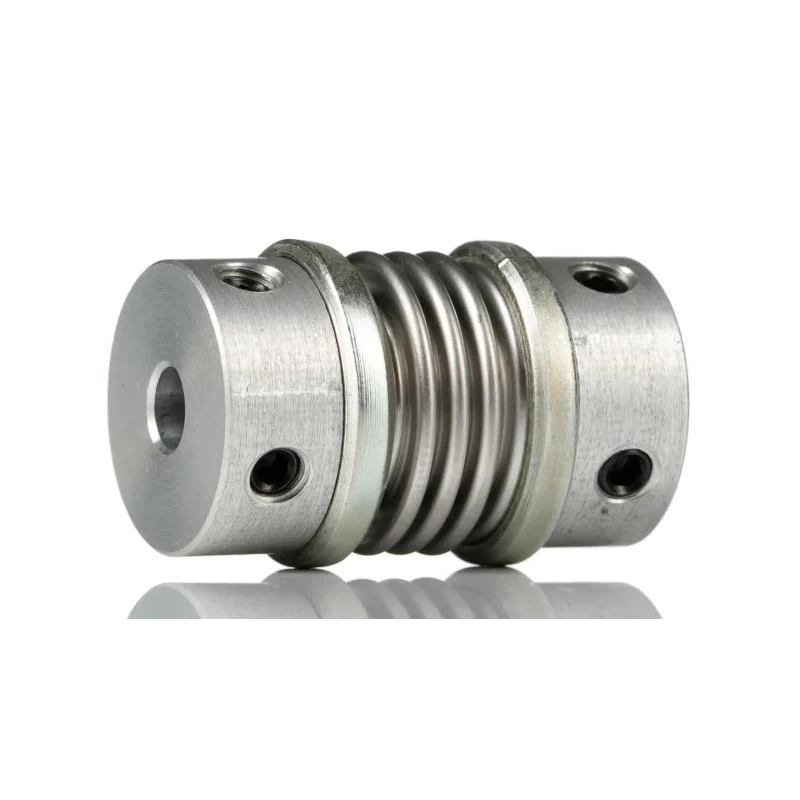

Huco Aluminium Hub Stainless Steel Bellows Screw Style Flexible Coupler 20 mm OD 5 mm Bore 31 mm Length 530.20.2020
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Screw Size | M4 |
| Brand | Huco |
| Length | 31mm |
| Maximum Speed | 5000rpm |
| Series | Flex B |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Torque Rating | 2.27Nm |
| Hub Material | Aluminium |
| Moment of Inertia | 90 x 10-8 kg/m² |
| Misalignment - Angular | 2° |
| Misalignment - Parallel | 0.06mm |
| Misalignment - Axial | 0.35mm |
| Bellows Material | Stainless Steel |
| Bore Size B | 5mm |
| Huco, 20 mm OD 8 mm, 31 mm Length Coupler 8 mmBrand | Huco |
Key Features
- The coupler has a 20 mm outer diameter and a 5 mm bore size on both hubs.
- It features a 31 mm length and a screw style for secure fastening.
- Maximum operating speed is rated at 5000 rpm suitable for dynamic positioning systems.
- The torque rating is 2.27 Nm, supporting precise torque transmission.
- It accommodates angular misalignment up to 2 degrees and parallel misalignment of 0.06 mm.
- The bellows material is stainless steel providing resilience and durability.
- Operating temperature ranges from -40°C to 120°C, making it suitable for diverse industrial environments.
- The hub is crafted from aluminium to reduce weight and enhance performance.
Product Description
Huco 530.20.2020 flexible coupler combines aluminium hubs with stainless steel bellows to deliver high torsional stiffness and low inertia, making it ideal for servo drive applications requiring precise dynamic position control.
The coupler features a 20 mm outer diameter with 5 mm bore sizes on both sides and measures 31 mm in length. Its screw-style design ensures reliable mounting and mechanical integrity during operation at speeds up to 5000 rpm.
With a torque rating of 2.27 Nm, this coupling efficiently transmits torque while accommodating slight misalignments, including up to 2 degrees angular, 0.06 mm parallel, and 0.35 mm axial misalignments. The stainless steel bellows enhance flexibility and durability under thermal and mechanical stress.
Operating temperature suitability from -40°C to 120°C broadens its application range including industrial, laboratory, manufacturing, and servo drive systems demanding precision and reliability.
The coupler's aluminium hub minimizes weight without compromising strength. Its stainless steel bellows offer corrosion resistance and flexibility under misalignment. Rated for maximum speed of 5000 rpm for high-speed machinery applications.
Designed to support torque up to 2.27 Nm for reliable power transmission. Capable of compensating for angular, parallel, and axial misalignments ensuring operational stability. Length of 31 mm optimizes the space requirement in tight assembly configurations.
Screw style fastening with M4 screws guarantees secure installation. Manufactured in the United Kingdom ensuring quality and performance standards.
This flexible coupler is widely used in mechanical power transmission setups, servo drives, CNC machinery, and robotics where positional accuracy and dynamic control are essential.
Explore more high-quality mechanical power transmission components and flexible couplers to enhance your industrial assemblies at EnvMart.
Explore more products in our Mechanical Power Transmission Coupler category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating speed for this flexible coupler is rated at 5000 rpm, making it suitable for high-speed applications.
This coupler has a torque rating of 2.27 Nm, allowing for efficient torque transmission in various applications.
The hubs of this coupler are made from aluminium, while the bellows are constructed from stainless steel, providing resilience and flexibility.
This flexible coupler has a 20 mm outer diameter, a 5 mm bore size on both hubs, and a length of 31 mm.
The operating temperature range for this model is from -40°C to 120°C, suitable for diverse industrial environments.
It can accommodate angular misalignment up to 2 degrees, ensuring operational stability in slightly misaligned setups.
This model features a screw-style design that uses M4 screws for secure fastening during operation.
The coupler can handle parallel misalignment of up to 0.06 mm, allowing for slight deviations in alignment.
This flexible coupler can accommodate axial misalignment of up to 0.35 mm, enhancing its versatility in applications.
It is widely used in mechanical power transmission setups, servo drives, CNC machinery, and robotics where positional accuracy is essential.
This flexible coupler is manufactured in the United Kingdom, ensuring adherence to quality and performance standards.
This model is part of the Flex B series, designed for high torsional stiffness and low inertia in dynamic applications.
