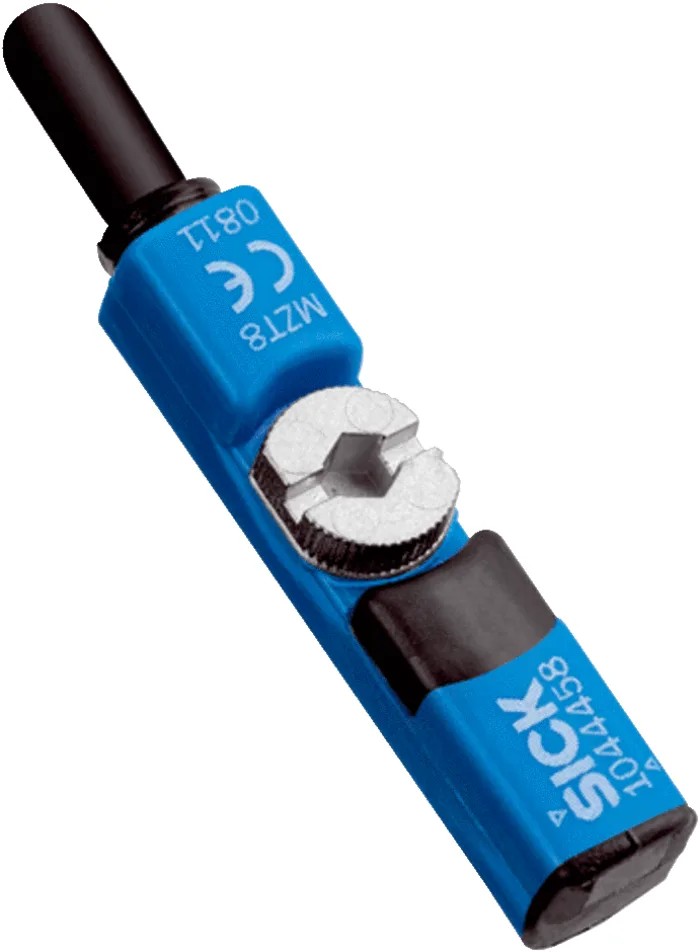

SICK Pneumatic Sensor T-Slot Construction, IP68 Rated, Magnetic Cylindrical Sensor, 30V DC, LED Indicator MZT8-2V6PSAKR0

SICK MZT8-2V6PSAKR0 pneumatic sensor is specially designed for use in pneumatic actuators featuring T-slot construction. It operates at a voltage of 30V DC and incorporates an LED indicator for visual feedback during operation. The sensor employs patented GMR technology along with the SICK ASIC for precise switching, minimizing multiple switching operations and enhancing machine performance.

This sensor mounts quickly and easily by inserting it into the T-slot from above and securing it with a combined hexagon socket and slotted screw, saving installation time and eliminating the need to remove cylinder end caps.

The MZT8 sensor comes with various enclosure ratings, including IP 67, IP 68, and IP 69K, providing excellent resistance to dust and water ingress, making it suitable for applications in demanding industrial environments. It offers temperature resistance up to 100 °C in high-temperature variants, suitable for use in factory automation, machine building, metalworking, and handling and assembly technology.

Its compact 2.9 mm diameter housing allows use in short stroke cylinders, while its rugged design resists shock and vibration to maintain stable positioning in the slot, contributing to low maintenance costs and extended sensor life.

Typical applications include detection of piston position in pneumatic cylinders, monitoring cylinder end positions and press travel, gripper state detection, position monitoring for indexing stations, and clamping cylinder supervision across consumer goods, automotive, electronics, solar industries, and metal processing.

Construction features T-slot mounting compatible with standard pneumatic cylinders. Operates reliably with a 30V DC voltage supply. Equipped with an LED indicator for clear operational status. Sensor uses magnetic cylindrical measurement principle with PNP switching action.

High ingress protection rated IP68 ensures durability in harsh environments. Temperature range from -30°C to 80°C with variants rated up to 100°C for high-temperature applications. Compact 2.9 mm diameter sensor housing suitable for short stroke cylinders.

Easy and quick mounting via insertion from above using combined fixing screw. Certified to standards DIN 40050, EN 60529, and EN 60947-5-2 for industrial compliance. Robust design resistant to shock and vibration reduces maintenance and extends service life.
