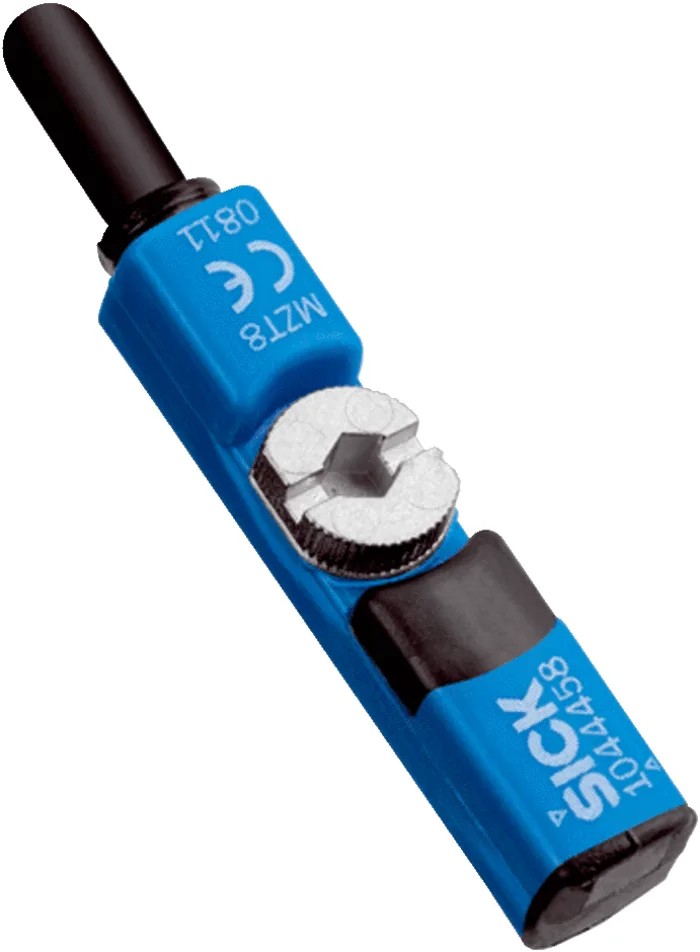

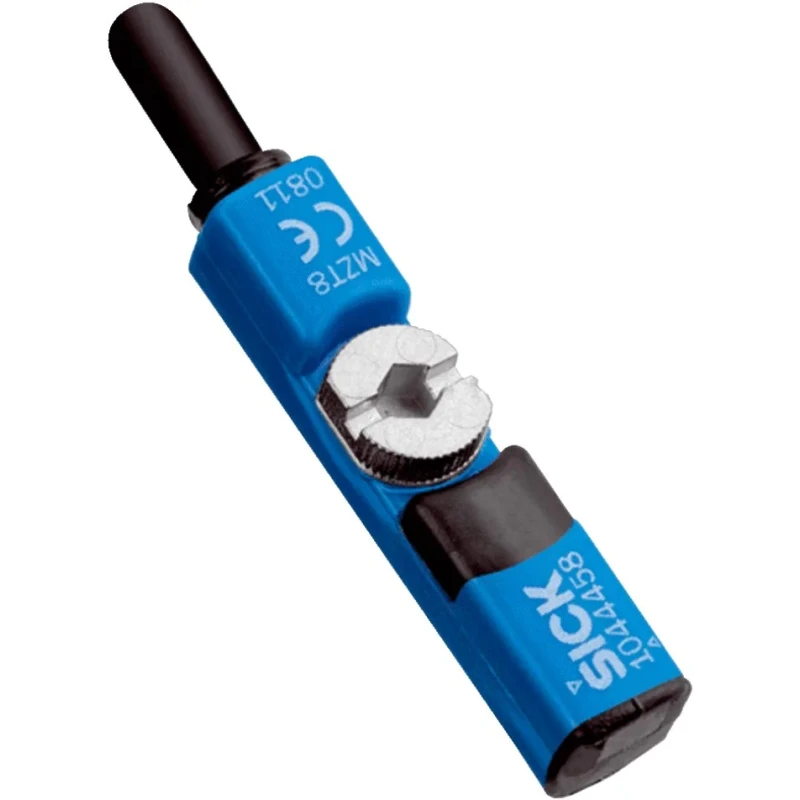

SICK Pneumatic Sensor IP67 30V DC Magnetic Cylindrical Sensor for T-Slot Cylinders MZT8-03VPS-KWB

SICK MZT8-03VPS-KWB pneumatic sensor is a high-precision magnetic cylindrical sensor specifically engineered for T-slot pneumatic cylinders. Featuring an IP67-rated polyamide 12 plastic housing, the sensor ensures robustness and reliability in demanding industrial and mechanical environments.

It operates with a supply voltage of 30V DC and is capable of functioning at extreme temperatures from -30°C up to 80°C, with variants tolerating up to 100°C, enhancing its applicability in high-temperature settings. The sensor’s compact design with a diameter of 2.9 mm enables installation in short stroke cylinders, making it versatile for various pneumatic actuators, linear slides, and grippers.

Mounting is easily accomplished by inserting the sensor from above into the T-slot groove and securing it with a combined fixing screw featuring both a hexagon socket and slotted head. This innovative mounting design reduces installation time and eliminates the need to remove cylinder end caps during servicing.

The MZT8 sensor employs state-of-the-art patented GMR technology combined with SICK ASIC electronics, delivering precise piston position detection with a single switching attempt, thereby enhancing machine output and reducing malfunction risks. Its PNP switching output and normally open (NO) function provide compatible signals for controlling pneumatic systems with the assurance of signal reliability and minimal interference.

Its LED indicator simplifies operational diagnostics, allowing quick status checks during installation and maintenance. The sensor carries enclosure ratings of IP67, IP68, and IP69K, ensuring excellent protection against dust, water ingress, and further environmental challenges common in industrial settings.

This sensor fully complies with international standards EN 60947-5-2, DIN 40050, and EN 60529, certifying its suitability for safety and operational requirements in pneumatic sensor applications.

Common industrial applications include monitoring piston position in pneumatic cylinders, end position detection, assembly line automation, gripper state monitoring, and presence checks in manufacturing and electronics industries.

The sensor's rugged construction and high environmental ratings extend its life and reduce maintenance costs. Quick and easy mounting design saves time during assembly and replacement. High accuracy and reliable switching improve machine performance and product quality.

Wide operating temperature range allows usage in diverse conditions. Compliance with standards ensures safety and compatibility with industrial systems.
