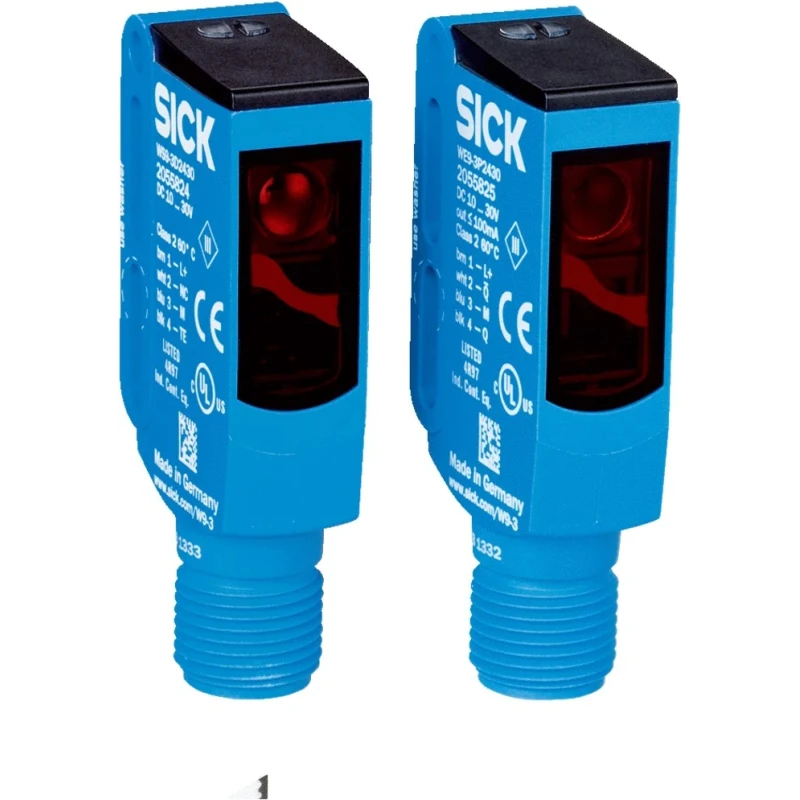

SICK Through Beam Photoelectric Sensor, Block Sensor, Detection Range 0 → 1 m, Output NPN, IP66, IP67, IP69K WSE9-3N2430
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | Polarised Red Light |
| Connections | M8 and M12 male connector, cable as well as cable with male connector |
| Detection range | 0 → 1 m |
| Model | WSE9-3N2430 |
| IP Rating | IP66, IP67, IP69K |
| Mount Type | Hole |
| Housing Material | Plastic |
| Output type | NPN |
| Series | W9 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M12 Connector |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | UL File No. NRKH.E181493 |
| Sensor Style | Block |
Key Features
- This block sensor uses polarized red light for accurate detection.
- Supports maximum DC voltage of 30V and current rating up to 100mA.
- Features a rugged plastic VISTAL™ housing suitable for harsh environments.
- Offers fast response time of 500 microseconds for high-speed applications.
- Equipped with 4-pin M12 connector for easy integration.
- Operational temperature range from -40°C to 60°C ensures broad usability.
- Certified under UL File NRKH.E181493 and meets EN IEC 63000 hazardous area standards.
- Detects small objects and transparent materials reliably.
Product Description
SICK WSE9-3N2430 Through Beam Photoelectric Sensor is a high-performance block sensor designed for precise object detection within a range of 0 to 1 meter. It employs polarized red light as the light source and features an NPN output type with a 4-pin M12 connector interface. The sensor's rugged VISTAL™ plastic housing ensures resistance to mechanical stress and environmental factors, meeting IP66, IP67, and IP69K ratings for dust, water, and high-pressure cleaning protection.
This sensor offers a quick response time of 500 microseconds enabling it to be used in fast automation processes. With a maximum DC voltage of 30V and current rating of 100mA, it supports diverse industrial applications. It can operate reliably within the temperature range of -40°C to 60°C, making it suitable for challenging environmental conditions.
The WSE9-3N2430 model complies with UL File No. NRKH.E181493 and adheres to EN IEC 63000 hazardous area certification, ensuring safety and compliance for industrial use. Its robust mounting via a hole mount and M3/M4 hole pattern provides flexible installation options. It effectively detects small objects, transparent materials, and those within narrow openings, minimizing machine downtime by suppressing optical interference.
Common industrial applications include detection of fine product details, presence checking of transparent or shiny objects, and stack position monitoring in manufacturing and automation environments. Its durable construction and advanced SIRIC® technology provide excellent background suppression and optimal performance even in harsh industrial conditions.
This sensor utilizes polarized red light for accurate detection. Robust plastic VISTAL™ housing with IP66, IP67, IP69K protection. Through beam detection type suitable for small object sensing. Includes 4-pin M12 connector for versatile connectivity.
High-speed response time of 500 microseconds. Wide temperature operation range from -40°C to 60°C. Certifications: UL File No. NRKH.E181493, EN IEC 63000 hazardous area. Ideal for industrial automation, manufacturing, and quality control applications.
Explore SICK brand Photoelectric Sensors and advanced automation products on EnvMart for precise and reliable industrial sensing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is from 0 to 1 meter.
It features an NPN output type.
The maximum operating temperature is 60°C.
The response time is 500 microseconds.
This model has IP66, IP67, and IP69K ratings for dust and water protection.
It uses polarized red light for accurate detection.
It is equipped with a 4-pin M12 connector for easy integration.
The minimum operating temperature is -40°C.
It can detect small objects and transparent materials effectively.
This sensor uses a hole mount type for installation.
It complies with EN IEC 63000 hazardous area certification.
The maximum DC voltage supported is 30V.
