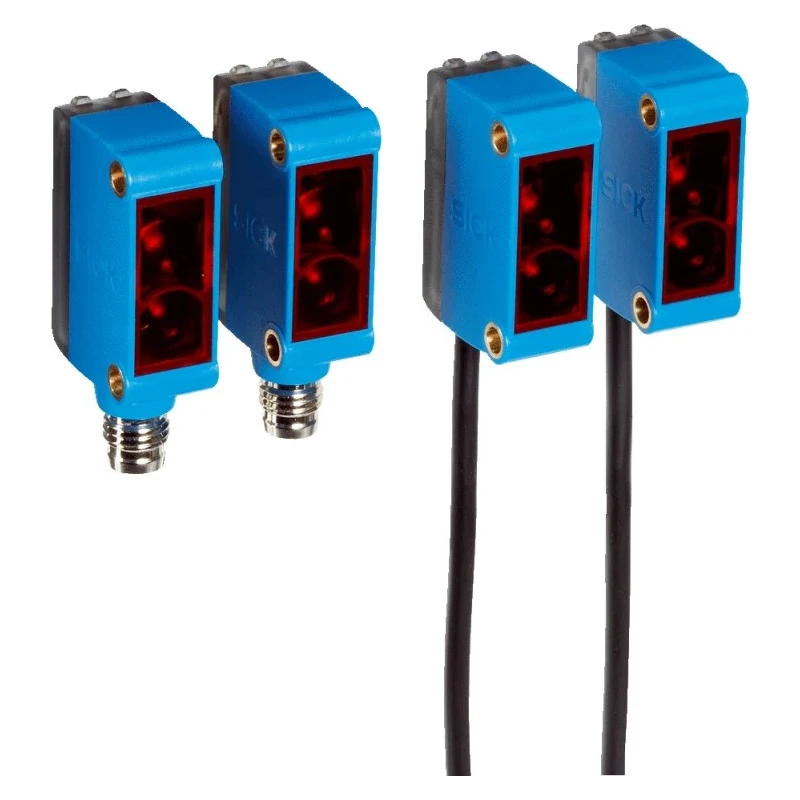

SICK Through Beam Photoelectric Sensor, Block Style, Detection Range 0 to 15 m, PNP Output, 30V DC, IP67 GSE6-P7112
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | Polarised Red Light |
| Detection range | 0 → 15 m |
| Model | GSE6-P7112 |
| IP Rating | IP67 |
| Mount Type | Bracket |
| Housing Material | Plastic |
| Output type | PNP |
| Series | G6 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | 4-Pin Connector |
| Interface Type | M12 |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | UL File No. NRKH.E348498 & NRKH7.E348498 |
| Sensor Style | Block |
Key Features
- The sensor operates with a maximum DC voltage of 30V and maximum current of 100mA.
- It features a 4-pin M12 connector and uses polarised red light as the light source.
- Designed for harsh environments, it has an IP67 protection rating ensuring dust-tight and waterproof performance.
- Operating temperature ranges from -25°C to 55°C, suitable for industrial conditions.
- Equipped with user-friendly setting screws, metal inserts for mounting, and bright indicator LEDs for easy operation.
- The sensor has an ultra-fast response time of 500μs enabling rapid detection tasks.
- Housing is made of durable plastic with bracket mount type for secure installation.
- It is UL certified with approvals NRKH.E348498 & NRKH7.E348498.
Product Description
SICK GSE6-P7112 Through Beam Photoelectric Sensor is a high-performance block-style sensor designed for industrial automation and control applications. It provides reliable detection over a range of 0 to 15 meters using polarised red light and features a robust plastic housing with IP67 ingress protection.
This sensor operates with a maximum DC voltage of 30V and supports a maximum current of 100mA, interfaced through a 4-pin M12 connector for seamless integration into existing systems. The compact design includes user-friendly setting screws and metal inserts enabling easy and secure mounting with a bracket type fixture.
Thanks to its fast response time of 500 microseconds and PNP output type, it is well-suited for rapid detection tasks in demanding industrial environments. Its operating temperature span from -25°C to 55°C ensures stable operation under varying conditions.
The sensor is UL approved under file numbers NRKH.E348498 and NRKH7.E348498, reflecting its compliance with safety and quality standards.
Typical applications include component detection in robot grippers, transport control on conveyor lines, pallet shuttle reference positioning, access protection at high loaders, and protrusion monitoring on package conveyors. It is also used extensively for level monitoring, height control, and presence detection on induction lines and transfer points.
The sensor operates at 30V DC with PNP output. Detection range extends from 0 to 15 meters with polarised red light source. IP67 rated housing provides dust-tight and water-resistant protection. Robust plastic housing with bracket mount facilitates easy installation.
Fast response time of 500 microseconds for quick and accurate detection. Operating temperature range between -25°C and 55°C ensures reliability in harsh environments. UL certified, confirming adherence to safety standards.
Equipped with 4-pin M12 interface for convenient electrical connections.
Manufactured in Hungary, the SICK GSE6-P7112 is a dependable sensor solution for automation, manufacturing, transportation, and packaging industries. It is designed to enhance process reliability and efficiency in complex control systems.
Explore the wide range of SICK sensors and automation equipment at EnvMart for tailored industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor extends from 0 to 15 meters.
It features a PNP output type for electrical interfacing.
The maximum operating voltage for this unit is 30V DC.
This sensor has an ultra-fast response time of 500 microseconds.
The sensor has an IP67 rating, making it dust-tight and waterproof.
It operates effectively within a temperature range of -25°C to 55°C.
The GSE6-P7112 is designed for bracket mounting, facilitating secure installation.
It uses polarised red light as its light source for detection.
This model features a 4-pin M12 connector for electrical connections.
The housing of the sensor is made of plastic, designed for durability in industrial settings.
It is UL certified with approvals under file numbers NRKH.E348498 and NRKH7.E348498.
This sensor is manufactured in Hungary.
