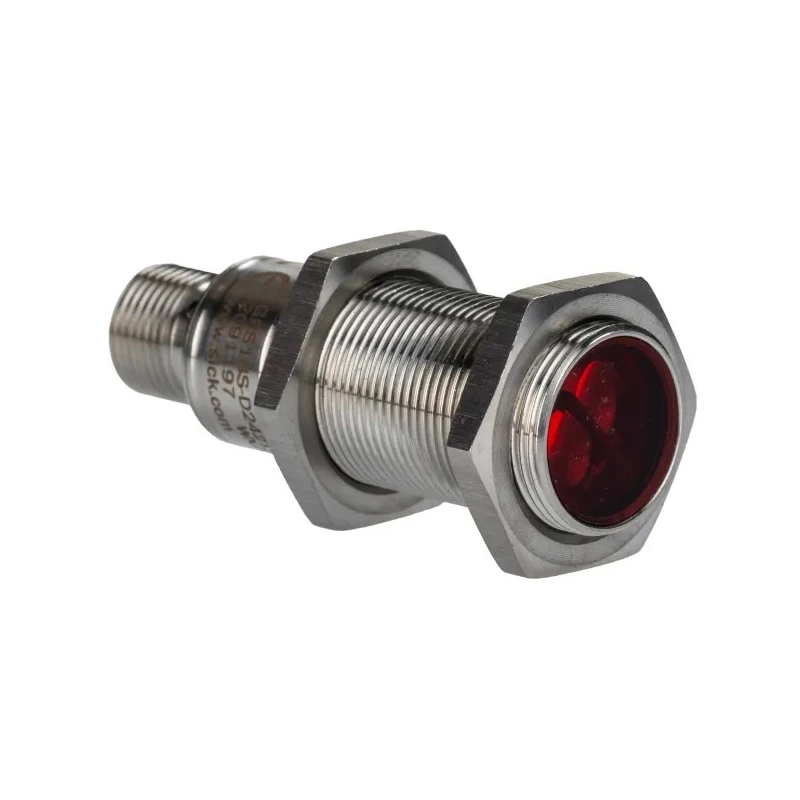

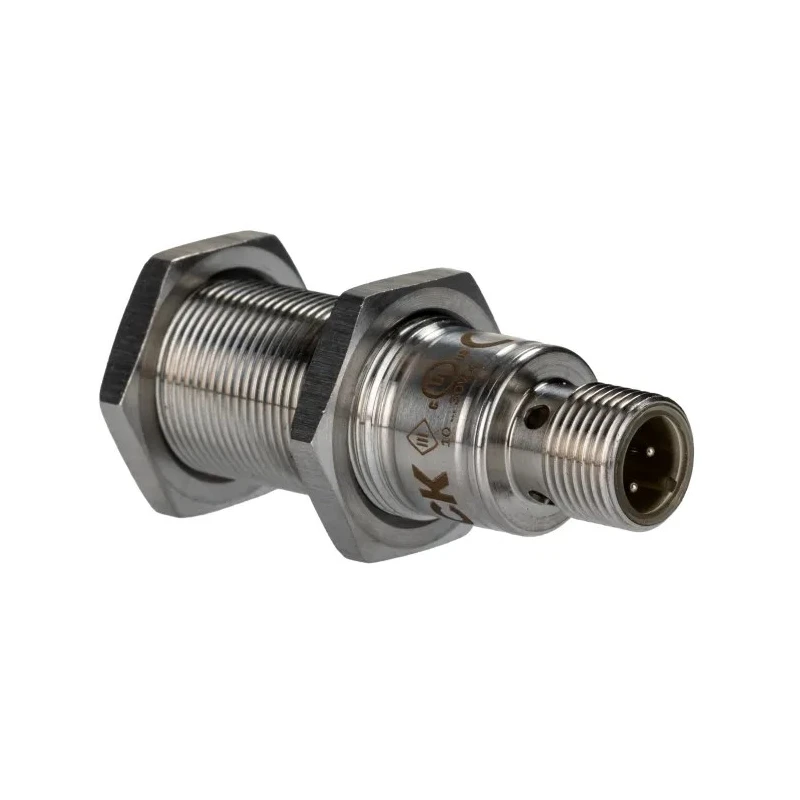

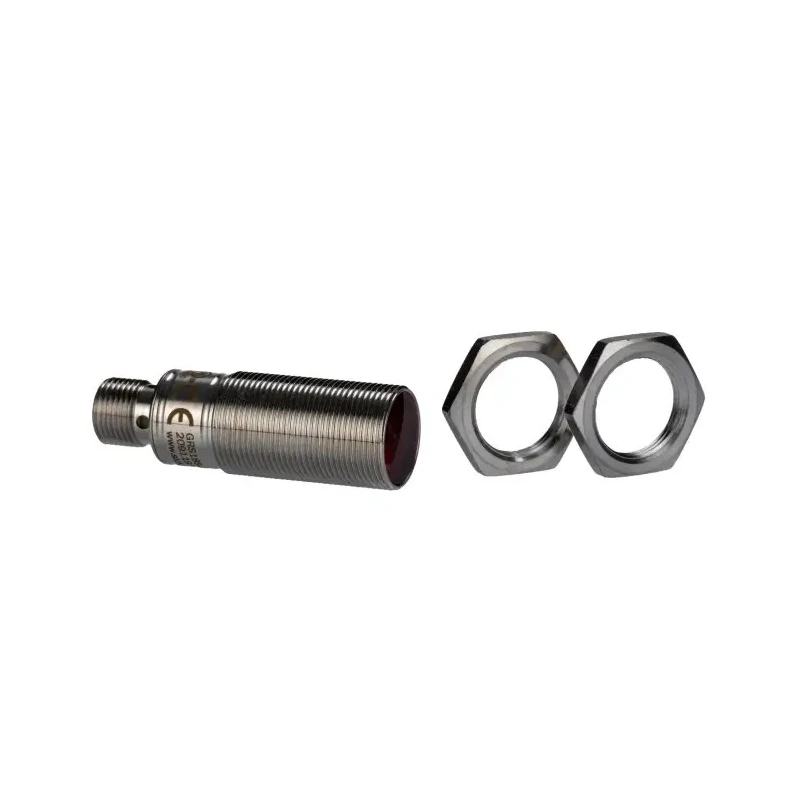

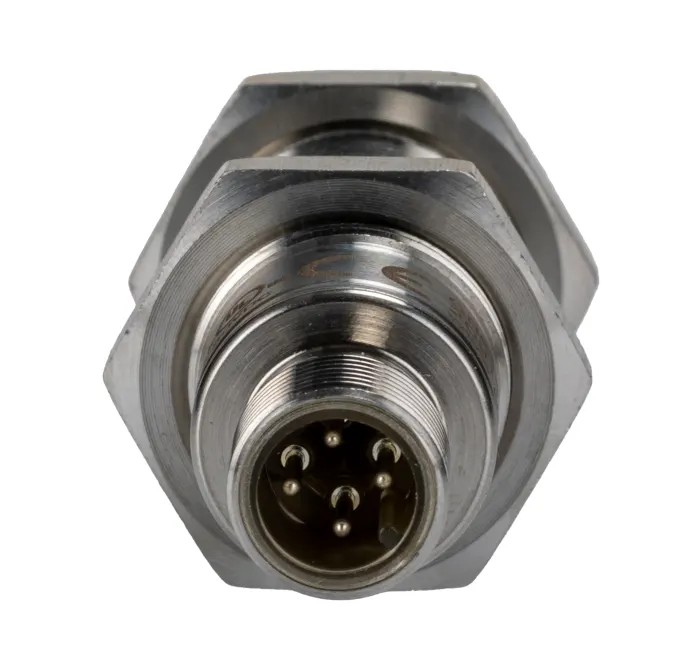

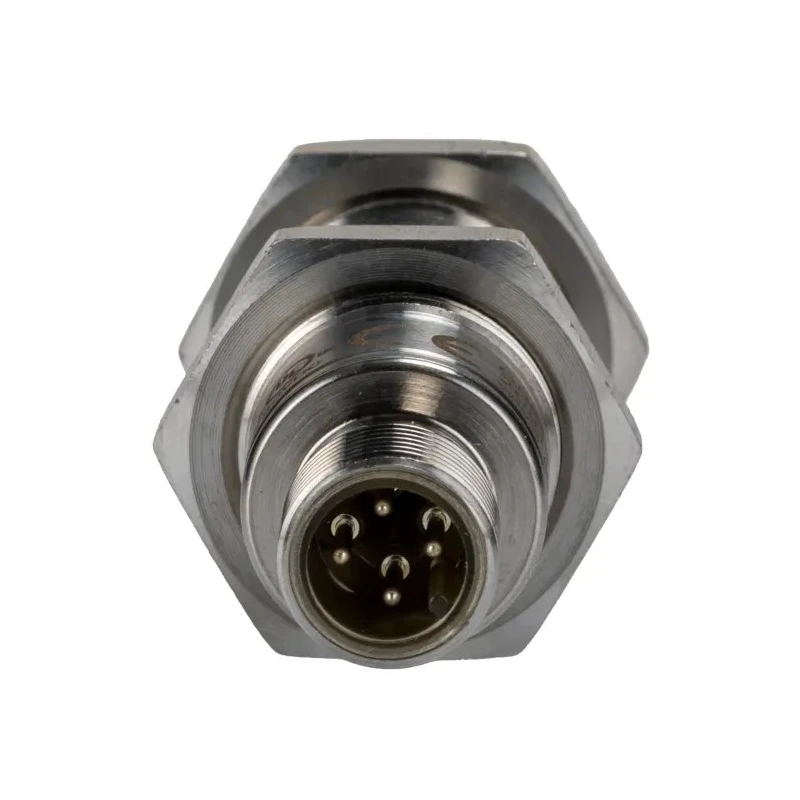

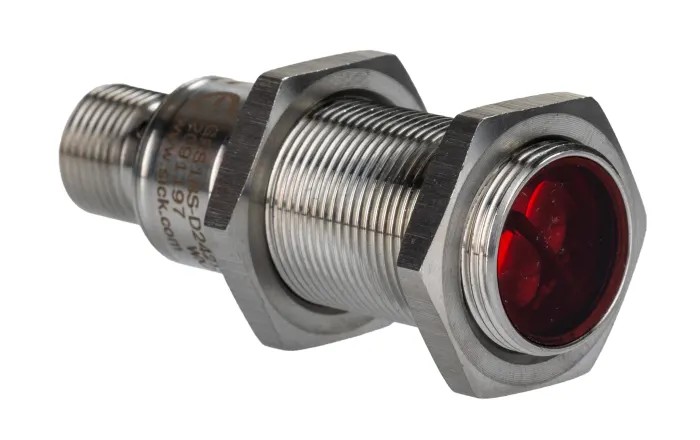

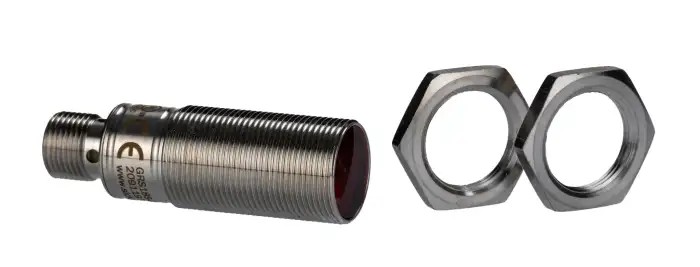

SICK Through Beam Photoelectric Sensor, Barrel Style, Infrared Light Source, 0 → 15 m Detection Range, PNP GRSE18S-P2421V
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display | screen |
| Brand | SICK |
| Response time | 500μs |
| Light Source | Infrared |
| Detection range | 0 → 15 m |
| Model | GRSE18S-P2421V |
| IP Rating | IP67, IP68, IP69K |
| Mount Type | Screw |
| Housing Material | Stainless Steel |
| Output type | PNP |
| Series | GR18 Inox |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M12 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | EN 60947-5-2 |
| Sensor Style | Barrel |
Key Features
- The stainless steel housing offers high mechanical ruggedness and chemical resistance.
- Detection range extends from 0 to 15 meters using infrared light source for accurate sensing.
- Designed with an M18 thread and a 4-pin M12 connector for easy mounting and electrical integration.
- Equipped with short response time of 500 microseconds ensuring fast detection capability.
- Rated for operation in temperatures from -25°C to 55°C suitable for harsh industrial environments.
- Certified to standard EN 60947-5-2 and resistant to acidic and alkaline cleaning agents.
- IP67, IP68 and IP69K rated, supporting washdown and food processing applications.
- Suitable for applications in food and beverage, pharmaceuticals, automotive, and packaging industries.
Product Description
SICK GRSE18S-P2421V Through Beam Photoelectric Sensor is a high-performance barrel sensor designed for industrial and hygienic applications requiring robust, reliable object detection. It features a corrosion-resistant stainless steel housing (1.4404 / 316L) which provides outstanding mechanical strength and resistance to acidic and alkaline cleaning substances, making it ideal for food processing and pharmaceutical sectors.
The sensor operates on an infrared light source with a detection range from 0 to 15 meters and uses a PNP output for easy electrical integration. It includes a 4-pin M12 connector and an M18 threaded mount for straightforward installation in varied environments.
The enclosure is certified to IP67, IP68, and IP69K standards, ensuring resistance against dust, water immersion, and high-pressure washdowns. Operating temperature ranges from -25°C to 55°C allow stable performance in demanding settings.
Additional features include a fast response time of 500 microseconds and compliance with EN 60947-5-2 standards. The sensor is Ecolab certified for use in food processing environments, reducing maintenance costs and false detections while increasing throughput efficiency.
High mechanical ruggedness with V4A (316L) stainless steel housing. Ecolab certification ensures suitability for hygienic applications. Wide detection range of up to 15 meters enhances flexibility. IP67, IP68 and IP69K enclosures enable washdown capability.
Quick and simple mounting via M18 thread design. Fast response time of 500 μs enables rapid object sensing. Reliable PNP output simplifies electrical integration. Suitable for food, beverage, pharmaceutical, automotive, and packaging industries.
This sensor is ideal for industrial automation, manufacturing process control, and hygienic monitoring applications. Explore the wide range of SICK Photoelectric Sensors for advanced and reliable sensing solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range extends from 0 to 15 meters using an infrared light source for accurate sensing.
It features a PNP output type, simplifying electrical integration.
This sensor is rated IP67, IP68, and IP69K, ensuring resistance against dust, water immersion, and high-pressure washdowns.
The response time is 500 microseconds, allowing for fast object detection.
It operates effectively in temperatures ranging from -25°C to 55°C, suitable for harsh industrial environments.
The housing is made of stainless steel (1.4404 / 316L), providing high mechanical ruggedness and chemical resistance.
It is designed with an M18 thread for easy mounting in various environments.
It includes a 4-pin M12 connector for straightforward electrical integration.
Yes, it is Ecolab certified for use in food processing environments, making it suitable for hygienic applications.
It complies with the EN 60947-5-2 standard, ensuring reliability in its performance.
It is suitable for applications in food and beverage, pharmaceuticals, automotive, and packaging industries.
This model uses a through beam detection type for reliable object sensing.
