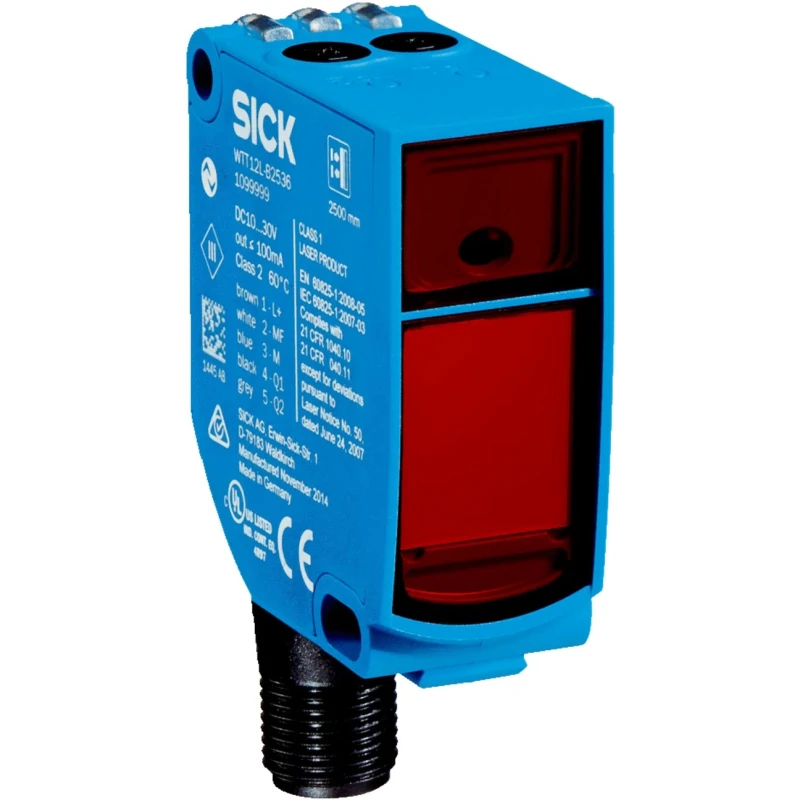

SICK Background Suppression Photoelectric Sensor Block Sensor 50 mm to 3.8 m Detection Range NPN Output IP67 WTT12L-B2566
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 5ms |
| Light Source | Red Light |
| Detection range | 50 mm → 3.8 m |
| Model | WTT12L-B2566 |
| IP Rating | IP67 |
| Housing Material | Plastic |
| Output type | NPN |
| Sensing range | 5 cm to 4 m |
| Series | PowerProx |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -35°C |
| Maximum Current | 100mA |
| Terminal type | 5-Pin Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, UL Certified |
| Materials Detected | Methyl Methacrylate, Plastic |
| Sensor Style | Block |
| Suitable for a wide range of applications | the variants of the photoelectric sensors are designed to cover a variety of detection requirements |
Key Features
- Equipped with time-of-flight technology for precise sensing.
- Laser class 1 red and infrared light source ensures safety.
- Compact block sensor design for versatile mounting.
- Operates reliably within -35°C to 50°C temperature range.
- Housing made of rugged plastic ensures durability and high availability.
- Offers switching frequencies up to 1000 Hz for rapid detection.
- Multiple output options including up to three adjustable digital outputs or an IO-Link analog output.
- CE and UL certified for international standards compliance.
Product Description
SICK WTT12L-B2566 Background Suppression Photoelectric Sensor is a high-performance block sensor designed for industrial automation applications. It uses advanced time-of-flight technology and laser class 1 red and infrared light to deliver precise and reliable object detection over a detection range from 50 mm up to 3.8 m. The NPN output and IP67-rated rugged plastic housing make this sensor suitable for use in harsh industrial environments.
The compact sensor housing provides flexibility for machine designers, allowing easy integration in various setups while maintaining high detection performance over large angles and with fast-moving, small, or shiny objects. Operating temperature spans from -35°C to 50°C, ensuring functionality across a variety of demanding conditions.
This sensor supports switching frequencies up to 1000 Hz and offers versatile output configurations, including up to three adjustable digital outputs or one IO-Link analog output, enabling up to eight switching points and smart sensor functions such as distance measurement.
The sensor is CE and UL certified, demonstrating compliance with international safety and quality standards. It is suitable for application areas such as empty bay detection, rapid counting in packaging, precision edge detection in timber, quality control in automotive manufacturing, handling and assembly, loop control, door and gate protection, and industrial vehicles including AGVs.
Time-of-flight technology for enhanced sensing accuracy and range. Laser class 1 light source ensures user safety. Compact block sensor form factor with plastic housing. Wide operating temperature range from -35°C to 50°C.
Switching frequency up to 1000 Hz for fast object detection. Multiple output options supporting advanced sensor functions. CE and UL certifications provide trusted compliance. Suitable for industrial, automotive, packaging, and material handling applications.
IP67-rated housing for protection against dust and water ingress.
Its advanced features and robust design enable it to meet diverse detection challenges in industrial automation settings. Explore similar sensors and automation components for enhanced machine performance and reliability on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor extends from 50 mm to 3.8 m.
This model features an NPN output type.
The maximum operating temperature for the WTT12L-B2566 is 50°C.
This sensor has an IP67 rating, providing protection against dust and water ingress.
It can detect materials such as methyl methacrylate and plastic.
The response time of this sensor is 5 ms.
The minimum operating temperature for the WTT12L-B2566 is -35°C.
This sensor has a maximum current rating of 100 mA.
It uses a red light source for object detection.
This model supports up to three adjustable digital outputs.
The compact block sensor design allows for versatile mounting, although specific dimensions are not provided.
This sensor is CE and UL certified, indicating compliance with international safety and quality standards.
