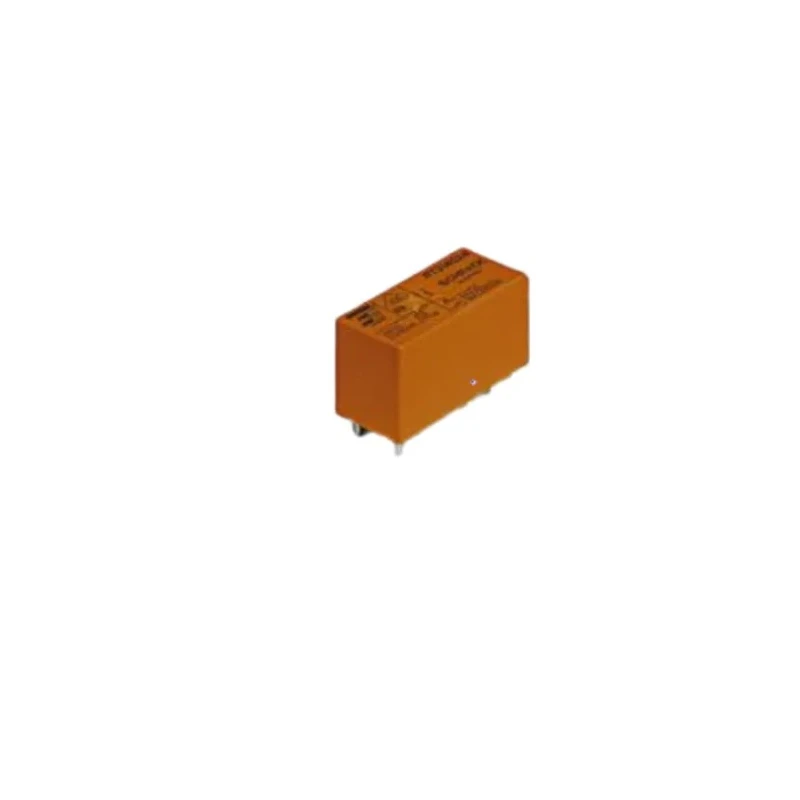

TE Connectivity PCB Power Relay Module 5V DC Coil 15A Switching Current DPDT RT424005
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424005 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | SCHRACK RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 15A |
| Terminal type | Plug-In |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 62Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 403mW |
Key Features
- Operates with a coil voltage of 5V DC for low-power control.
- Designed with a DPDT contact configuration for versatile circuit switching.
- Capable of switching currents up to 15A ensuring robust performance.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for easy PCB integration.
- Contains silver nickel alloy contacts for enhanced conductivity and durability.
- Operating temperature range from -40°C to 85°C suitable for various environments.
- Features a plug-in terminal type facilitating straightforward mounting and replacement.
- Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental assurance.
Product Description
TE Connectivity RT424005 PCB Power Relay Module is engineered for industrial and automation applications requiring reliable power switching at 5V DC coil voltage and a maximum switching current of 15A. Its DPDT contact configuration allows for double-pole double-throw switching, suitable for complex control circuits.
The relay module features a compact design with dimensions measuring 29mm in length, 12.7mm in width, and 15.7mm in height, optimizing it for PCB mounting and space-constrained assemblies. Its silver nickel alloy contacts ensure long-lasting electrical performance with minimal resistance.
Capable of operating in ambient temperatures ranging from -40°C to 85°C, this relay suits a variety of industrial environments. Plug-in terminal connections simplify installation and maintenance processes, while the coil resistance of 62Ω and coil power consumption of 403mW contribute to energy-efficient operation.
Certifications including IEC 60335-1, RoHS compliance, and VDE indicate the relay's adherence to international safety and environmental standards. The isolation characteristics, such as a minimum creepage distance of 10 mm between contact and coil, ensures operational safety and reduces the risk of electrical faults.
Typically deployed in electrical, automation, and signal conditioning systems, the RT424005 relay module offers reliable switching control for home appliances, industrial machinery, HVAC, and manufacturing equipment.
Operates with a coil voltage of 5V DC for low-power control. Designed with a DPDT contact configuration for versatile circuit switching. Capable of switching currents up to 15A ensuring robust performance. Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height for easy PCB integration.
Contains silver nickel alloy contacts for enhanced conductivity and durability. Operating temperature range from -40°C to 85°C suitable for various environments. Features a plug-in terminal type facilitating straightforward mounting and replacement.
Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental assurance. Explore a wide selection of Power Relay Modules and related components in the Electronics & Electricals category on EnvMart to suit your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay module is capable of switching currents up to 15A.
This model has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
It operates with a coil voltage of 5V DC.
The relay features a DPDT (double-pole double-throw) contact configuration.
The operating temperature range is from -40°C to 85°C.
It features plug-in terminal connections for easy mounting and replacement.
The contacts are made of silver nickel alloy, enhancing conductivity and durability.
It complies with IEC 60335-1, RoHS, and VDE standards.
The coil resistance is 62Ω.
The coil power consumption is 403mW.
It can switch AC voltages up to 400V.
The relay module is manufactured in Austria.
