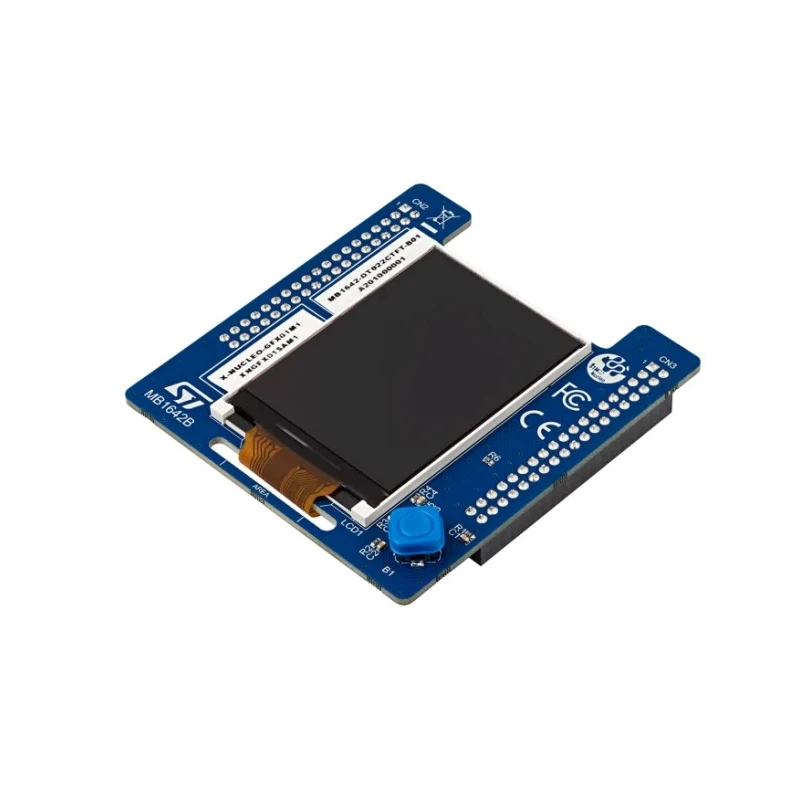

STMicroelectronics 2.2 in SPI QVGA TFT LCD Graphic User Interface Expansion Board X-NUCLEO-GFX01M2

STMicroelectronics X-NUCLEO-GFX01M2 is a 2.2 inch SPI QVGA TFT LCD expansion board developed for STM32 Nucleo-64 platforms. This display development tool enhances embedded systems with graphical user interface (GUI) functionality suitable for a wide range of applications such as industrial controls, consumer electronics, and prototyping.

The expansion board integrates a high-quality LCD display paired with a 64-Mbit SPI NOR Flash memory that stores graphic images, texts, and texture data essential for dynamic and rich user interfaces. It connects via the ST morpho connector, enabling seamless attachment to compatible Nucleo-64 boards and supporting up to two SPI communication channels, which facilitates flexible data exchange.

For user input and navigation, the board features an incorporated joystick, improving ease of control over graphical elements within embedded applications. The device is optimized for developers focusing on GUI implementations, educational projects, and rapid application development.

Its compact 2.2 inch display size and LCD technology offer clear visuals with low power consumption, making it suitable for portable and low-power embedded systems. This board is an ideal choice for those seeking to add advanced graphical interfaces to STM32 microcontroller projects.

The 2.2 inch SPI QVGA TFT LCD offers clear graphical display. Equipped with 64-Mbit SPI NOR Flash memory for storing graphics, texts, and textures. Utilizes ST morpho connector and supports up to two SPI interfaces. Includes a joystick for intuitive GUI navigation.

Compatible with STM32 Nucleo-64 development boards. Designed as an expansion board for embedded system development.
