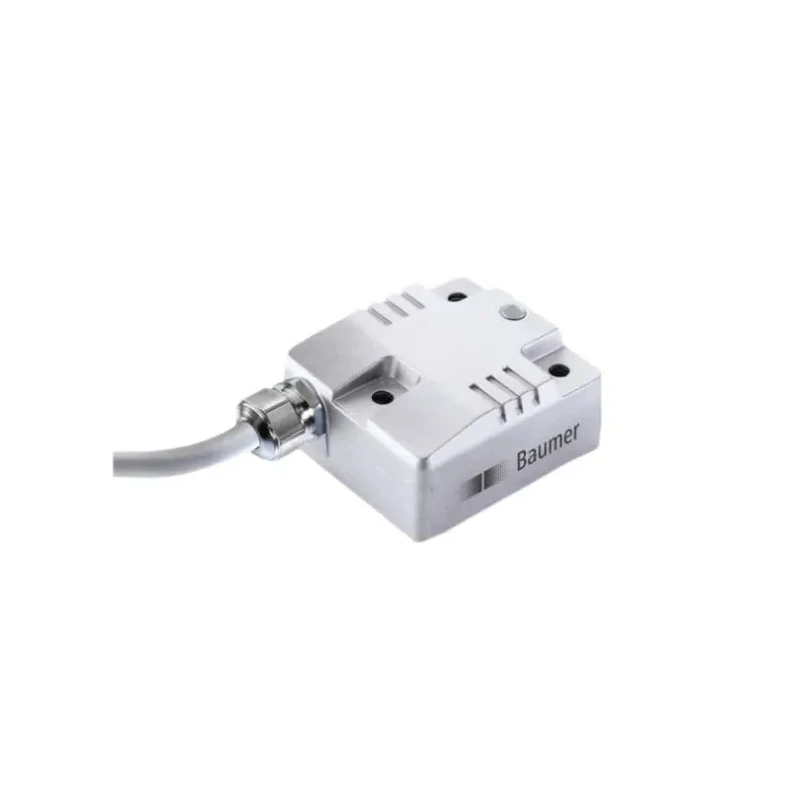

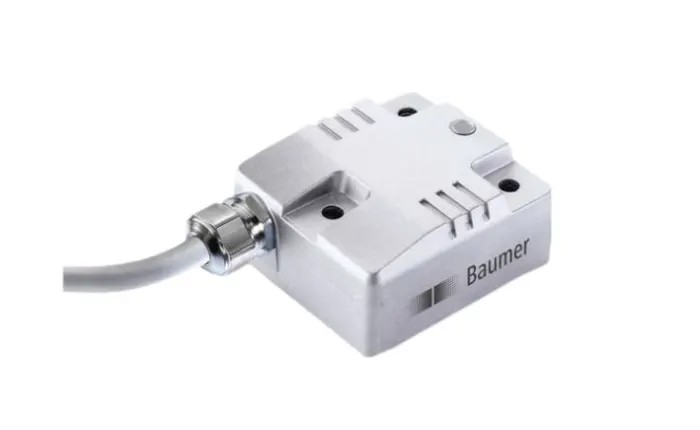

Baumer 2 Axis Sensor 8 V to 36 V Analogue CAN SAE J1939 Interface 8-Pin GIM500R-M260.FC4.A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Response time | 0.5s |
| Height | 24mm |
| Length | 52mm |
| Model | GIM500R-M260.FC4.A |
| Technology | Analogue |
| Width | 48mm |
| Series | GIM500R |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of axis | 2 |
| Interface Type | Analogue, CAN, SAE J1939 |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 8V |
| Supply Current | 40mA |
| Baumer GIM140R-M260.KC0.A 2 Axis Inclination Sensor, IP69K, IP67, AnalogueBrand | Baumer |
Key Features
- Utilizes MEMS capacitive measuring principle for high accuracy.
- Robust metal housing provides protection and durability.
- Measures inclination with a ±90° range for 2-dimensional sensing.
- Features 8-pin M12 connector with integrated 1 meter cable for easy installation.
- Wide operating temperature range from -40°C to +85°C ensures reliable performance.
- Meets multiple standards including E1 design, EN 60529, and ISO 7637-2 for environmental and electrical robustness.
- Sensing rate of 1600 Hz enables rapid and precise motion detection.
- Supply current is a modest 40 mA facilitating energy-efficient operation.
Product Description
Baumer GIM500R-M260.FC4.A is a high-performance 2-axis inclination sensor designed for industrial and automotive applications requiring precise angle measurement and robust operation.
This sensor operates with an analogue output and supports CAN SAE J1939 interface, making it suitable for integrated control systems and vehicular communication networks. The sensor employs a MEMS capacitive measuring principle offering reliable and stable 2-dimensional inclination sensing within a ±90° measurement range.
Its metal housing ensures ruggedness and long-term durability in challenging conditions. The device includes an 8-pin M12 connector paired with a 1-meter cable to facilitate straightforward integration into existing setups.
Operating temperatures range from -40°C to +85°C, making it dependable across diverse industrial environments. Protection rating IP69K safeguards the sensor against dust ingress and high-pressure water jets, further supporting its suitability for harsh settings.
The GIM500R series sensor achieves a rapid sensing rate of 1600 Hz, providing fast response times essential for dynamic systems. The supply current is low at 40 mA, contributing to energy-efficient system designs.
MEMS capacitive sensor technology. Analogue output with CAN SAE J1939 communication interface. Measurement range ±90° for two axes. Metal housing with IP69K protection. 8-pin M12 connector with 1 meter cable. Operating temperature range from -40°C to +85°C.
Sensing rate: 1600 Hz with 0.5 seconds response time. Compliance with E1 design, EN 60529, ISO 7637-2 and other industrial standards. Supply current of 40 mA. Manufactured in Germany.
This sensor is ideal for industrial automation, automotive systems, motion control, and other applications requiring reliable multi-axis angle measurement under demanding environmental conditions.
Discover a range of precision Sensors with Baumer and other leading brands at EnvMart, your destination for industrial-grade electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor measures inclination within a ±90° range for two-dimensional sensing.
It provides an analogue output and supports a CAN SAE J1939 interface for communication.
The sensor operates within a supply voltage range of 8V to 36V.
The sensing rate is 1600 Hz, allowing for rapid and precise motion detection.
The sensor has dimensions of 52mm in length, 48mm in width, and 24mm in height.
It operates effectively within a temperature range of -40°C to +85°C.
It features an 8-pin M12 connector with an integrated 1 meter cable for easy installation.
The sensor has an IP69K protection rating, safeguarding it against dust and high-pressure water jets.
The response time of this sensor is 0.5 seconds, enabling quick reactions to changes in inclination.
It meets multiple standards including E1 design, EN 60529, and ISO 7637-2 for environmental and electrical robustness.
The supply current for this model is 40 mA, contributing to energy-efficient operation.
This sensor is manufactured in Germany, ensuring adherence to high standards of quality.
