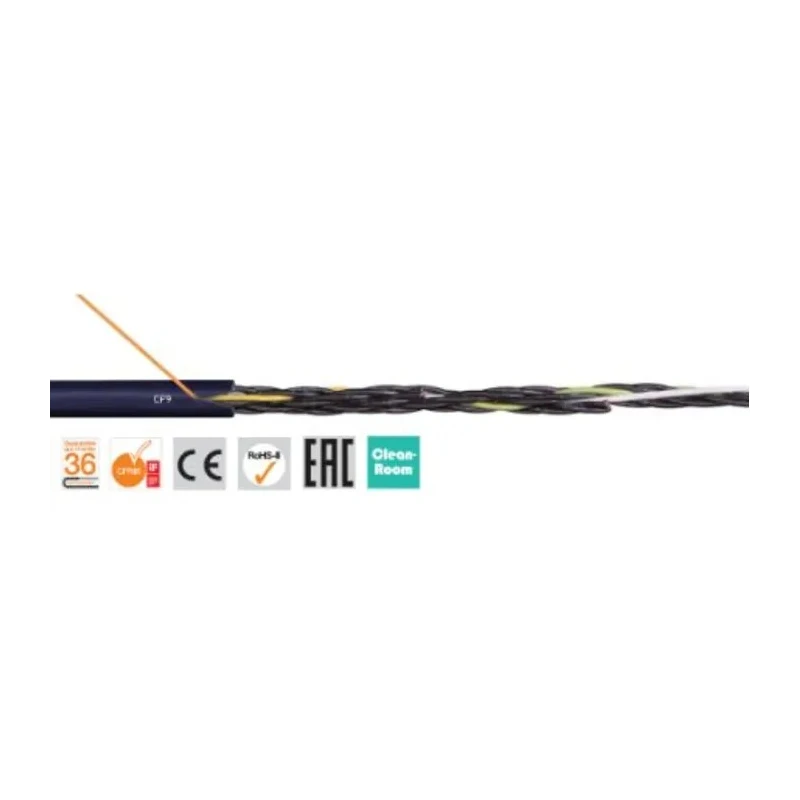

Igus chainflex CF9 Control Cable, 3 Cores, 1mm², Unscreened, 10 m, Blue Thermoplastic Elastomer Sheath CF9.10.03 (10m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF9.10.03 (10m) |
| Cable Length | 10m |
| Series | chainflex CF9 |
| Outside diameter | 6mm |
| Maximum Operating Temperature | 100°C |
| Number Of Cores | 3 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -55°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Blue |
| Fire Behaviour | Halogen Free |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1mm² |
Key Features
- This cable is rated for 300V and 500V applications.
- It is constructed with bare copper stranded conductors for excellent conductivity.
- The jacket material is abrasion-resistant thermoplastic elastomer, suitable for harsh chemical and oil environments.
- The cable length is 10 meters with a 6mm outside diameter.
- Designed for dynamic use in cable carriers (echains) with a small bending radius and long service life.
- Operating temperature range is from -55°C up to 100°C.
- It is halogen-free, silicone-free, and ROHS-II compliant, supporting clean room applications.
- The cable is oil and bio-oil resistant, meeting DIN EN 60811-404 and VDMA 24568 standards.
Product Description
Igus CF9.10.03 (10m) Control Cable is a high-performance industrial control cable designed for demanding environments. The 3-core, 1mm² unscreened cable features a durable blue thermoplastic elastomer sheath that provides exceptional abrasion resistance and chemical protection.

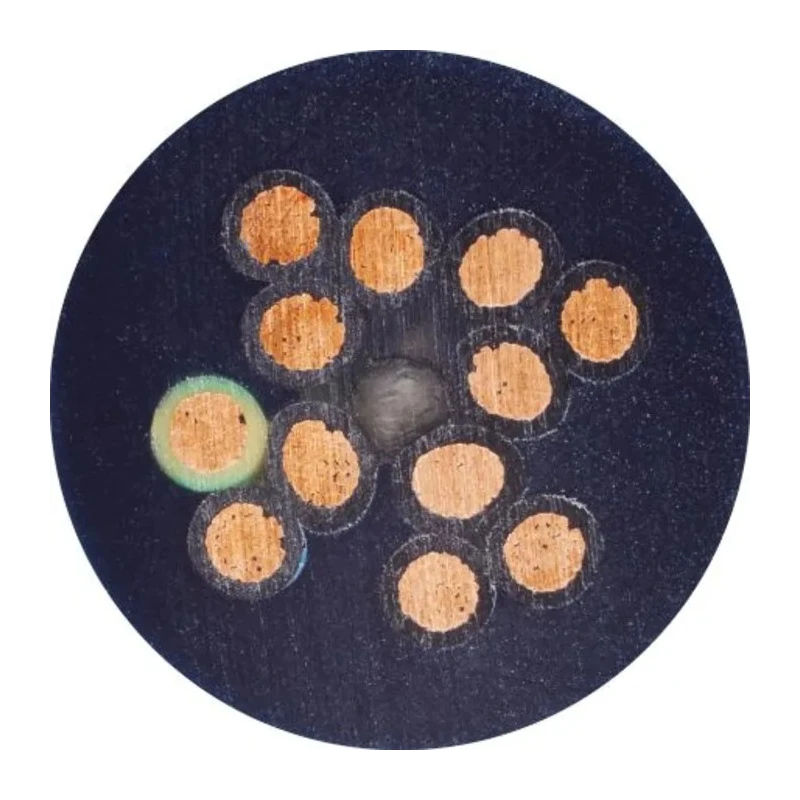

With a small bend radius enabled by its patented bundled core design, this cable ensures flexibility and long life in dynamic applications such as cable carriers (echains) and machinery movement. Rated for voltages of 300V and 500V, it suits a wide range of control system requirements.
The cable is built with stranded bare copper conductors, optimizing conductivity and mechanical durability. Its outside diameter is 6mm, with a length of 10 meters, making it ideal for installations with space constraints.
Operating temperature ranges from -55°C to 100°C allow use in extreme conditions including low temperature environments. The cable is halogen-free and silicone-free, suitable for clean room environments compliant with ISO Class 1 standards. It also offers high resistance to oils, bio-oils, and chemicals according to DIN EN 60811-404 and VDMA 24568.
This Control Cable is suited for use in industrial automation, manufacturing, outdoor cranes, semiconductor handling, storage and retrieval units, and hygienic clean rooms. It carries CE and EN approvals and is manufactured in Germany to rigorous quality standards.
This cable supports a guaranteed service life under continuous flexing conditions in cable chains. It features oil-resistant Class 4 protection and low crossover electrical interference due to unscreened design optimized for many control applications.
Ideal for both fixed and flexible installations where EMC/EMI is not critical. Its robust build and temperature ratings minimize unplanned downtime in industrial settings. Explore our range of industrial-grade cables and control solutions on EnvMart for reliable electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 300V and 500V applications, making it suitable for various control system requirements.
The maximum operating temperature for this cable is 100°C, allowing it to function effectively in high-temperature environments.
The cable features 3 cores, providing multiple pathways for electrical signals.
The outside diameter of this control cable is 6mm, which is designed to fit in tight spaces.
It is constructed with bare copper stranded conductors for excellent conductivity and has a jacket made of thermoplastic elastomer for abrasion resistance.
Yes, it is halogen-free, silicone-free, and compliant with ISO Class 1 standards, making it suitable for clean room environments.
The cable operates effectively in temperatures ranging from -55°C to 100°C, suitable for extreme conditions.
This control cable meets CE and EN standards, ensuring it adheres to specific safety and performance criteria.
It is suited for industrial automation, manufacturing, outdoor cranes, semiconductor handling, and hygienic clean rooms.
Yes, it is resistant to oils and bio-oils, meeting DIN EN 60811-404 and VDMA 24568 standards for chemical protection.
The length of this cable is 10 meters, making it suitable for various installation needs.
This model is unscreened, which helps minimize crossover electrical interference in many control applications.
