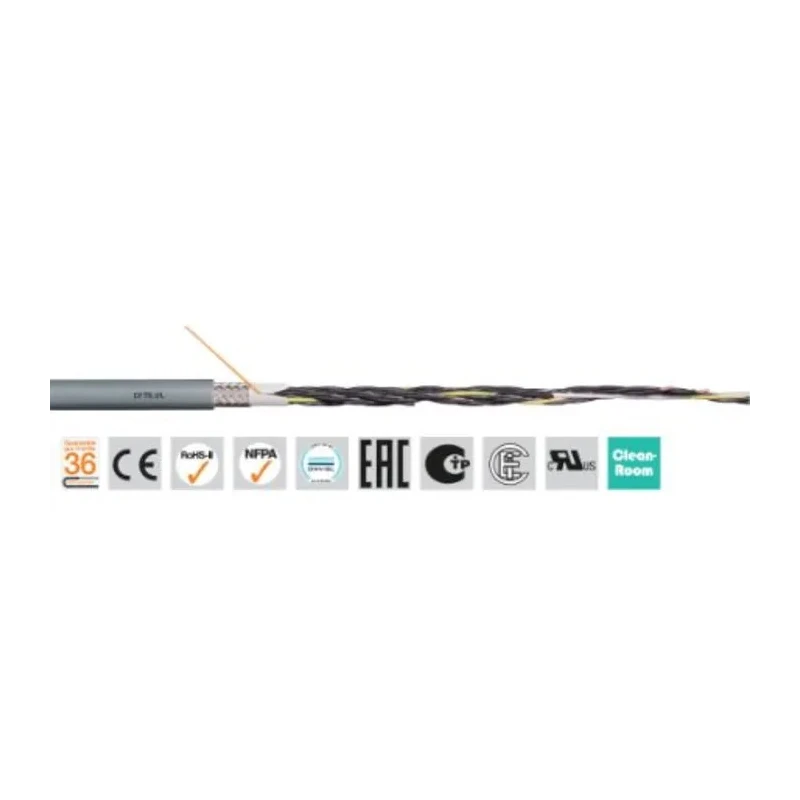

Igus chainflex CF78.UL Control Cable, 4 Cores, 0.5mm² 20 AWG, Screened, Flame Retardant, Halogen Free CF78.UL.05.04 (50m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF78.UL.05.04 (50m) |
| Cable Length | 50m |
| Series | chainflex CF78.UL |
| Outside diameter | 8mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 4 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant, Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
Key Features
- Flame retardant and halogen-free for enhanced safety.
- Armoured cable suitable for demanding industrial applications.
- Operating voltage rating of 300 to 500 volts.
- Designed for continuous flexing and e-chain use with a small bend radius.
- Wide operating temperature range from -50°C to +80°C.
- High abrasion and oil resistance with TPE jacket material.
- Complies with CE and EN standards for industrial cables.
- Suitable for indoor and outdoor applications including machine tools and packaging industry.
Product Description
Igus CF78.UL.05.04 (50m) control cable is a high-performance industrial cable designed with a 4-core configuration of 0.5mm² (20 AWG) stranded copper conductors. It features a screened construction with a grey thermoplastic elastomer (TPE) sheath that provides excellent abrasion resistance and durability under harsh chemical and oil environments.
This cable is armoured for added mechanical protection and rated for operating voltages of 300 to 500 volts. It supports a wide temperature range from -50°C minimum to +80°C maximum, making it suitable for demanding industrial applications where temperature extremes are encountered.
The patented bundled core design enables a small bend radius, ideal for installation in e-chain systems and flexible use cases requiring long travel lengths up to 400m. Its oil-resistant Class 4 jacket ensures near unlimited resistance to oil and bio-oils, compliant with DIN EN 50363-4-1.
Igus CF78.UL cables are flame retardant according to IEC 60332-1-2, CEI 20-35, FT1, VW1 standards and halogen-free following DIN EN 60754. They are also silicone-free as per PV 3.10.7, UL/CSA styles 11323 and 21223, and conform to NFPA 79-2018 for industrial safety.
Typical applications include machining units, machine tools, storage and retrieval units, high-bay warehousing, packaging industry, quick handling systems, and refrigeration sectors. The cable’s medium UV resistance and reliable screening make it suitable for both indoor and outdoor environments with EMC/EMI interference protection.
Flame retardant and halogen-free safety features. High abrasion and oil resistance TPE sheath. Flexible design with patented bundled cores for small bend radius. Armoured for extra mechanical protection. Wide operating temperature range for harsh environments.
Compliant with multiple international industrial and safety standards. Suitable for dynamic and fixed control cable applications. Length of 50 meters with 8mm outside diameter.
Explore Igus cables for robust, long-lasting industrial wiring solutions. Browse the Control Cable category at EnvMart for comprehensive options tailored to varied industrial, manufacturing, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus CF78.UL control cable is rated for operating voltages of 300 to 500 volts.
This model can operate within a temperature range of -50°C to +80°C.
It features a 4-core configuration.
The outside diameter of the cable is 8mm.
The cable is made with stranded copper conductors and has a grey thermoplastic elastomer (TPE) jacket.
Yes, it is suitable for both indoor and outdoor applications due to its medium UV resistance and reliable screening.
It complies with CE and EN standards, and is flame retardant and halogen-free according to IEC 60332-1-2 and other standards.
The cable has a thermoplastic elastomer (TPE) jacket that provides high abrasion and oil resistance.
The conductors are 0.5mm², equivalent to 20 AWG.
Typical applications include machining units, machine tools, storage and retrieval units, and the packaging industry.
Yes, it has a patented bundled core design that enables a small bend radius, making it suitable for e-chain systems.
The cable is manufactured in Germany.
